- VK10FW (RS VIKING PROFESSIONAL) 8JE50 2015
TRACK SUSPENSION 1

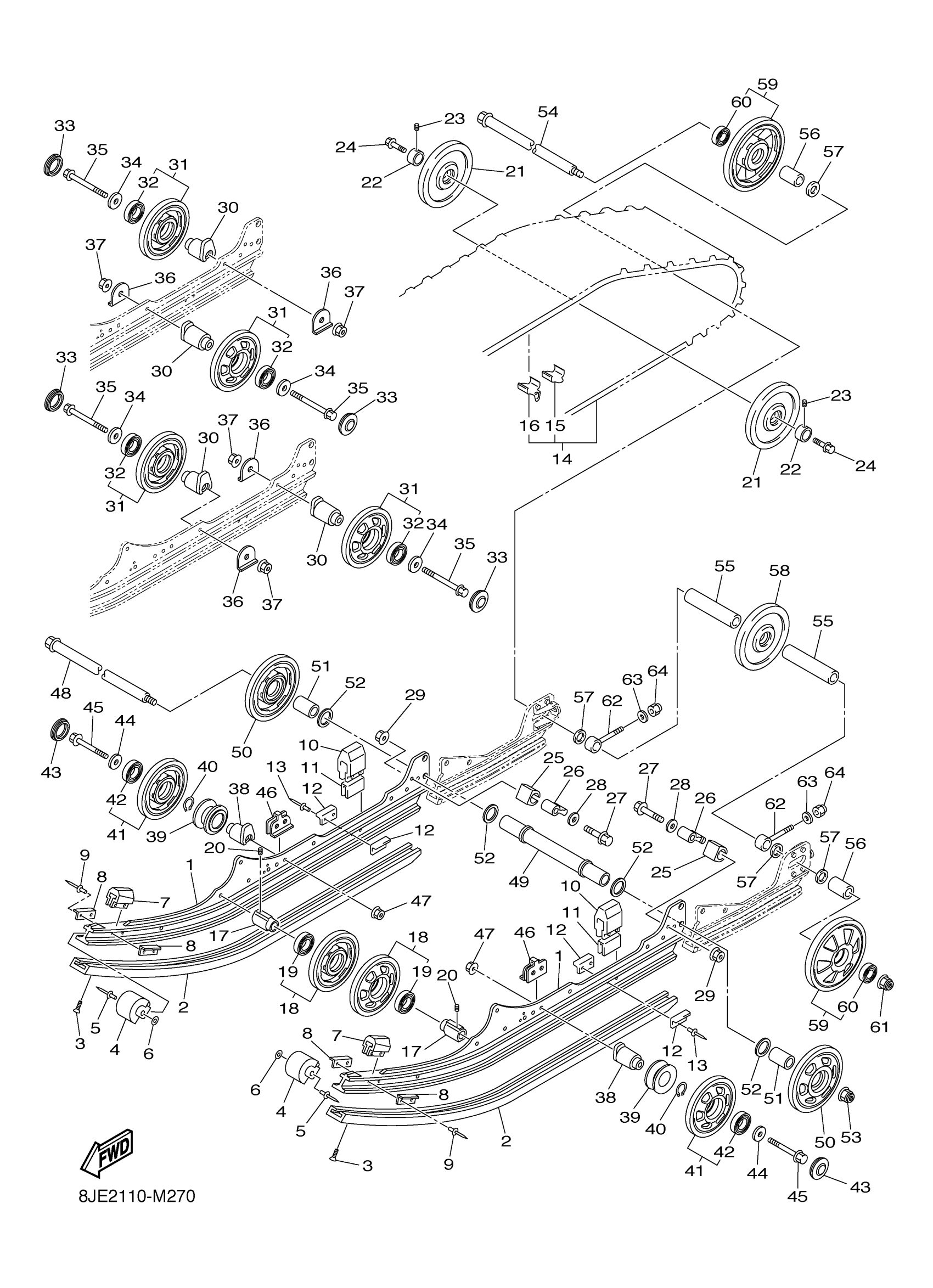

Yamaha VK10FW (RS VIKING PROFESSIONAL) 8JE50 2015 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8JE-4741A-00-00
Unavailable
2
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
5
RIVET BLIND
90267-48194-00
$3.28
6
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
7
DAMPER 1
8ES-47456-00-00
$6.99
8
PLATE, DAMPER
8K2-47458-01-00
$4.77
9
RIVET, BLIND
90267-48199-00
$3.76
10
DAMPER 2
8AC-47457-00-00
$18.49
11
SPACER
8AC-47341-00-00
$40.99
12
PLATE, DAMPER
8AX-47458-00-00
$10.99
13
RIVET, BLIND
90267-48199-00
$3.76
14
TRACK ASSY
8JD-47110-01-00
Unavailable
15
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
16
METAL, SLIDE
8HR-47115-09-00
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
22
COLLAR 1
8JD-47365-00-00
Unavailable
23
BOLT, SET (8K2)
90113-06039-00
Unavailable
24
BOLT
90109-10032-00
Unavailable
25
STOPPER 2
8GC-47496-00-00
Unavailable
26
COLLAR
8GN-47338-00-00
Unavailable
27
BOLT, FLANGE(8AB)
95817-10050-00
Unavailable
28
WASHER, PLATE
90201-10061-00
Unavailable
29
NUT, S/L FLANGE
95602-10200-00
Unavailable
30
BRACKET 7
8ES-47419-00-00
Unavailable
31
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
32
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
33
CAP, WHEEL
8HF-47317-00-00
Unavailable
34
WASHER, PLATE
90201-10038-00
Unavailable
35
BOLT, FLANGE
95812-10080-00
Unavailable
36
WASHER, CLAW
90214-10003-00
Unavailable
37
NUT, S/L FLANGE
95602-10200-00
Unavailable
38
BRACKET 7
8ES-47419-10-00
Unavailable
39
HOOK 1
8ET-47446-00-00
Unavailable
40
CIRCLIP(6U2)
93410-35M10-00
Unavailable
41
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
42
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
43
CAP, WHEEL
8HF-47317-00-00
Unavailable
44
WASHER, PLATE
90201-10038-00
Unavailable
45
BOLT, FLANGE
95812-10080-00
Unavailable
46
WASHER
8HP-47384-00-00
Unavailable
47
NUT, S/L FLANGE
95602-10200-00
Unavailable
48
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
49
COLLAR 1
83R-47469-10-00
Unavailable
50
SUSPENSION WHEEL ASSY
8HP-47310-10-00
Unavailable
51
COLLAR
90387-20022-00
Unavailable
52
WASHER, PLATE
90201-20022-00
Unavailable
53
NUT, U FLANGE
95602-14200-00
Unavailable
54
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
55
COLLAR
90387-20023-00
Unavailable
56
COLLAR
90387-20022-00
Unavailable
57
WASHER, PLATE
90201-20022-00
Unavailable
58
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
59
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
60
BEARING(8AB)
93306-00444-00
Unavailable
61
NUT, U FLANGE
95602-14200-00
Unavailable
62
COLLAR 3
8DM-47479-00-00
Unavailable
63
WASHER, PLATE
92990-10600-00
Unavailable
64
NUT, NYLON
95707-10300-00
Unavailable
