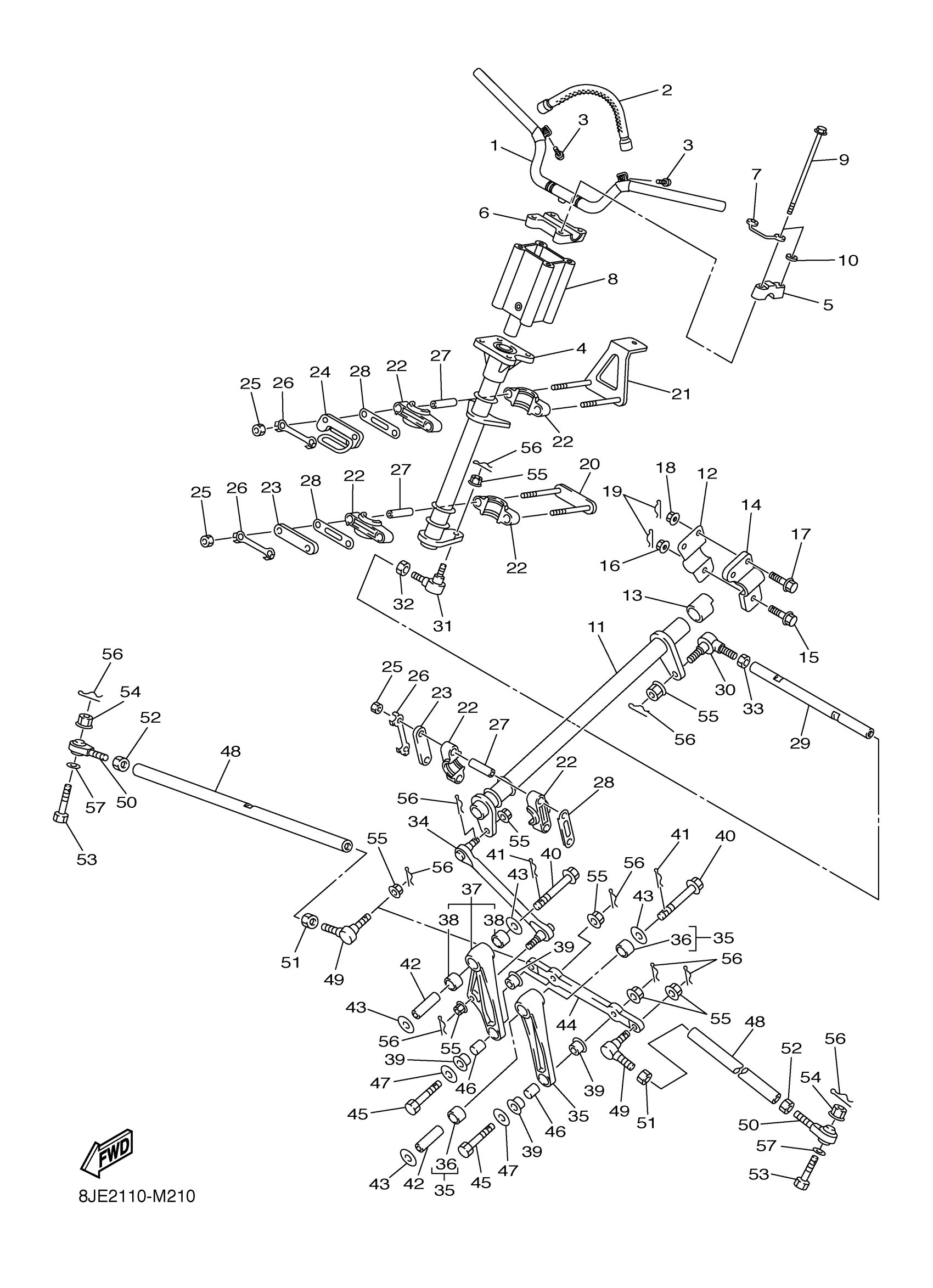

Yamaha VK10FW (RS VIKING PROFESSIONAL) 8JE50 2015 STEERING Diagram
#
1
HANDLE COMP.
8FN-26110-10-00
Unavailable
2
STRAP, STRG
8FS-23829-00-00
Unavailable
3
BOLT, BUTTON HEAD
92014-06020-00
$9.49
4
COLUMN, STEERING 2
8FA-23813-01-00
Unavailable
5
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
6
HOLDER, HANDLE LOWER
8ED-23442-00-00
Unavailable
7
HOLDER
8DF-23857-00-00
$63.99
8
JOINT
8FK-2381B-00-00
$155.99
9
BOLT, FLANGE
90105-08072-00
$3.61
10
WASHER, PLATE
90201-08020-00
$7.49
11
COLUMN, STEERING
8FA-23811-00-00
Unavailable
12
COVER, STEERING
8FA-23818-02-00
$8.99
13
BEARING, STEERING UPPER
8FA-23873-01-00
$6.99
14
HOLDER 2
8FN-23867-00-00
Unavailable
15
BOLT, FLANGE (2XJ)
90105-10549-00
$7.49
16
NUT, S/L FLANGE
95602-10200-00
Unavailable
17
BOLT, WASHER BASED(JA1)
90105-08552-00
Unavailable
18
NUT, SELF-LOCKING
95602-08200-00
Unavailable
19
CLIP 136253750000
90468-12006-00
Unavailable
20
HOLDER, BEARING
8FA-23872-00-00
Unavailable
21
HOLDER, BEARING
8FN-2376H-00-00
Unavailable
22
PLANE BEARING, STEERING
8FA-23812-00-00
Unavailable
23
HOLDER 2
8FA-23867-00-00
Unavailable
24
HOLDER, BEARING
8FN-23872-00-00
Unavailable
25
NUT(6L2)
95333-08600-00
Unavailable
26
WASHER, LOCK 1
1UY-23894-01-00
Unavailable
27
COLLAR
8HF-2412G-00-00
Unavailable
28
WASHER, PLAIN
8FA-23843-00-00
Unavailable
29
ROD, STEERING
8FN-23828-00-00
Unavailable
30
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
31
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
32
NUT (3WP1)
95317-10700-00
Unavailable
33
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
34
ROD, STEERING RELAY
8FA-23821-00-00
Unavailable
35
ARM PIVOT ASSY
8FN-2389K-00-00
Unavailable
36
BUSH, FORMED
90383-17001-00
Unavailable
37
PIVOT ARM ASSY 2
8FN-2389M-00-00
Unavailable
38
BEARING
93317-41785-00
Unavailable
39
BUSH, SOLID
90381-14001-00
Unavailable
40
BOLT, FLANGE
90105-12017-00
Unavailable
41
CLIP, RING
8FA-2384N-00-00
Unavailable
42
COLLAR
8FA-2412G-00-00
Unavailable
43
WASHER, PLATE
90201-121U3-00
Unavailable
44
ARM, IDLER
8FN-23826-00-00
Unavailable
45
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
46
COLLAR
90387-10070-00
Unavailable
47
WASHER PLATE (3L6)
90201-10742-00
Unavailable
48
ROD, TIE
8FN-23831-00-00
Unavailable
49
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
50
JOINT, UNIVERSAL 3
8FA-23847-00-00
Unavailable
51
NUT (3WP1)
95317-10700-00
Unavailable
52
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
53
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
54
NUT, NYLON
95707-10300-00
Unavailable
55
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
56
PIN, COTTER
91490-20025-00
Unavailable
57
WASHER PLATE (3L6)
90201-08759-00
Unavailable
