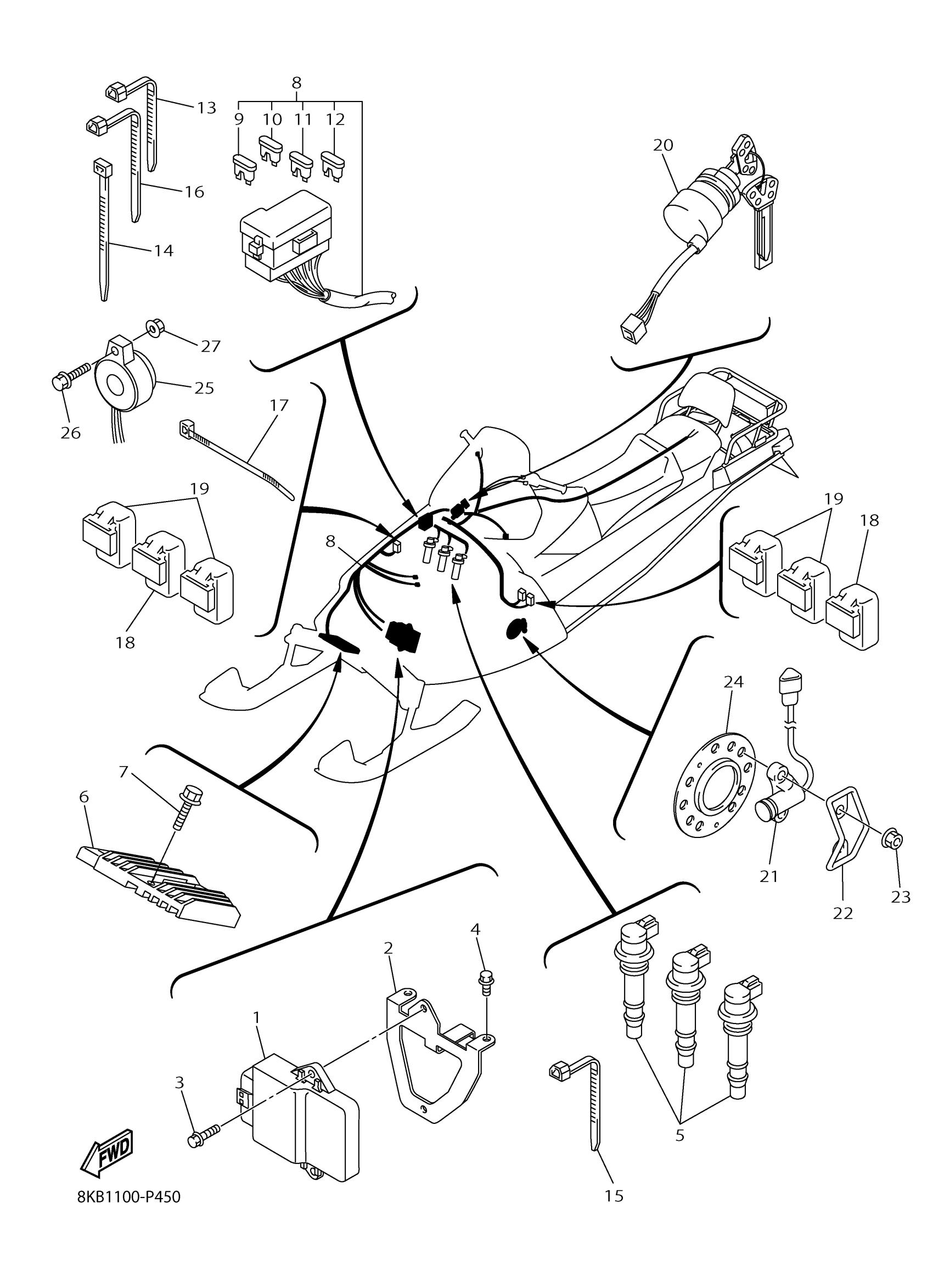

Yamaha VK10FW (RS VIKING PROFESSIONAL) 8JE50 2015 ELECTRICAL 1 Diagram
#
Description
Price
1
IGNITOR UNIT ASSY
8JE-82305-00-00
$777.99
2
BRACKET, UNIT
8ES-85991-00-00
$13.49
3
BOLT, FLANGE
95817-06016-00
$2.75
4
BOLT, FLANGE
95812-06010-00
$2.98
5
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
6
RECTIFIER & REGULATOR ASSY
5JW-81960-00-00
$373.99
7
. BOLT, FLANGE
90105-06185-00
Unavailable
8
WIRE HARNESS ASSY
8JE-82590-00-00
Unavailable
9
FUSE
5JJ-82151-20-00
$7.99
10
. FUSE (10A)
67F-82151-40-00
Unavailable
11
FUSE (15A)
67F-82151-50-00
Unavailable
12
. FUSE (3A)
67F-82151-30-00
Unavailable
13
CLAMP(4FM)
90464-15195-00
$4.41
14
CLAMP(4FM)
90464-15195-00
$4.41
15
BAND, SWITCH CORD
25G-83936-01-00
$4.78
16
CLAMP
90464-13077-00
Unavailable
17
CLAMP(3XW)
90464-35132-00
Unavailable
18
RELAY ASSY
5DM-81950-01-00
Unavailable
19
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
20
MAIN SWITCH ASSY
8HV-82510-00-00
Unavailable
21
SENSOR, SPEED
8GK-83755-12-00
Unavailable
22
COVER 2
8GC-2198G-00-00
Unavailable
23
NUT, NYLON
95717-08300-00
Unavailable
24
HOUSING, FRONT AXLE
8EK-47551-00-00
Unavailable
25
BUZZER
8GL-83383-00-00
Unavailable
26
SCREW, WITH WASHER
90159-05035-00
Unavailable
27
NUT, FLANGE
95702-05500-00
Unavailable
