Description

Price

1

HOSE, OIL 1

8KW-13464-00-00

Unavailable

2

CLIP(34X)

90467-22097-00

$9.49

3

HOSE, OIL 2

8KW-13465-00-00

Unavailable

4

SPRING, COMPRESSION

90501-080A7-00

Unavailable

5

CLIP(34X)

90467-22097-00

$9.49

6

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$43.99

7

O-RING (26H)

93210-16629-00

$7.49

8

BOLT(3MA)

91312-06016-00

$5.60

9

TANK, OIL

8HV-21751-00-00

$746.99

10

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$60.99

11

O-RING

8FP-85075-00-00

$11.49

12

OIL PIPE COMP. 2

8GL-13406-00-00

$121.99

13

O-RING

93210-24001-00

$8.49

14

BOLT(3MA)

91312-06016-00

$5.60

15

BOLT, FLANGE

95817-08012-00

$5.49

16

GASKET(3AJ)

90430-08204-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

18

WASHER, PLATE

90201-06078-00

Unavailable

19

NUT, SELF-LOCKING

95602-08200-00

Unavailable

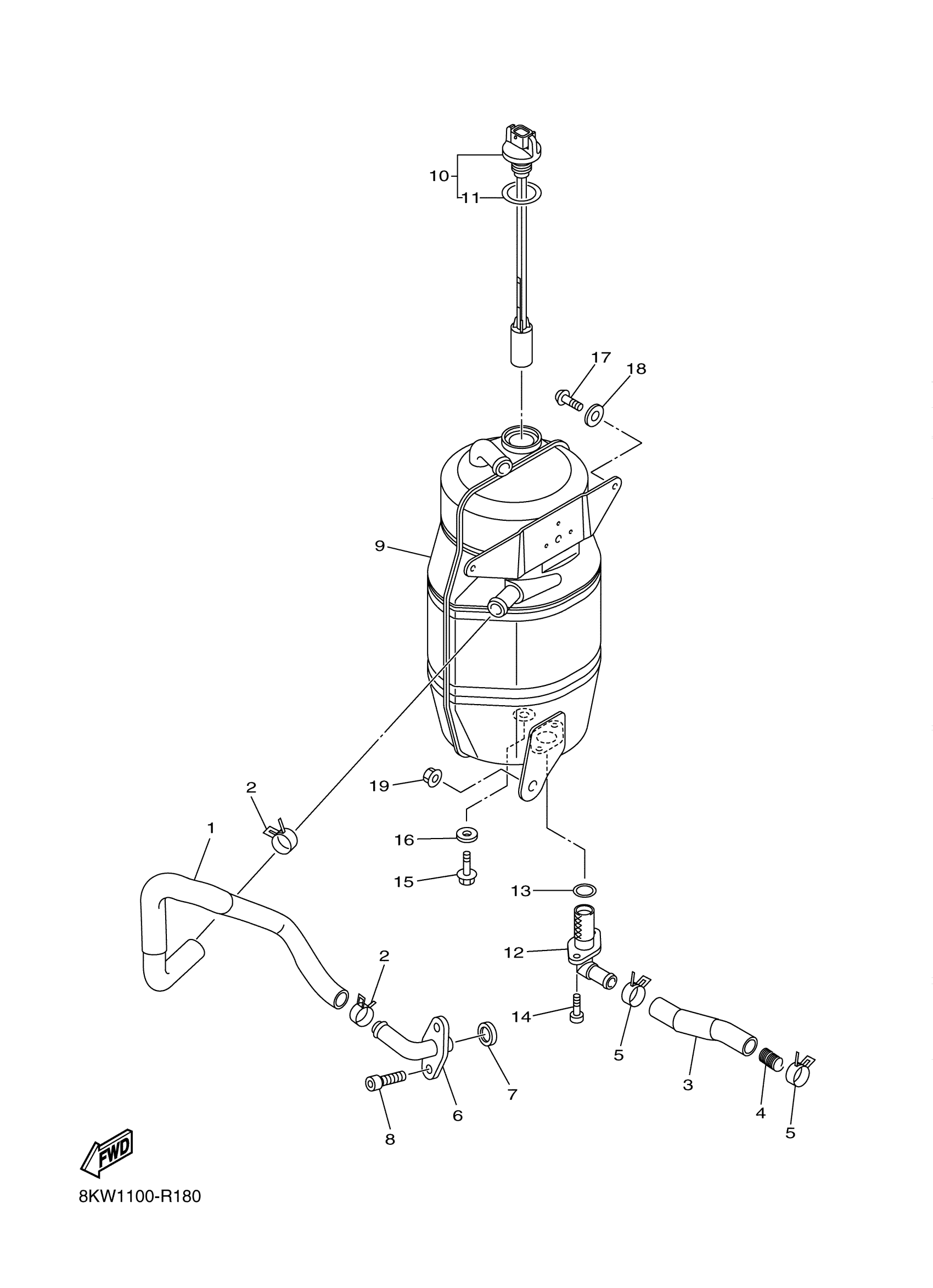

Yamaha VK10FHV (VK PROFESSIONAL II) 8KW40 2017 OIL TANK Diagram

HOSE, OIL 1

CLIP(34X)

HOSE, OIL 2

SPRING, COMPRESSION

CLIP(34X)

CONNECTOR, SUCTION PIPE

O-RING (26H)

BOLT(3MA)

TANK, OIL

OIL LEVEL GAUGE ASSY

O-RING

OIL PIPE COMP. 2

O-RING

BOLT(3MA)

BOLT, FLANGE

GASKET(3AJ)

BOLT, BUTTON HEAD

WASHER, PLATE

NUT, SELF-LOCKING
