- VK10FGV (VK PROFESSIONAL II) 8KW20 2016
TRACK DRIVE 2

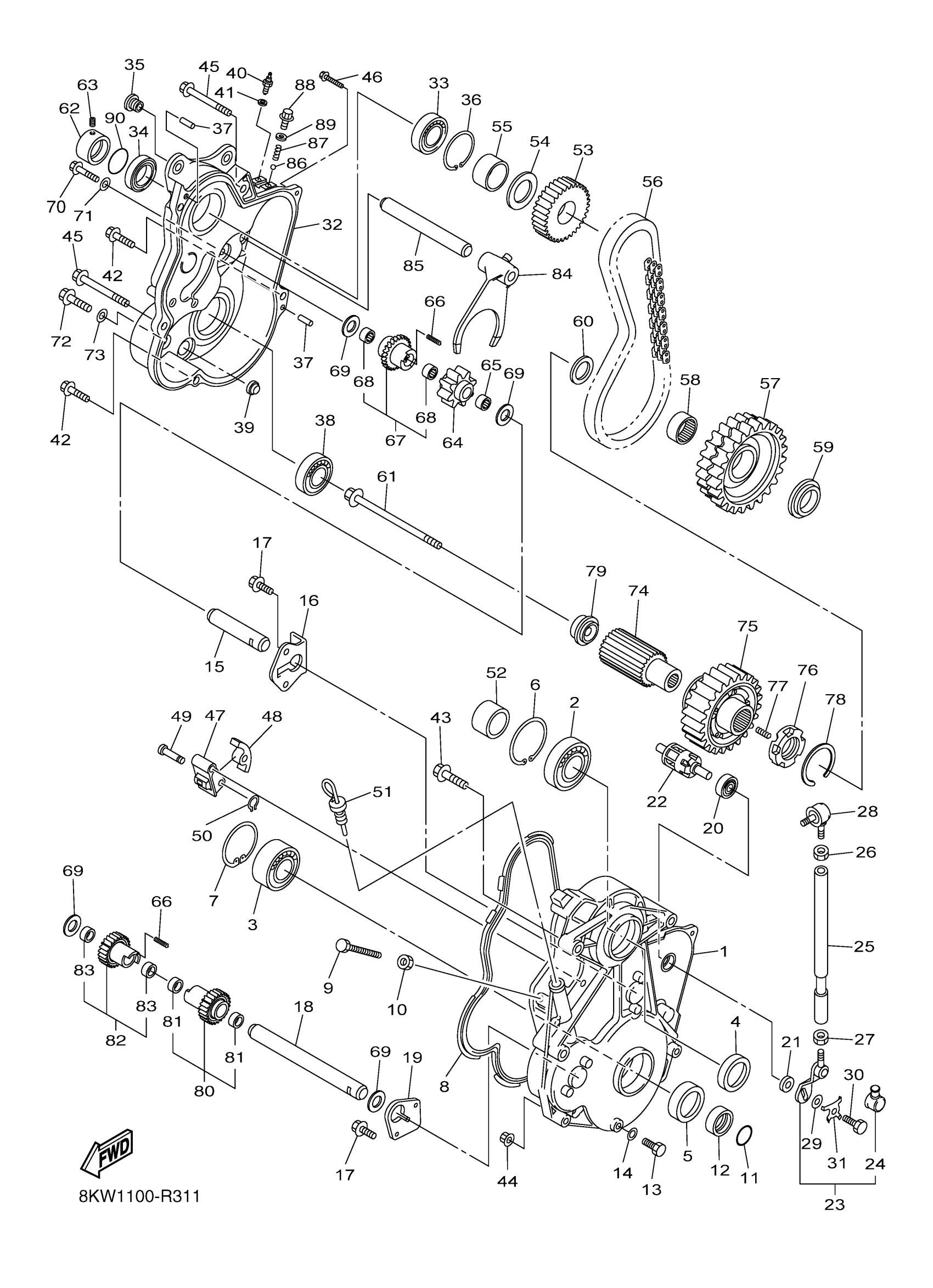

Yamaha VK10FGV (VK PROFESSIONAL II) 8KW20 2016 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8GS-47541-00-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93304-20511-00
$163.99
4
OIL SEAL
93102-30012-00
$32.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, HOUSING
8GS-47558-00-00
$63.99
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT(6TD)
95337-10600-00
$9.49
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
BOLT, HEXAGON
97017-08016-00
$8.49
14
WASHER, SEAL(8AB)
90210-08017-00
$8.49
15
SHAFT, 1
8GS-1761A-00-00
Unavailable
16
PLATE
8CW-47591-00-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
SHAFT 2
8JE-1761E-00-00
Unavailable
19
PLATE
8GS-47591-00-00
Unavailable
20
BEARING(36F)
93306-00208-00
Unavailable
21
OIL SEAL (3X3)
93102-15212-00
Unavailable
22
CAM, SHIFT
8GS-18541-01-00
Unavailable
23
LEVER
8GS-18191-00-00
Unavailable
24
COVER, DUST
2H9-18154-00-00
Unavailable
25
ROD, SHIFT
8GS-18115-00-00
Unavailable
26
NUT(1KT)
90170-08358-00
Unavailable
27
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
28
BALL, L (L.H)
3X3-18157-10-00
Unavailable
29
WASHER, PLATE
90201-06099-00
Unavailable
30
BOLT
90101-06049-00
Unavailable
31
WASHER, LOCK
8GS-47554-01-00
Unavailable
32
CAP, HOUSING
8GS-47543-10-00
Unavailable
33
BEARING
93306-20532-00
Unavailable
34
OIL SEAL
93102-35010-00
$23.99
35
NUT(8CJ)
90179-10679-00
Unavailable
36
CIRCLIP(26H)
99009-52500-00
$12.49
37
PIN, DOWEL (168)
93606-20044-00
Unavailable
38
BEARING
93306-00711-00
Unavailable
39
GAUGE, LEVEL
3Y1-15361-00-00
Unavailable
40
NEUTRAL SWITCH ASSY
5LP-82540-01-00
Unavailable
41
GASKET (1KH,1.0T)
90430-10148-00
Unavailable
42
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
43
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
44
NUT, S/L FLANGE
95602-10200-00
Unavailable
45
BOLT,FLANGE
95817-10090-00
Unavailable
46
BOLT, FLANGE
95822-06025-00
Unavailable
47
HOLDER
8HX-47613-00-00
Unavailable
48
TENSIONER
8HX-47611-00-00
Unavailable
49
PIN(86P)
90249-12216-00
Unavailable
50
CIRCLIP(10Y)
99009-12400-00
Unavailable
51
LEVEL, OIL
8GS-47546-00-00
Unavailable
52
COLLAR
90387-30005-00
Unavailable
53
SPROCKET, CHAIN DRIVE
8FA-17682-00-00
Unavailable
54
WASHER, CONICAL SPRING
90208-26002-00
Unavailable
55
COLLAR
90387-26007-00
Unavailable
56
CHAIN
94890-09068-00
Unavailable
57
SPROCKET, CHAIN DRIVEN
8KW-47587-00-00
Unavailable
58
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
59
COLLAR(8DA)
90387-2008G-00
Unavailable
60
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
61
BOLT, FLANGE
90105-10075-00
Unavailable
62
COLLAR
90387-25018-00
Unavailable
63
BOLT, SET
90113-06006-00
Unavailable
64
SPROCKET, DRIVE
8FB-17692-00-00
Unavailable
65
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
66
SPRING, COMPRESSION
90501-050A0-00
Unavailable
67
REVERSE PINION ASSY.
8JE-1714A-00-00
Unavailable
68
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
69
WASHER PLATE (3L6)
90201-16245-00
Unavailable
70
BOLT, FLANGE
95817-06016-00
Unavailable
71
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
72
BOLT, FLANGE
95812-08030-00
Unavailable
73
WASHER, SEAL(8AB)
90210-08017-00
$8.49
74
JOURNAL 1
8GS-47571-00-00
Unavailable
75
GEAR, REVERSE WHEEL 1
8JE-17243-00-00
Unavailable
76
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
77
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
78
CIRCLIP(8DA)
93440-39175-00
Unavailable
79
COLLAR
8GS-47564-00-00
Unavailable
80
1ST WHEEL GEAR ASSY
8KW-17210-00-00
Unavailable
81
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
82
1ST PINION GEAR ASSY
8JE-17110-00-00
Unavailable
83
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
84
FORK, SHIFT 1
8GS-18511-00-00
Unavailable
85
BAR, SHIFT FORK GUIDE 1
8GS-18531-00-00
Unavailable
86
BALL
93503-08007-00
Unavailable
87
SPRING, COMPRESSION (465)
90501-10353-00
Unavailable
88
BOLT, FLANGE
90105-14003-00
Unavailable
89
GASKET 256131670000
90430-14043-00
Unavailable
90
O-RING (36R)
93210-25642-00
Unavailable
