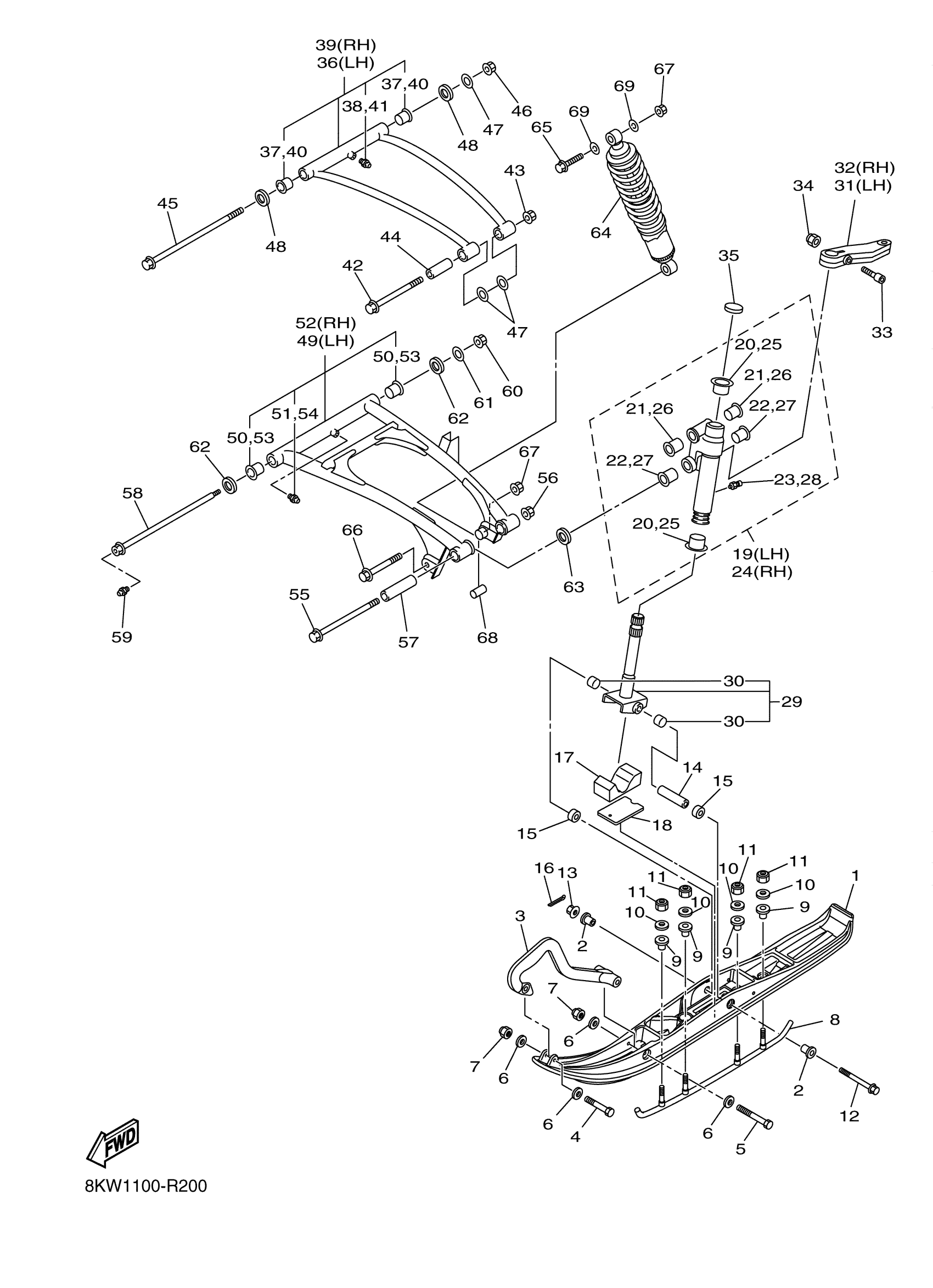

Yamaha VK10FGV (VK PROFESSIONAL II) 8KW20 2016 SKI Diagram
#
1
SKI 1
8FN-F3711-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
4
BOLT, HEXAGON
97017-08055-00
$9.49
5
BOLT, HEXAGON
97027-08100-00
$5.60
6
WASHER, PLATE (3L7)
90201-08784-00
$3.23
7
NUT, NYLON
95717-08300-00
$2.70
8
RUNNER
8EN-23731-00-XX
Unavailable
9
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
10
WASHER 2
8HG-F3738-00-00
Unavailable
11
NUT, NYLON
95717-08300-00
$2.70
12
BOLT, FLANGE
90105-10410-00
$14.99
13
NUT, S/L FLANGE
95602-10200-00
$4.82
14
COLLAR
90387-1012H-00
$24.99
15
COLLAR
90387-10029-00
Unavailable
16
PIN, COTTER
91490-20025-00
Unavailable
17
STOPPER 1
8ES-23743-00-00
Unavailable
18
STOPPER 2
8FM-23744-00-00
Unavailable
19
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-10-00
Unavailable
20
BUSH, SOLID
90381-25115-00
Unavailable
21
BUSH, SOLID
90381-15N50-00
Unavailable
22
BUSH, SOLID
90381-18N51-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-10-00
Unavailable
25
BUSH, SOLID
90381-25115-00
Unavailable
26
BUSH, SOLID
90381-15N50-00
Unavailable
27
BUSH, SOLID
90381-18N51-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
30
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
31
ARM, OUTSIDE 1
8FN-23851-00-00
Unavailable
32
ARM, OUTSIDE 2
8FN-23852-00-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
34
NUT, SELF-LOCKING
95602-08200-00
Unavailable
35
CAP, CASE
3YK-22472-40-00
Unavailable
36
FRONT UPPER ARM COMP. (LEFT)
8GS-23540-10-00
Unavailable
37
BUSH, SOLID
90381-15N50-00
Unavailable
38
NIPPLE, GREASE
93700-06M03-00
Unavailable
39
FRONT UPPER ARM COMP. (RIGHT)
8GS-23550-10-00
Unavailable
40
BUSH, SOLID
90381-15N50-00
Unavailable
41
NIPPLE, GREASE
93700-06M03-00
Unavailable
42
BOLT, FLANGE
90105-10230-00
Unavailable
43
NUT, S/L FLANGE
95602-10200-00
$4.82
44
COLLAR
90387-10099-00
Unavailable
45
BOLT
90109-10056-00
Unavailable
46
NUT, S/L FLANGE
95602-10200-00
$4.82
47
WASHER, PLATE
90201-10052-00
Unavailable
48
WASHER
90209-15N50-00
Unavailable
49
FRONT LOWER ARM COMP. (LEFT)
8GS-23570-10-00
Unavailable
50
BUSH, SOLID
90381-16N51-00
Unavailable
51
NIPPLE, GREASE
93700-06M03-00
Unavailable
52
FRONT LOWER ARM COMP. (RIGHT)
8GS-23580-10-00
Unavailable
53
BUSH, SOLID
90381-16N51-00
Unavailable
54
NIPPLE, GREASE
93700-06M03-00
Unavailable
55
BOLT, FLANGE
90105-12078-00
Unavailable
56
NUT, SELF-LOCKING
95602-12200-00
Unavailable
57
COLLAR
90387-12054-00
Unavailable
58
BOLT, UNION
90401-10045-00
Unavailable
59
NIPPLE, GREASE
93700-06M03-00
Unavailable
60
NUT, S/L FLANGE
95602-10200-00
$4.82
61
WASHER, PLATE
90201-10052-00
Unavailable
62
WASHER
90209-15N50-00
Unavailable
63
WASHER, PLATE
90201-12032-00
Unavailable
64
ABSORBER ASSY 1
8JE-2376A-00-00
Unavailable
65
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
66
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
67
NUT, S/L FLANGE
95602-10200-00
$4.82
68
COLLAR
90387-10N59-00
Unavailable
69
WASHER, PLATE
90201-10052-00
Unavailable
