Description

Price

1

EMBLEM

8FN-24897-00-00

$10.49

2

ASSIST, GRIP

8FN-2474A-00-00

Unavailable

3

ASSIST,GRIP 2

8FN-2474W-00-00

Unavailable

4

ASSIST GRIP WARMER ASSY 1

8GS-2474B-00-00

$148.99

5

COVER 1

8GJ-2842M-00-00

$20.99

6

RIVET, BLIND(8CR)

90267-47186-00

$2.97

7

BOLT, FLANGE

90105-10151-00

Unavailable

8

BRACKET, ASSIST GRIP 1

8FN-2474H-00-00

Unavailable

9

STOPPER

8FA-27114-00-00

$3.80

10

PROTECTOR,1

8FN-2476U-00-00

Unavailable

11

BOLT, FLANGE

95822-08014-00

$8.49

12

SINGLE SEAT ASSY

8KW-24710-00-00

Unavailable

13

SEAT COVER COMP.

8KW-2470F-01-00

$341.99

14

CLAMP, ROD

89A-77159-00-00

$13.49

15

TANDEM SEAT ASSY

8KW-24750-00-00

Unavailable

16

SEAT COVER COMP. ,2

8KW-2470H-00-00

Unavailable

17

SEAT BACK ASSY

8FN-24790-20-00

Unavailable

18

NUT, FLANGE

95702-06500-00

Unavailable

19

BOLT, FLANGE

90105-10151-00

Unavailable

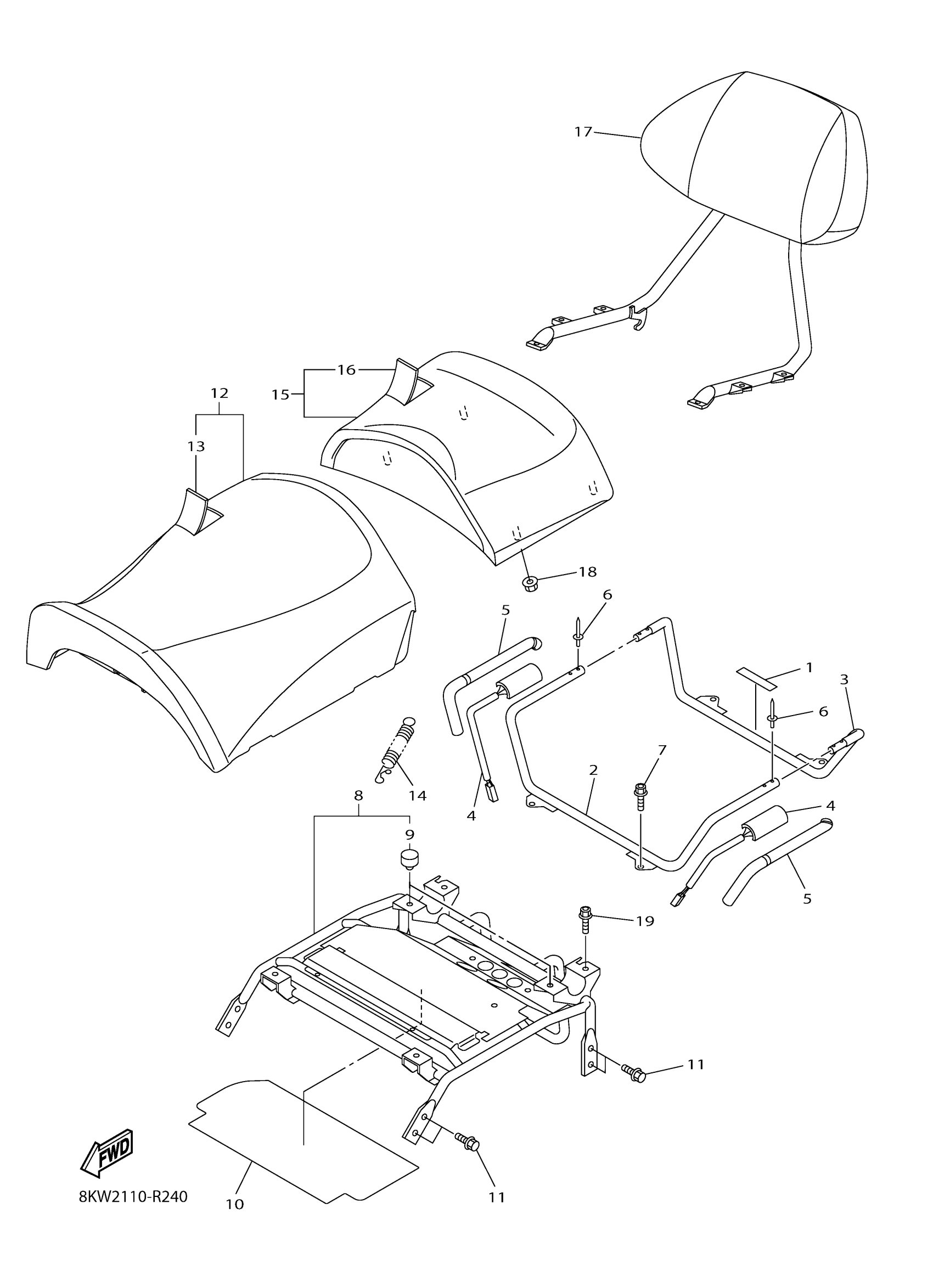

Yamaha VK10FGV (VK PROFESSIONAL II) 8KW20 2016 SEAT Diagram

EMBLEM

ASSIST, GRIP

ASSIST,GRIP 2

ASSIST GRIP WARMER ASSY 1

COVER 1

RIVET, BLIND(8CR)

BOLT, FLANGE

BRACKET, ASSIST GRIP 1

STOPPER

PROTECTOR,1

BOLT, FLANGE

SINGLE SEAT ASSY

SEAT COVER COMP.

CLAMP, ROD

TANDEM SEAT ASSY

SEAT COVER COMP. ,2

SEAT BACK ASSY

NUT, FLANGE

BOLT, FLANGE
