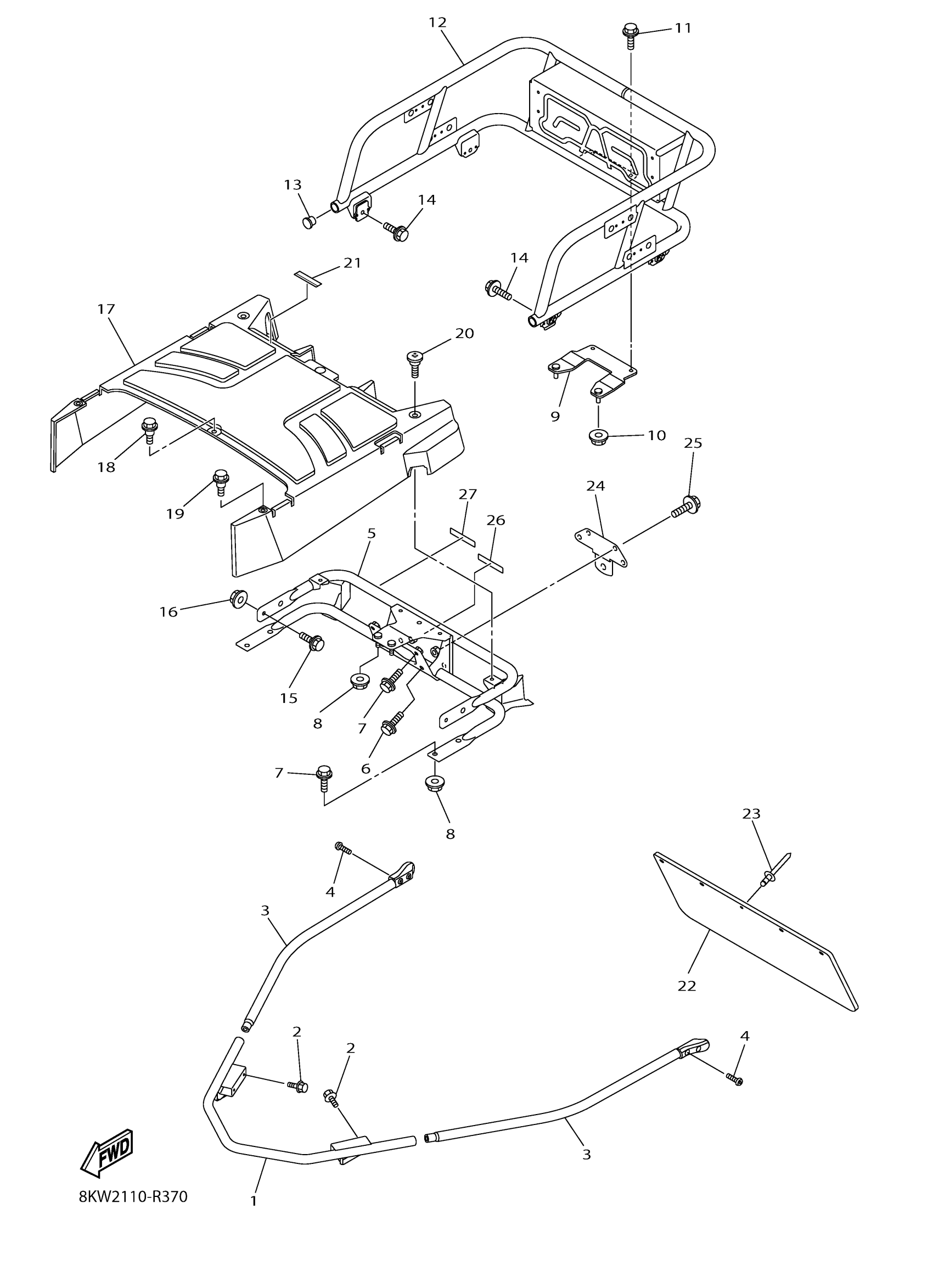

Yamaha VK10FGV (VK PROFESSIONAL II) 8KW20 2016 BUMPER Diagram
#
Description
Price
1
BUMPER, FRONT 1
8KW-77511-00-00
Unavailable
2
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
3
BUMPER, FRONT 3
8KW-77513-00-00
$177.99
4
BOLT (3XF1)
90110-08220-00
$7.49
5
BUMPER, REAR 1
8FN-77541-00-00
$435.99
6
BOLT, FLANGE
95817-10020-00
$8.49
7
BOLT, FLANGE
95814-08016-00
$9.49
8
NUT,FLANGE(J10)
95702-08500-00
$1.43
9
BRACKET, FRONT
8KB-77531-00-00
Unavailable
10
NUT,FLANGE(J10)
95702-08500-00
$1.43
11
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
12
REAR BUMPER COMP.
8KW-77540-00-00
Unavailable
13
PLUG (5R2)
90338-18122-00
$8.49
14
BOLT, FLANGE
95817-10020-00
$8.49
15
BOLT, FLANGE
95817-06014-00
Unavailable
16
NUT, FLANGE
95702-06500-00
Unavailable
17
PROTECTOR 1
8FN-77551-00-00
Unavailable
18
BOLT
90109-06272-00
Unavailable
19
BOLT(3KJ)
90109-063F1-00
Unavailable
20
SCREW(2XF)
90149-06263-00
Unavailable
21
EMBLEM
8FM-24897-01-00
Unavailable
22
FLAP
83R-77595-00-00
Unavailable
23
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
24
BRACKET, HITCH 2
84R-77592-00-00
Unavailable
25
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
26
LABEL, PULLING LOAD LIMIT
8GS-2817S-E0-00
Unavailable
27
LABEL, WARNING 5
8JT-77765-E0-00
Unavailable
