- VK10EW (RS VIKING PROFESSIONAL) 8JE40 2014
TRACK SUSPENSION 3

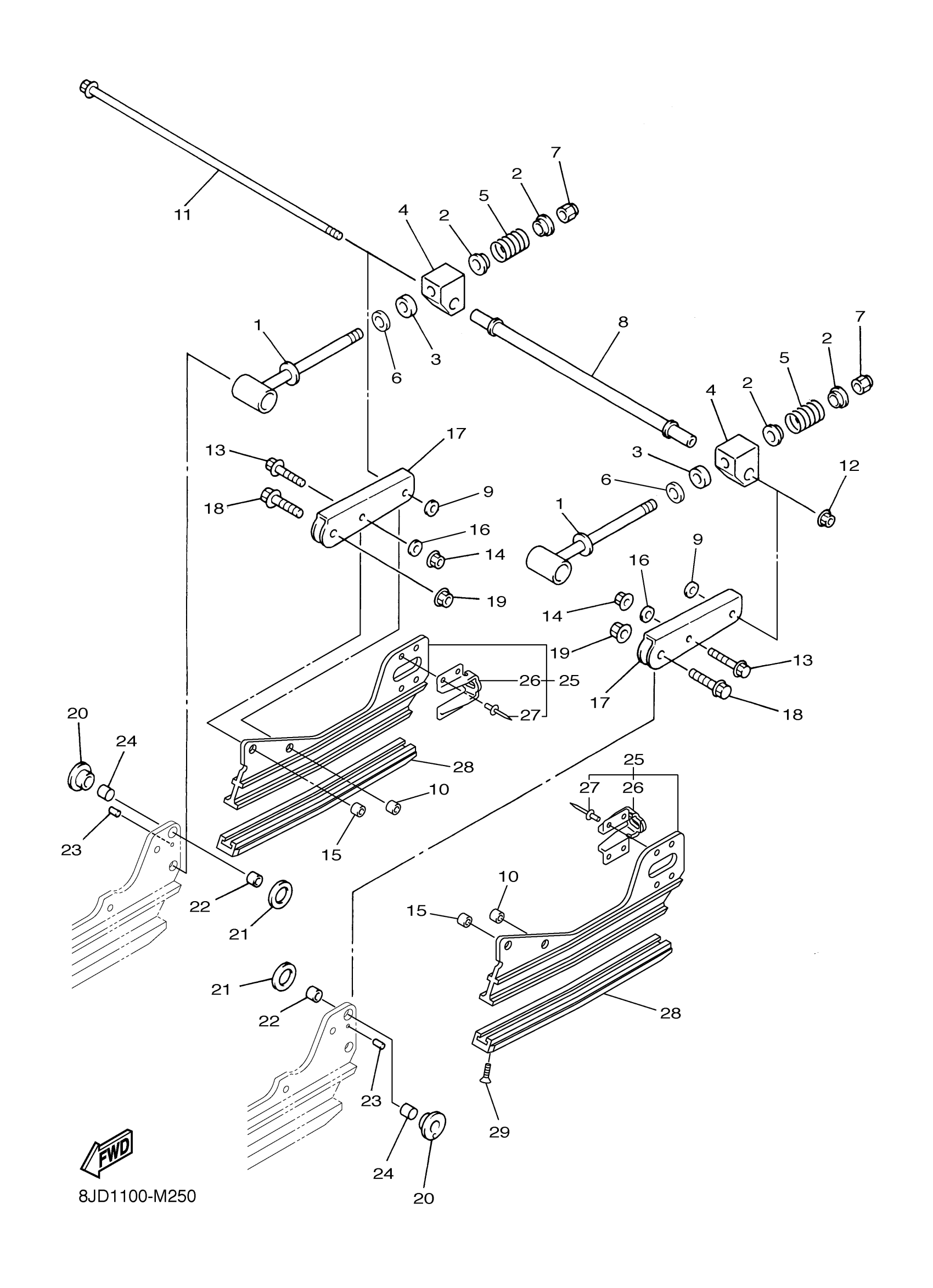

Yamaha VK10EW (RS VIKING PROFESSIONAL) 8JE40 2014 TRACK SUSPENSION 3 Diagram
#
Description
Price
1
SHAFT, PIVOT
83R-47337-10-00
Unavailable
2
SEAT, SPRING 1
83R-23768-00-00
$5.49
3
SPRING
83R-47335-00-00
Unavailable
4
HOOK 1
83R-47446-00-00
$25.99
5
SPRING, COMPRESSION(83R)
90501-407E4-00
$10.49
6
WASHER (856)
90201-12317-00
Unavailable
7
NUT, NYLON(663)
90185-12058-00
$20.99
8
COLLAR 2
8AC-47478-10-00
Unavailable
9
WASHER (1T1)
90201-08649-00
$9.49
10
COLLAR(3BN)
90387-082J1-00
$3.35
11
BOLT, WASHER BASED(83R)
90105-08483-00
$13.99
12
NUT, SELF-LOCKING
95602-08200-00
$3.20
13
BOLT, FLANGE
95817-08035-00
$9.49
14
NUT, SELF-LOCKING
95602-08200-00
$3.20
15
COLLAR(3BN)
90387-082J1-00
$3.35
16
WASHER (1T1)
90201-08649-00
$9.49
17
ARM, PIVOT 3
8FM-47333-10-00
Unavailable
18
BOLT, FLANGE
95817-10030-00
Unavailable
19
NUT, SELF-LOCKING
90185-10019-00
Unavailable
20
COLLAR
90387-1815A-00
Unavailable
21
WASHER, PLATE
90202-22238-00
Unavailable
22
COLLAR
90387-1014Y-00
Unavailable
23
PIN. SPRING(656)
91690-30008-00
Unavailable
24
BUSH, SOLID (22W)
90380-16109-00
Unavailable
25
FRAME, SLIDING
8FM-W4741-10-00
Unavailable
26
BRACKET
8DM-4741B-00-00
Unavailable
27
RIVET
8V0-47468-00-00
Unavailable
28
RUNNER,SLIDING 4
8FM-47424-00-XX
Unavailable
29
SCREW, CROSSRECESS (8G6)
90151-06005-00
Unavailable
