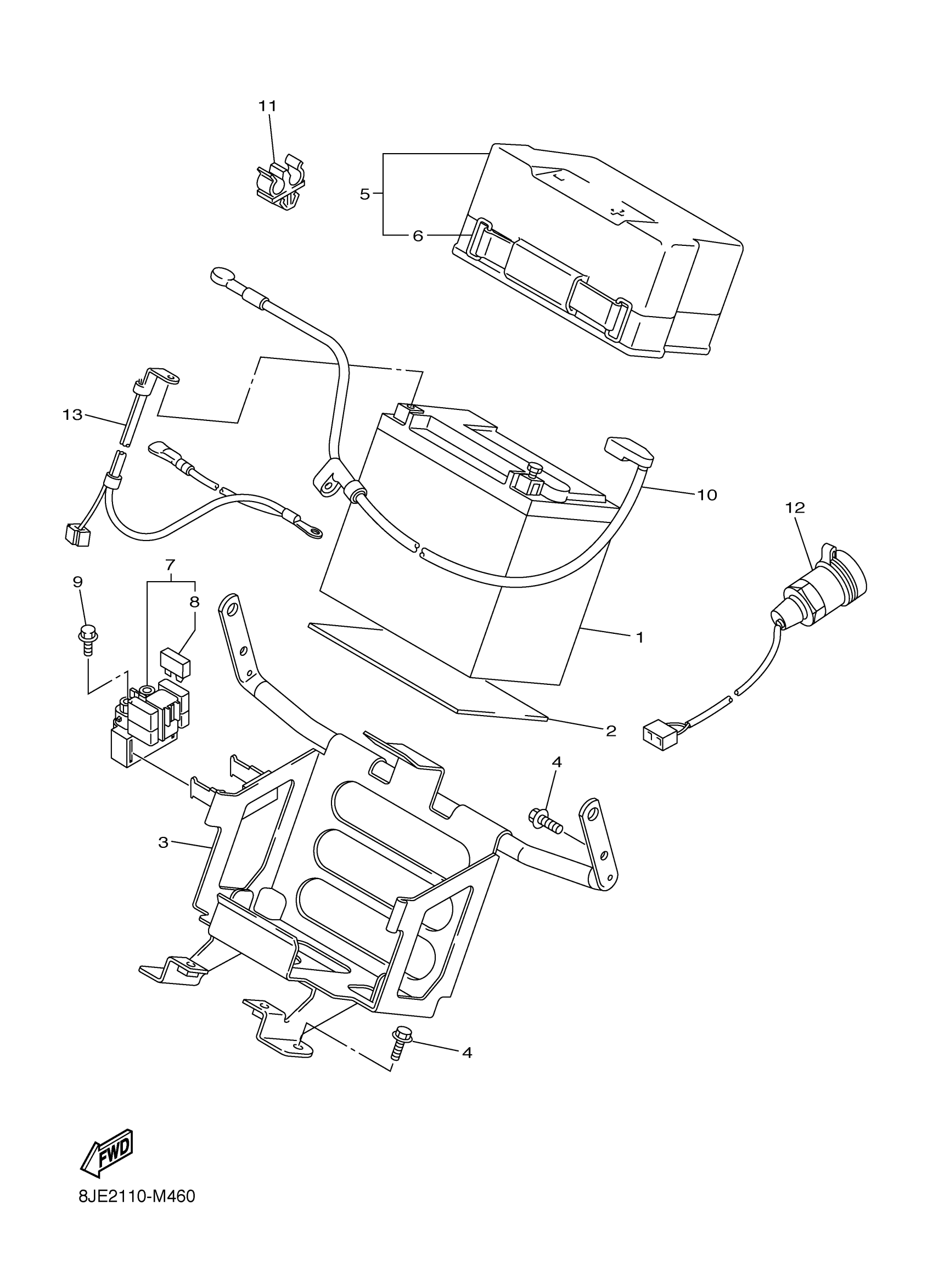

Yamaha VK10EW (RS VIKING PROFESSIONAL) 8JE40 2014 ELECTRICAL 2 Diagram

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

SEAT, BATTERY

8FA-82122-00-00

Unavailable

BRACKET, BATTERY

8FN-2199G-00-00

Unavailable

BOLT, FLANGE

95814-08016-00

$9.49

COVER, BATTERY

8FA-82129-00-00

$41.99

BAND, BATTERY

8DM-82131-10-00

$16.49

STARTER RELAY ASSY (RC19-076A)

3D7-81940-00-00

$98.99

FUSE (12V 30A)

1AE-82151-00-00

$7.99

BOLT, FLANGE

95022-06008-00

$8.49

WIRE, PLUS LEAD

8FN-82115-00-00

Unavailable

CLAMP(87A)

90464-08126-00

$1.54

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

WIRE, MINUS LEAD

8FN-82116-00-00

Unavailable
