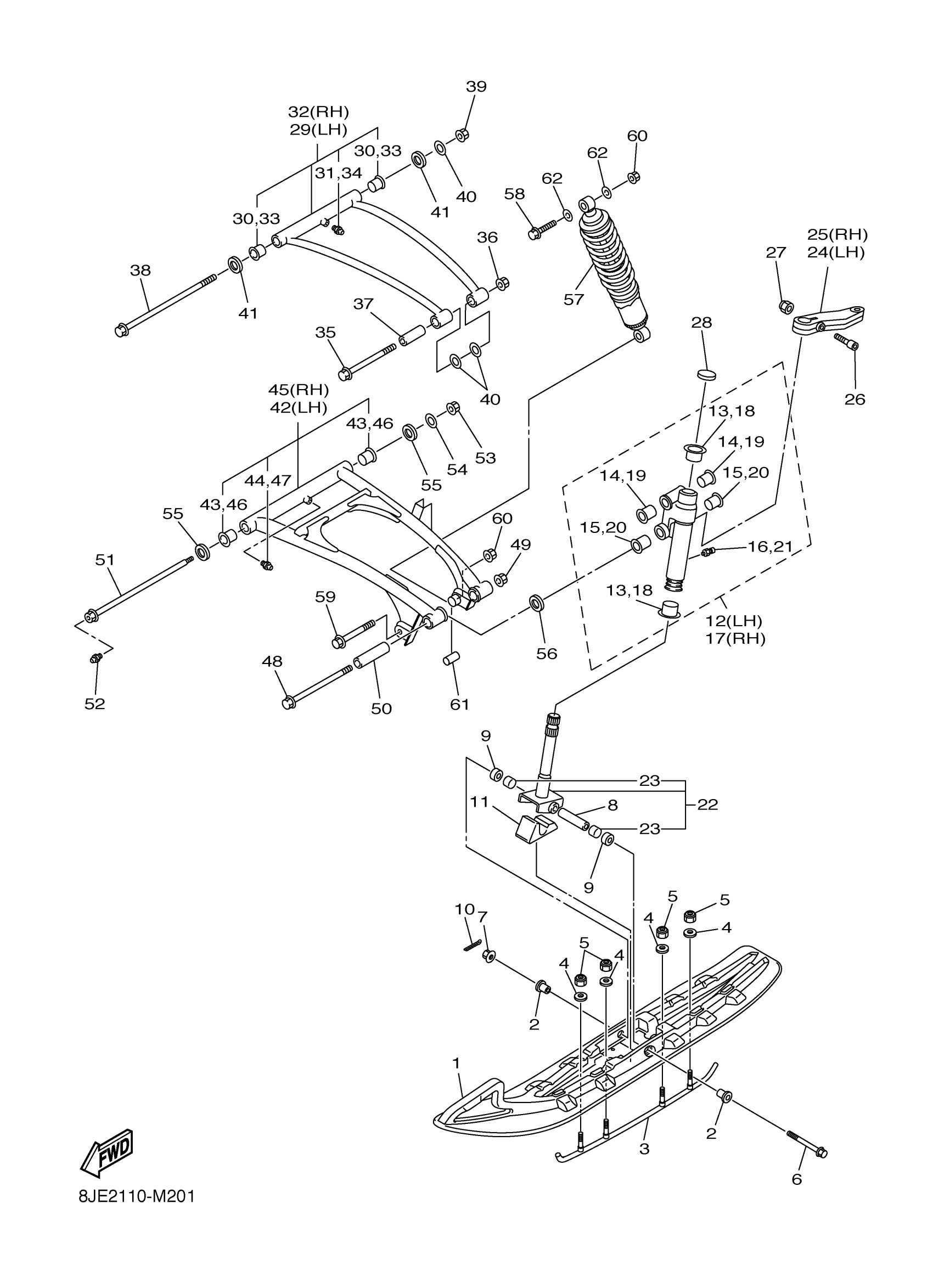

Yamaha VK10DG (RS VIKING PROFESSIONAL) 8JE2 2013 SKI Diagram
#
1
SKI COMP. 1
8JE-23710-00-00
Unavailable
2
COLLAR, 1
8EX-23754-00-00
Unavailable
3
RUNNER 1
8JD-F3731-00-00
Unavailable
4
WASHER, PLATE
90201-08053-00
$5.60
5
NUT, NYLON
95717-08300-00
$2.70
6
BOLT, FLANGE
90105-10410-00
$14.99
7
NUT, S/L FLANGE
95602-10200-00
$4.82
8
COLLAR
90387-1012H-00
$24.99
9
COLLAR
90387-10029-00
Unavailable
10
PIN, COTTER
91490-20025-00
$1.99
11
STOPPER 1
8ES-23743-00-00
Unavailable
12
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-10-00
$451.99
13
BUSH, SOLID
90381-25115-00
$9.49
14
BUSH, SOLID
90381-15N50-00
$7.49
15
BUSH, SOLID
90381-18N51-00
$11.49
16
NIPPLE, GREASE
93700-06M03-00
Unavailable
17
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-10-00
Unavailable
18
BUSH, SOLID
90381-25115-00
$9.49
19
BUSH, SOLID
90381-15N50-00
$7.49
20
BUSH, SOLID
90381-18N51-00
$11.49
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
23
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
24
ARM, OUTSIDE 1
8FN-23851-00-00
Unavailable
25
ARM, OUTSIDE 2
8FN-23852-00-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
27
NUT, SELF-LOCKING
95602-08200-00
Unavailable
28
CAP, CASE
3YK-22472-40-00
Unavailable
29
FRONT UPPER ARM COMP. (LEFT)
8GS-23540-20-00
Unavailable
30
BUSH, SOLID
90381-15N50-00
$7.49
31
NIPPLE, GREASE
93700-06M03-00
Unavailable
32
FRONT UPPER ARM COMP. (RIGHT)
8GS-23550-20-00
Unavailable
33
BUSH, SOLID
90381-15N50-00
$7.49
34
NIPPLE, GREASE
93700-06M03-00
Unavailable
35
BOLT, FLANGE
90105-10230-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
$4.82
37
COLLAR
90387-10099-00
Unavailable
38
BOLT
90109-10056-00
Unavailable
39
NUT, S/L FLANGE
95602-10200-00
$4.82
40
WASHER, PLATE
90201-10052-00
Unavailable
41
WASHER
90209-15N50-00
Unavailable
42
FRONT LOWER ARM COMP. (LEFT)
8GS-23570-20-00
Unavailable
43
BUSH, SOLID
90381-16N51-00
Unavailable
44
NIPPLE, GREASE
93700-06M03-00
Unavailable
45
FRONT LOWER ARM COMP. (RIGHT)
8GS-23580-20-00
Unavailable
46
BUSH, SOLID
90381-16N51-00
Unavailable
47
NIPPLE, GREASE
93700-06M03-00
Unavailable
48
BOLT, FLANGE
90105-12078-00
Unavailable
49
NUT, SELF-LOCKING
95602-12200-00
Unavailable
50
COLLAR
90387-12054-00
Unavailable
51
BOLT, UNION
90401-10045-00
Unavailable
52
NIPPLE, GREASE
93700-06M03-00
Unavailable
53
NUT, S/L FLANGE
95602-10200-00
$4.82
54
WASHER, PLATE
90201-10052-00
Unavailable
55
WASHER
90209-15N50-00
Unavailable
56
WASHER, PLATE
90201-12032-00
Unavailable
57
ABSORBER ASSY 1
8JE-2376A-00-00
Unavailable
58
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
59
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
60
NUT, S/L FLANGE
95602-10200-00
$4.82
61
COLLAR
90387-10N59-00
Unavailable
62
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
