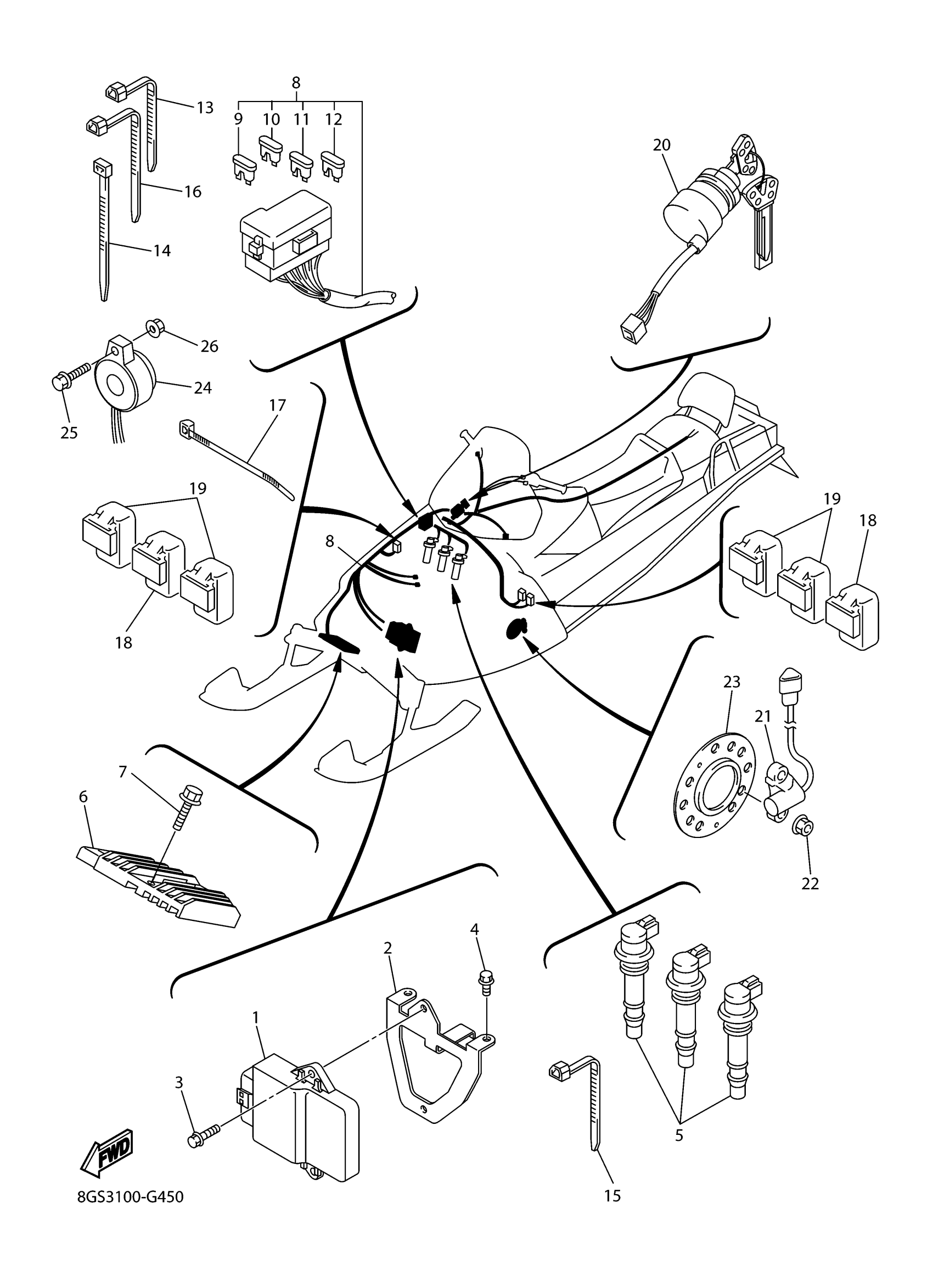

Yamaha VK10DG (RS VIKING PROFESSIONAL) 8JE2 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

8JE-82305-00-00

$609.99

2

BRACKET, UNIT

8ES-85991-00-00

$12.08

3

BOLT, FLANGE

95817-06016-00

$1.40

4

BOLT, FLANGE

95812-06010-00

$2.71

5

IGNITION COIL ASSY

8ES-82310-00-00

$128.18

6

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$364.55

7

. BOLT, FLANGE

90105-06185-00

$1.82

8

WIRE HARNESS ASSY

8JE-82590-00-00

Unavailable

9

FUSE

5JJ-82151-20-00

$5.98

10

. FUSE (10A)

67F-82151-40-00

$6.07

11

FUSE (15A)

67F-82151-50-00

$3.48

12

. FUSE (3A)

67F-82151-30-00

$4.69

13

CLAMP(4FM)

90464-15195-00

$2.57

14

CLAMP(4FM)

90464-15195-00

$2.57

15

BAND, SWITCH CORD

25G-83936-01-00

$3.85

16

CLAMP

90464-13077-00

Unavailable

17

CLAMP(3XW)

90464-35132-00

Unavailable

18

RELAY ASSY

5DM-81950-01-00

Unavailable

19

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

20

MAIN SWITCH ASSY

8HV-82510-00-00

Unavailable

21

SENSOR, SPEED

8GK-83755-12-00

Unavailable

22

NUT, NYLON

95717-08300-00

Unavailable

23

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

24

BUZZER

8GL-83383-00-00

Unavailable

25

SCREW, WITH WASHER

90159-05035-00

Unavailable

26

NUT, FLANGE

95702-05500-00

Unavailable
