- VK10BR (VK PRO) 8GSC 2012
TRACK SUSPENSION 1

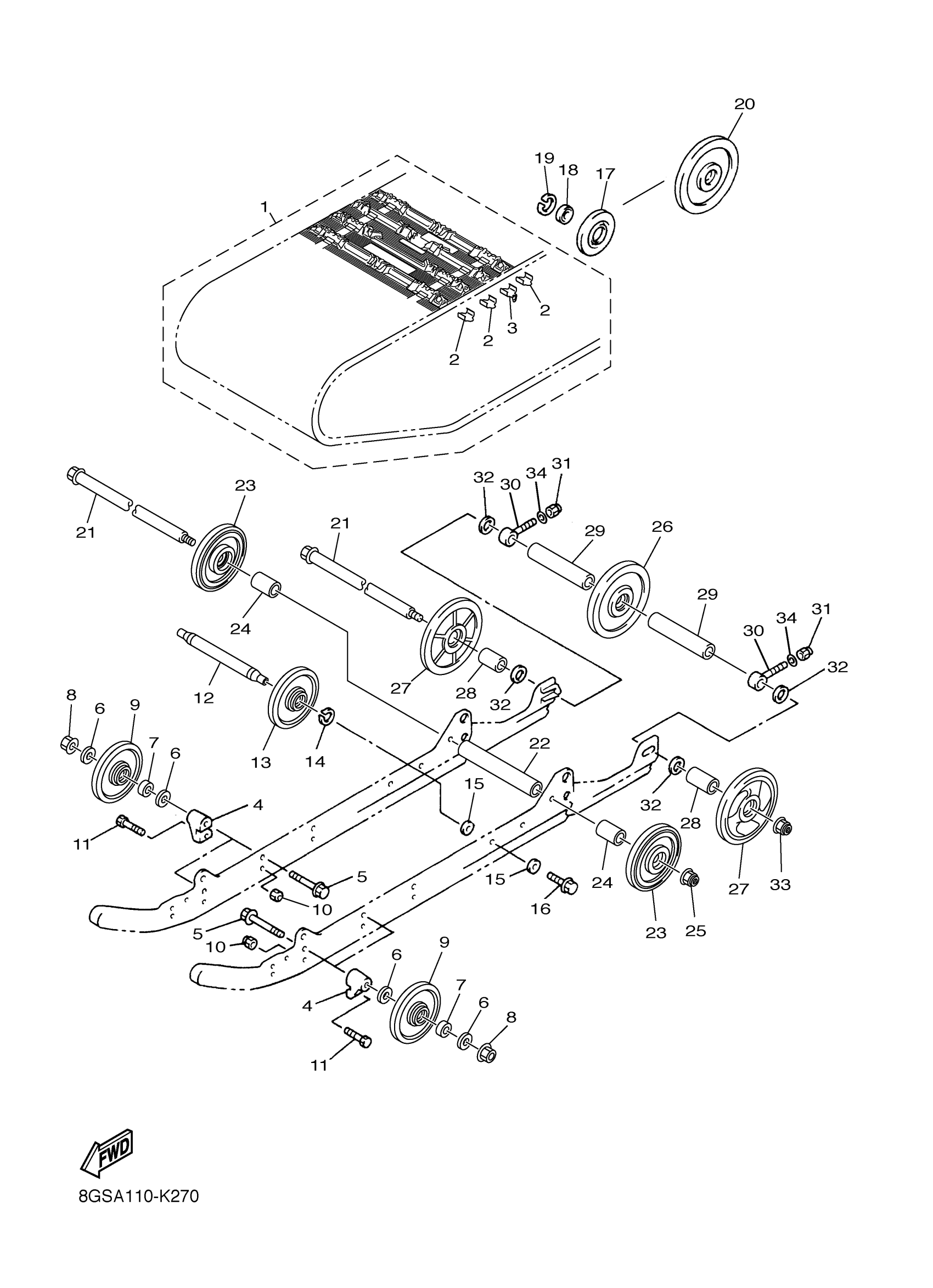

Yamaha VK10BR (VK PRO) 8GSC 2012 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8FN-47110-01-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
BRACKET 7
8CM-47419-10-00
$39.99
5
BOLT, FLANGE
95817-10080-00
$5.60
6
WASHER, PLATE(8CM)
90201-100S0-00
$5.60
7
COLLAR
90387-10031-00
$21.99
8
NUT, SELF-LOCKING
90185-10170-00
$9.49
9
SUSPENSION WHEEL ASSY
8ES-47310-00-00
$77.99
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BOLT(8CM)
90101-08774-00
$7.49
12
SHAFT 4
8FN-47486-00-00
Unavailable
13
SUSPENSION WHEEL ASSY
8ES-47310-00-00
$77.99
14
CIRCLIP(JF7)
99009-25400-00
$8.49
15
WASHER, PLATE (17K)
90201-106F2-00
$10.49
16
BOLT, FLANGE
95817-10030-00
Unavailable
17
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
18
BEARING(8AB)
93306-00444-00
Unavailable
19
CIRCLIP(5U8)
99009-42500-00
Unavailable
20
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
21
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
22
COLLAR 1
83R-47469-00-00
Unavailable
23
SUSPENSION WHEEL ASSY
8FM-47310-00-00
Unavailable
24
COLLAR
90387-20022-00
Unavailable
25
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
26
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
27
WEIGHT
8EK-47550-11-00
Unavailable
28
COLLAR
90387-20022-00
Unavailable
29
COLLAR
90387-20023-00
Unavailable
30
COLLAR 3
8DM-47479-00-00
Unavailable
31
NUT, NYLON
95707-10300-00
Unavailable
32
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
33
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
34
WASHER(6TA)
92907-10600-00
Unavailable
