2012 Yamaha VK Pro (VK10BR) Steering Gate Diagram

← All diagrams

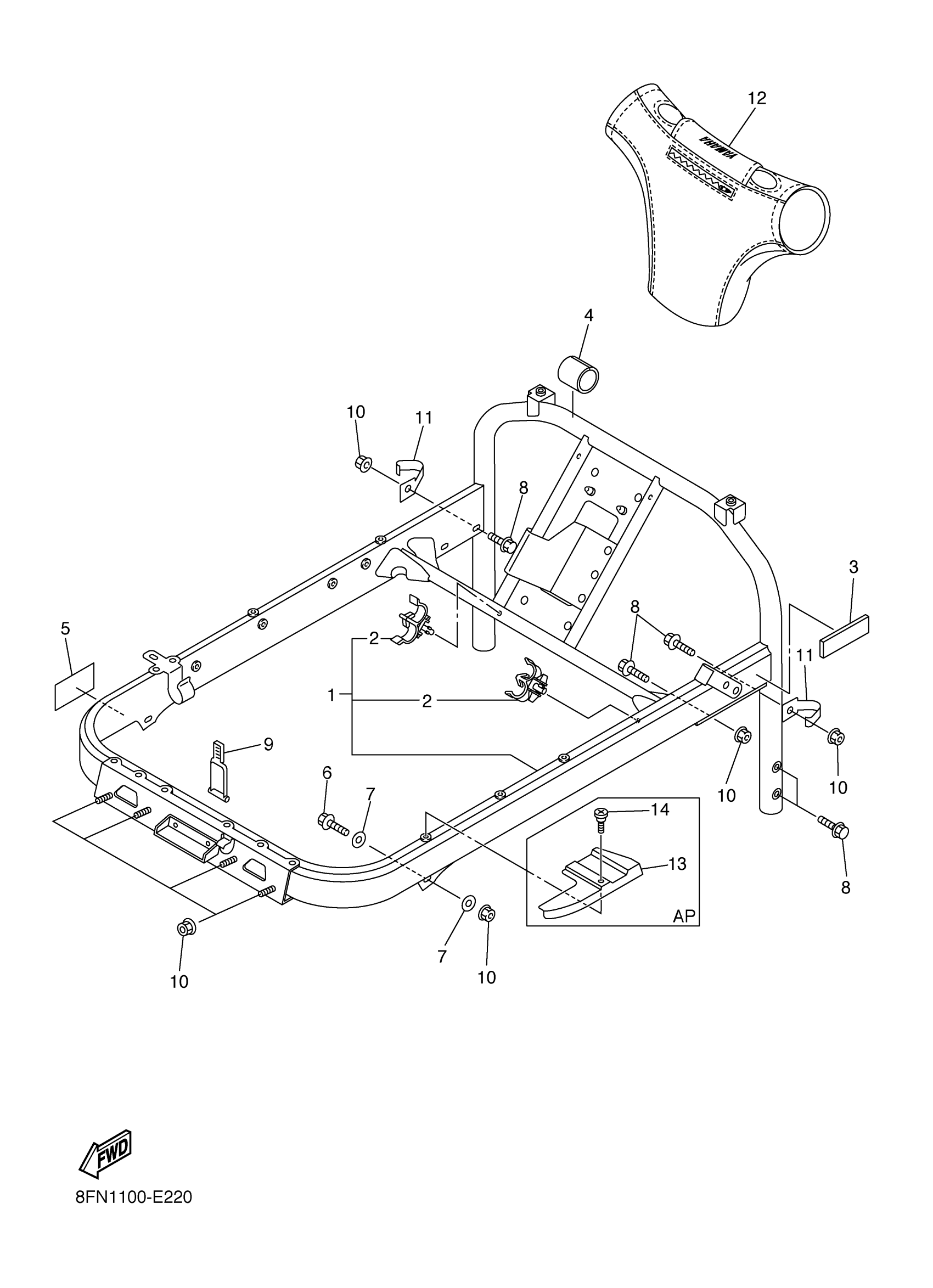

Find the part on the Steering Gate diagram for your 2012 Yamaha VK Pro (VK10BR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha VK Pro (VK10BR) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8GS-23870-01-00

1
Out of stock

2

CLAMP

90464-11007-00

1
Out of stock

3

DAMPER, LOCATING 1

8FN-24181-00-00

—
Out of stock

4

DAMPER, LOCATING 2

8FN-24182-00-00

1
Out of stock

5

LABEL, CAUTION

8FA-2389C-E0-00

—
Out of stock

6

BOLT, WASHER BASED(JN9)

90105-081A7-00

1
Out of stock

7

WASHER (853)

90201-08326-00

1
Out of stock

8

BOLT, FLANGE(8AB)

95817-08020-00

1
Out of stock

9

LATCH

8FA-2389E-00-00

1
Out of stock

10

NUT, SELF-LOCKING

95602-08200-00

1
Out of stock

11

CLAMP

90462-10022-00

—
Out of stock

12

PAD, STEERING

8FN-23815-00-00

—
Out of stock

13

PLATE

8ES-14146-00-00

—
Out of stock

14

SCREW, ROUND HEAD (24R)

90150-06015-00

1
Out of stock
