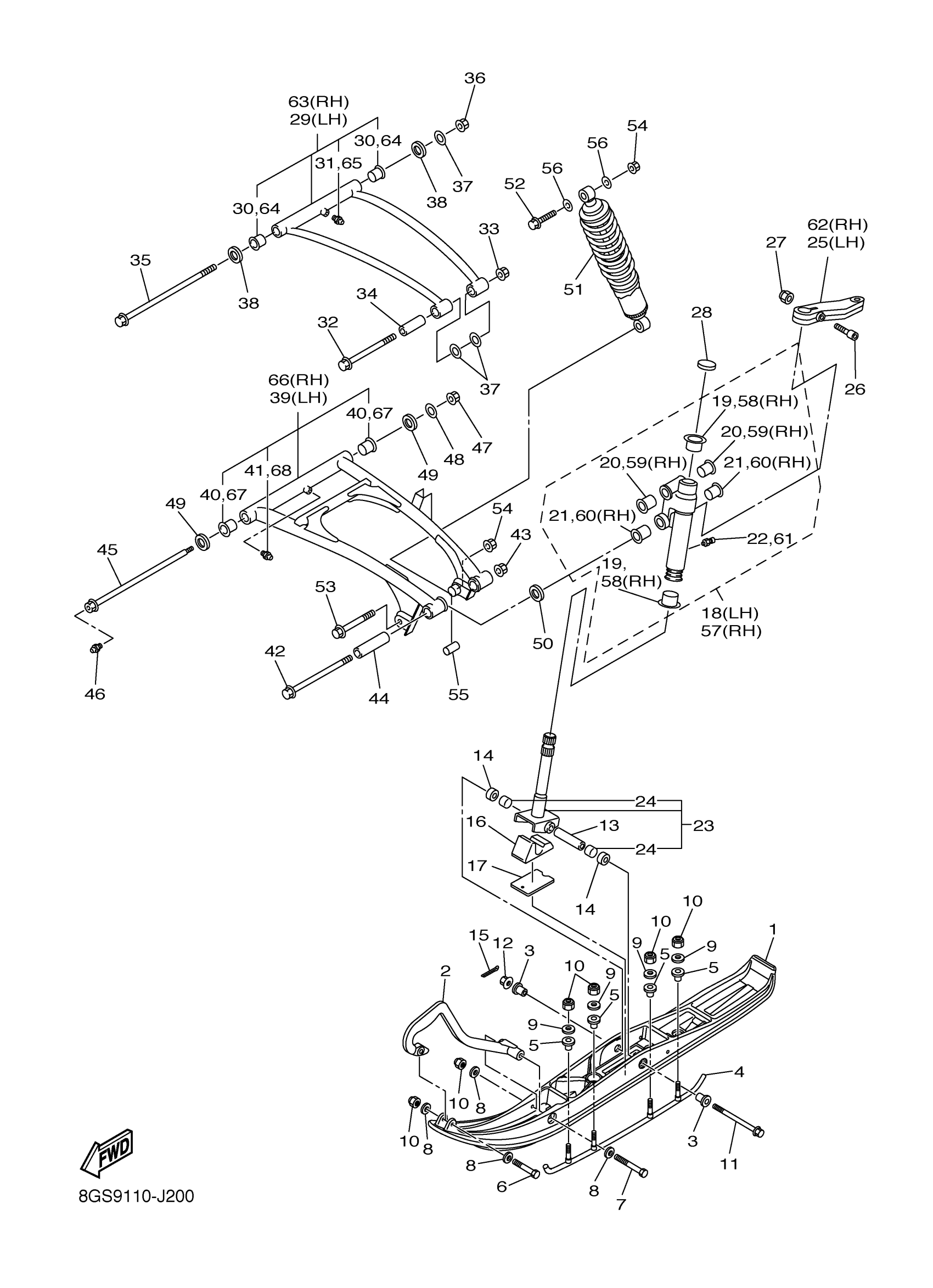

Yamaha VK10BR (VK PRO) 8GSC 2012 SKI Diagram
#
1
SKI 1
8FN-F3711-00-00
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
RUNNER
8EN-23731-00-XX
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10410-00
$14.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
COLLAR
90387-1012H-00
$24.99
14
COLLAR
90387-10029-00
Unavailable
15
PIN, COTTER
91490-20025-00
$1.99
16
STOPPER 1
8ES-23743-00-00
Unavailable
17
STOPPER 2
8FM-23744-00-00
Unavailable
18
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-00-00
Unavailable
19
BUSH, SOLID
90381-25115-00
Unavailable
20
BUSH, SOLID
90381-15N50-00
Unavailable
21
BUSH, SOLID
90381-18N51-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
24
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
25
ARM, OUTSIDE 1
8FN-23851-00-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD
90110-08N53-00
Unavailable
27
NUT, SELF-LOCKING
90185-08169-00
Unavailable
28
CAP, CASE
3YK-22472-40-00
Unavailable
29
FRONT UPPER ARM COMP. (LEFT)
8GS-23540-00-00
Unavailable
30
BUSH, SOLID
90381-15N50-00
Unavailable
31
NIPPLE, GREASE
93700-06M03-00
Unavailable
32
BOLT, FLANGE
90105-10N51-00
Unavailable
33
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
34
COLLAR
90387-10099-00
Unavailable
35
BOLT, FLANGE
90105-10N54-00
Unavailable
36
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
37
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
38
WASHER
90209-15N50-00
Unavailable
39
FRONT LOWER ARM COMP. (LEFT)
8GS-23570-00-00
Unavailable
40
BUSH, SOLID
90381-16N51-00
Unavailable
41
NIPPLE, GREASE
93700-06M03-00
Unavailable
42
BOLT, FLANGE
90105-12N54-00
Unavailable
43
NUT, U FLANGE
95607-12200-00
Unavailable
44
COLLAR
90387-12N54-00
Unavailable
45
BOLT, UNION
90401-10043-00
Unavailable
46
NIPPLE, GREASE
93700-06M03-00
Unavailable
47
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
48
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
49
WASHER
90209-15N50-00
Unavailable
50
WASHER, PLATE
90201-12032-00
Unavailable
51
ABSORBER ASSY 1
8FN-2376A-00-00
Unavailable
52
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
53
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
54
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
55
COLLAR
90387-10N59-00
Unavailable
56
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
57
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-00-00
Unavailable
58
BUSH, SOLID
90381-25115-00
Unavailable
59
BUSH, SOLID
90381-15N50-00
Unavailable
60
BUSH, SOLID
90381-18N51-00
Unavailable
61
NIPPLE, GREASE
93700-06M03-00
Unavailable
62
ARM, OUTSIDE 2
8FN-23852-00-00
Unavailable
63
FRONT UPPER ARM COMP. (RIGHT)
8GS-23550-00-00
Unavailable
64
BUSH, SOLID
90381-15N50-00
Unavailable
65
NIPPLE, GREASE
93700-06M03-00
Unavailable
66
FRONT LOWER ARM COMP. (RIGHT)
8GS-23580-00-00
Unavailable
67
BUSH, SOLID
90381-16N51-00
Unavailable
68
NIPPLE, GREASE
93700-06M03-00
Unavailable
