GUARD LUGGAGE BOX

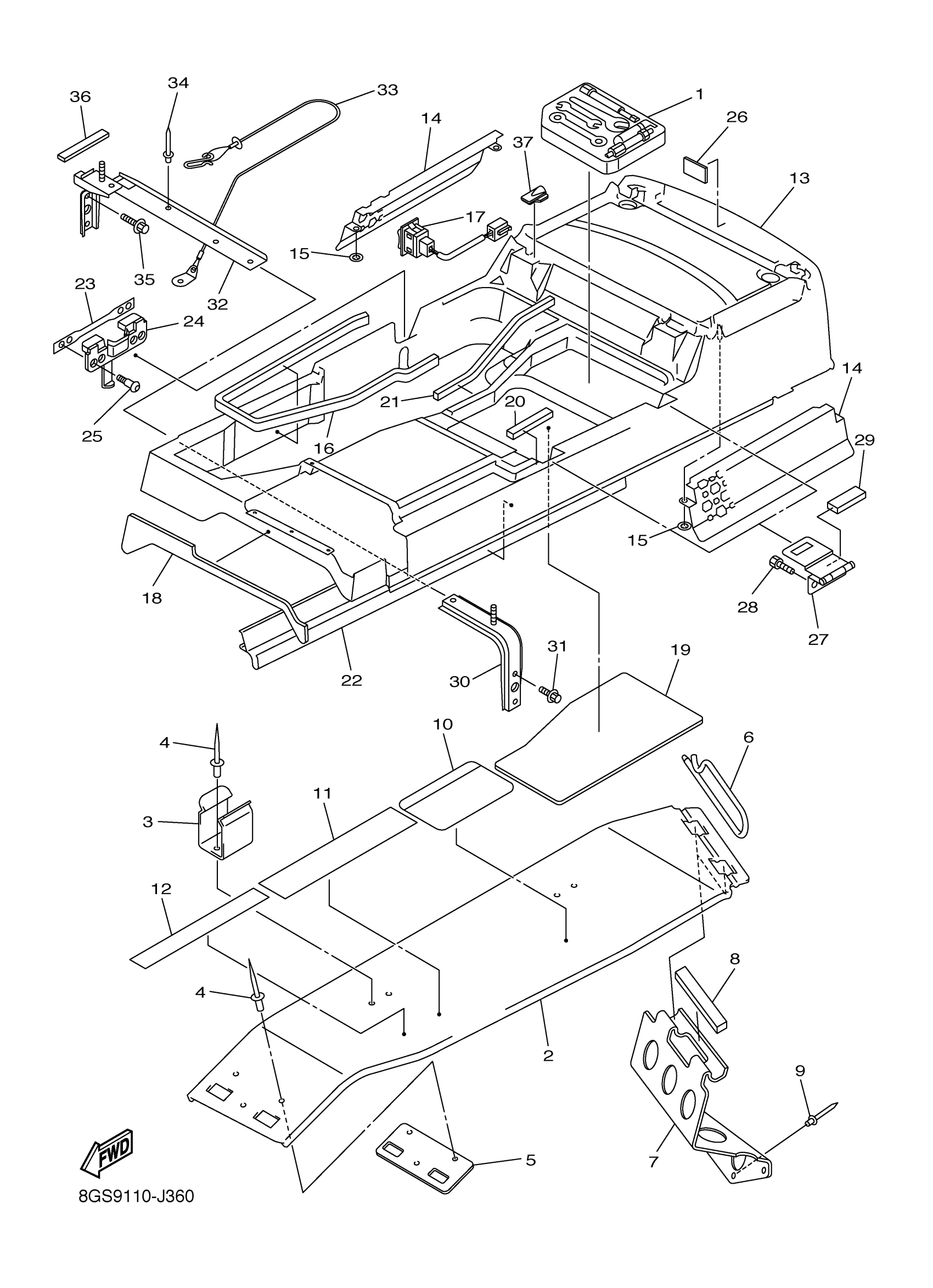

Yamaha VK10BR (VK PRO) 8GSC 2012 GUARD LUGGAGE BOX Diagram
#
1
TOOL KIT
8FN-28100-01-00
Unavailable
2
GUARD, DRIVE
8FA-77311-02-00
Unavailable
3
STAY, BELT
8CR-77338-00-00
$5.49
4
RIVET, BLIND
90267-48010-00
$9.49
5
PROTECTOR
8FA-77373-00-00
Unavailable
6
PIN
8CR-77384-01-00
$16.49
7
HOOK
8FN-21973-00-00
Unavailable
8
DAMPER 1
8CR-77319-00-00
$0.42
9
RIVET, BLIND
90267-47195-00
$3.88
10
LABEL, WARNING 2
8BD-77762-00-00
$7.99
11
LABEL 1
8GS-47578-00-00
Unavailable
12
LABEL, CAUTION
8ES-1417E-00-00
Unavailable
13
LUGGAGE BOX ASSY
8FN-77390-00-00
Unavailable
14
LOUVER 3
8FN-77133-00-00
$32.99
15
NUT, SPRING(8AJ)
90183-05068-00
$10.49
16
SEAL
8FN-2414G-00-00
Unavailable
17
SWITCH
8ET-82917-00-00
Unavailable
18
LINING, SHROUD 2
8FN-77262-00-00
Unavailable
19
LINING, SHROUD 3
8FN-77263-00-00
Unavailable
20
SEAL 3
8FN-241A3-00-00
Unavailable
21
SEAL 4
8FN-241A4-00-00
Unavailable
22
TRIM 1
8FN-2196T-00-00
Unavailable
23
BAR, SEAT LEVER
8FN-2478C-00-00
Unavailable
24
DAMPER, SEAT
8FN-24723-00-00
Unavailable
25
BOLT
90111-05020-00
Unavailable
26
DAMPER
5TG-84163-00-00
Unavailable
27
HINGE ASS'Y
8FN-24772-00-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-06043-00
Unavailable
29
SEAL 2
8FN-2414E-00-00
Unavailable
30
BRACKET, FUEL TANK 1
8FN-2194N-01-00
Unavailable
31
BOLT, FLANGE
95817-08014-00
Unavailable
32
BRACKET, FUEL TANK 2
8FN-2194R-01-00
Unavailable
33
CABLE, SEAT LOCK
8FN-2478E-00-00
Unavailable
34
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
35
BOLT, FLANGE
95817-08014-00
Unavailable
36
SEAL 3
8FN-241A3-00-00
Unavailable
37
GROMMET
8FN-24742-00-00
Unavailable
