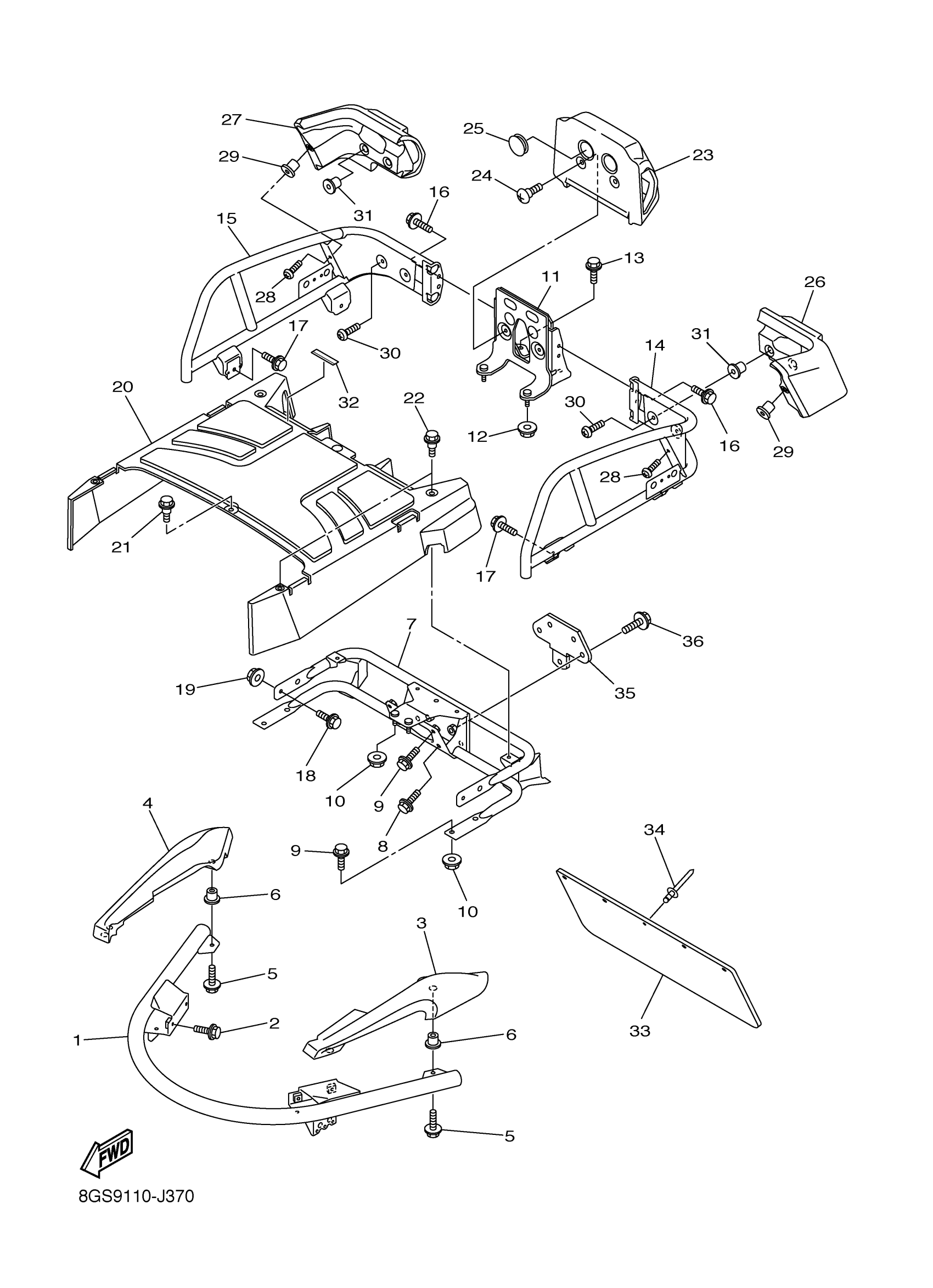

Find the part on the Bumper diagram for your 2012 Yamaha VK Pro (VK10BR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha VK Pro (VK10BR) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8FN-77511-10-00

—

$292.38

In stock

2

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

3

END, BUMPER

8FN-77523-00-00

—

$102.77

In stock

4

END, BUMPER

8FN-77524-00-00

—

$102.77

In stock

5

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

6

NUT(1WT)

90179-06520-00

1
Out of stock

7

BUMPER, REAR 1

8FN-77541-00-00

1

$542.99

In stock

8

BOLT, FLANGE

95817-10020-00

1

$6.17

In stock

9

BOLT, FLANGE

95814-08016-00

1

$6.68

In stock

10

NUT,FLANGE(J10)

95702-08500-00

1

$0.80

In stock

11

BUMPER, REAR 2

8FN-77542-00-00

1
Out of stock

12

NUT,FLANGE(J10)

95702-08500-00

1

$0.80

In stock

13

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

14

BUMPER, REAR 3

8FN-77543-10-00

—

$247.86

In stock

15

BUMPER, REAR 4

8FN-77544-10-00

—

$275.23

In stock

16

BOLT, FLANGE

95814-08016-00

1

$6.68

In stock

17

BOLT, FLANGE

95817-10020-00

1

$6.17

In stock

18

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

19

NUT, FLANGE

95702-06500-00

—

$1.98

In stock

20

PROTECTOR 1

8FN-77551-00-00

—

$492.99

In stock

21

BOLT

90109-06272-00

—

$2.25

In stock

22

BOLT

90109-06172-00

—
Out of stock

23

PROTECTOR 2

8FN-77552-00-00

—

$249.74

In stock

24

SCREW, BINDING

90154-06009-00

—

$2.92

In stock

25

PLUG(XA1)

90338-28242-00

—

$1.95

In stock

26

PROTECTOR 3

8FN-77553-00-00

—
Out of stock

27

PROTECTOR 4

8FN-77554-00-00

—
Out of stock

28

SCREW, BIND (705)

98980-06016-00

—
Out of stock

29

NUT(1WT)

90179-06520-00

1
Out of stock

30

SCREW, BIND(J50)

98980-08020-00

—

$3.40

In stock

31

NUT

90179-08011-00

—

$10.68

In stock

32

EMBLEM

8FM-24897-01-00

—

$3.54

In stock

33

FLAP

83R-77595-00-00

—

$157.15

In stock

34

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

35

BRACKET, HITCH 2

84R-77592-00-00

—

$65.05

In stock

36

BOLT, FLANGE(4LN)

95817-08025-00

—

$6.17

In stock
