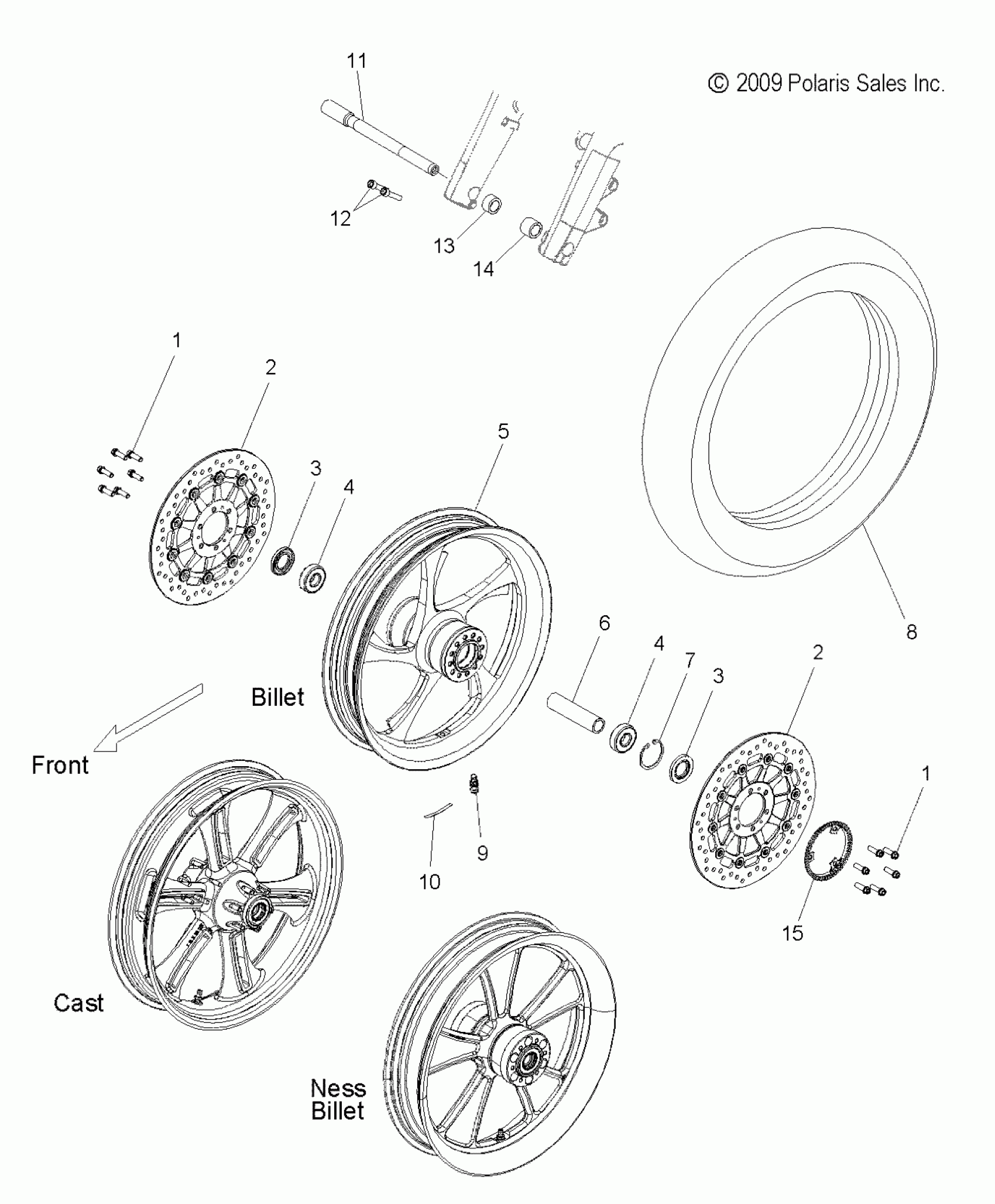

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 WHEELS, FRONT - V10SD36/SC36/VB36 ALL OPTIONS (49VICWHEELFRT10VN) Diagram

#

Description
Price

1

SCREW, ROTOR BOLT

7518661

$1.59

1

SCREW, ROTOR BOLT

7518661

$1.59

2

Rotor, Brake, Black

1911463-266

$379.99

2

Rotor, Brake, Silver

1911463-385

$264.99

2

Rotor, Brake, Black

1911463-266

$379.99

2

Rotor, Brake, Silver

1911463-385

$264.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

Asm., Wheel, Front, Cast, TR, Black [8 Ball][Incl. 3-7,9]

1521383-266

$446.49

5

Asm., Wheel, Billet, Front [Incl. 3-7,9]

1521034-405

$1,414.99

5

Asm., Wheel, Front, Ness Hotrod [Incl. 3-7,9]

1521264

Unavailable

5

Asm., Wheel, Billet, Front, Dual, ABS [Incl. 3-7,9]

1521529-405

$1,107.99

6

Spacer

5334135

$29.99

7

Ring, Retaining

7710526

$10.32

8

TIRE, FRONT, RADIAL

5412521

$275.22

9

Valve, Rim [Use w/Cast Wheel Only]

1520232

$3.17

9

Valve, Rim [Use w/Billet Wheel Only]

1521515

Unavailable

10

Weight, Balance

1520618

Unavailable

11

Axle, Front

5135008

$85.70

12

SCREW

7517361

$23.81

12

Bolt, Pinch [Kayaba Fork]

7519105

$7.14

13

SPACER, BEARING

5631479

$3.97

14

SPACER, BEARING

5631481

$4.76

15

Ring, ABS Sensor

5910335

$31.75
