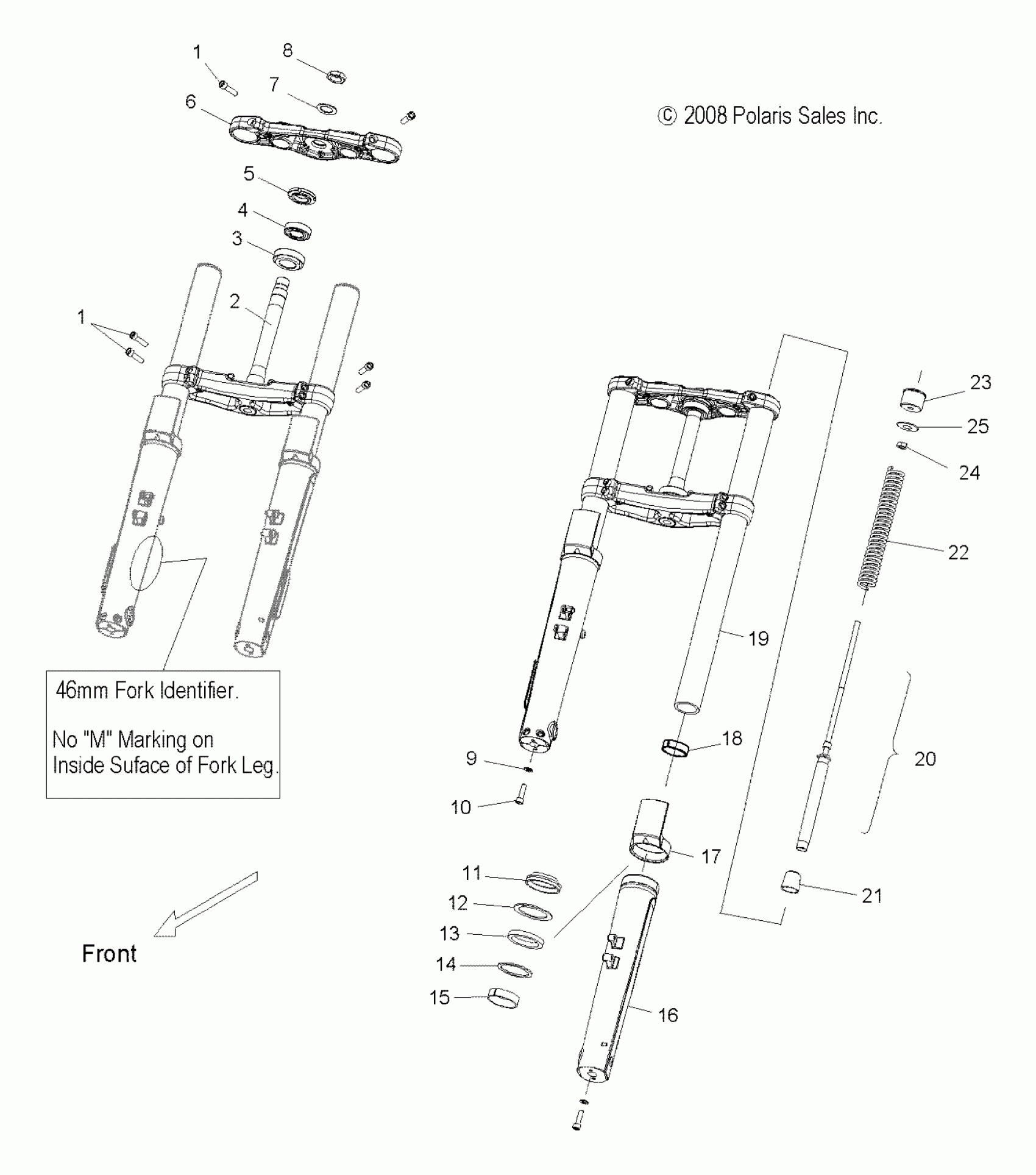

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 SUSPENSION, FRONT FORKS and CLAMPS, 46 MM - V10SD36/SC36/VB36 ALL OPTIONS (49VICFORKS09VN46) Diagram

#

Description
Price

-

ASM., FORK, LH, SILVER, 46 MM [INCL. 9-24]

1823390-385

$1,124.99

-

ASM., FORK, RH, SILVER, 46 MM [INCL. 9-24]

1823391-385

$1,294.99

-

Fork, Low, LH, Black [8 Ball][Incl. ?]

1823548-266

$1,121.99

-

Fork, Low, RH, Black [8 Ball][Incl. ?]

1823549-266

$1,019.99

-

Asm., Fork, LH, Chrome, 46 mm [Incl. 9-24]

1823390-156

$1,054.99

-

Asm., Fork, RH, Chrome, 46 mm [Incl. 9-24]

1823391-156

$1,054.99

1

SCREW

7517361

$23.81

1

SCREW

7517361

$23.81

2

ASM., CLAMP, TRIPLE, LOWER, BLACK

1823448-067

$384.99

3

BEARING, NDL

3514416

$35.71

4

BEARING, BALL

3514549

$23.81

5

NUT, STEERING HEAD

5134094

$31.75

6

Clamp, Triple, Upper, Black

5136477-067

Unavailable

7

WASHER

7556246

$4.76

8

Nut, Top, Triple Clamp

5134148

$31.75

9

PACKING

1500798

$7.27

10

SCREW

7519082

$5.56

11

SEAL, DUST

3610158

$35.71

12

RING, SNAP

7710628

$1.59

13

SEAL, OIL

3610157

$31.75

14

WASHER

7556493

$4.76

15

SLIDE, METAL

5136822

$36.41

16

TUBE, OUTER, SILVER [LH]

5632273-385

$609.99

16

TUBE, OUTER, SILVER [RH]

5632272-385

Unavailable

16

TUBE, OUTER, BLACK [LH]

5632273-266

$494.99

16

TUBE, OUTER, BLACK [RH]

5632272-266

Unavailable

16

Tube, Outer, Chrome [LH]

5632273-156

$494.99

16

Tube, Outer, Chrome [RH]

5632272-156

$504.99

17

PROTECTOR

7175807

$12.94

18

Bushing, Piston

5136821

$15.87

19

TUBE, INNER

5137276

Unavailable

20

CYLINDER COMPLETE

5136806

Unavailable

20

Cartridge [Low]

5137274

Unavailable

21

Asm., Oil Lock

2203973

$36.41

22

SPRING

7043498

Unavailable

22

Spring [Low]

7043627

$69.99

23

CAP

5136808

Unavailable

23

Cap [Low]

5137273

$114.99

24

NUT

7547447

$6.46

25

SPACER

----

Unavailable

25

Spacer [Low]

7556550

Unavailable
