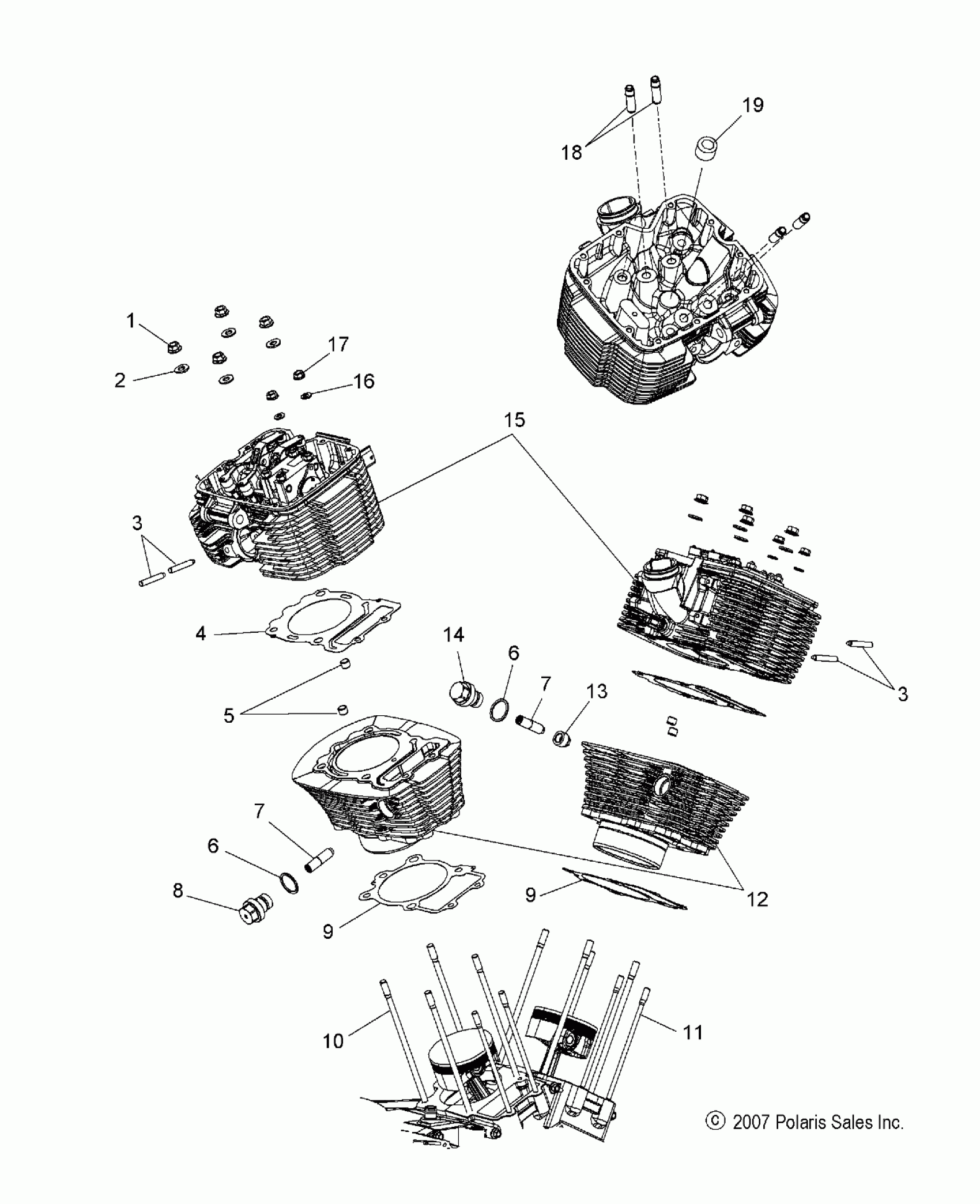

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 ENGINE, CYLINDER and HEAD - V10SD36/SC36/VB36 ALL OPTIONS (49VICCYLINDERHD08VN) Diagram

#

Description
Price

1

NUT

7547017

$5.56

2

WASHER, FLAT

7555986

$12.99

3

STUD, EXHAUST MOUNT

5132040

$5.56

3

STUD, EXHAUST MOUNT

5132040

$5.56

4

GASKET, HEAD

5249360

Unavailable

5

DOWEL

7663008

$5.99

6

WASHER, SEALING

7556310

$10.32

6

WASHER, SEALING

7556310

$10.32

7

TENSIONER, HYDRAULIC

3021517

$58.08

7

TENSIONER, HYDRAULIC

3021517

$58.08

8

PLUG, TENSIONER, REAR

3021923

Unavailable

9

GASKET, BASE

5250423

Unavailable

9

GASKET, BASE

5250423

Unavailable

10

STUD, CYLINDER MOUNTING

5134314

$34.90

11

STUD, CYLINDER MOUNTING

5134315

Unavailable

12

CYLINDER, BLACK

5138800

$880.94

12

Cylinder, Black Diamond Cut [Ness]

5135553

$999.98

13

SLEEVE, DAMPER, CAM DRIVE

3021668

Unavailable

14

PLUG, TENSIONER, FRONT

3021922

Unavailable

15

Head, Cylinder, Front, Black [Incl. 18,19]

3021924

$1,319.99

15

Head, Cylinder, Rear, Black [Incl. 18,19]

3021925

$1,299.99

15

Head, Cylinder, Front, Black Diamond [Ness][Incl. 18,19]

3021967

$953.99

15

Head, Cylinder, Rear, Black Diamond [Ness][Incl. 18,19]

3021968

$1,044.99

16

WASHER, FLAT

7556043

$5.22

17

NUT

7547014

$7.84

18

Guide, Valve

3021154

$55.56

19

Plug, Pipe

7052315

$5.71
