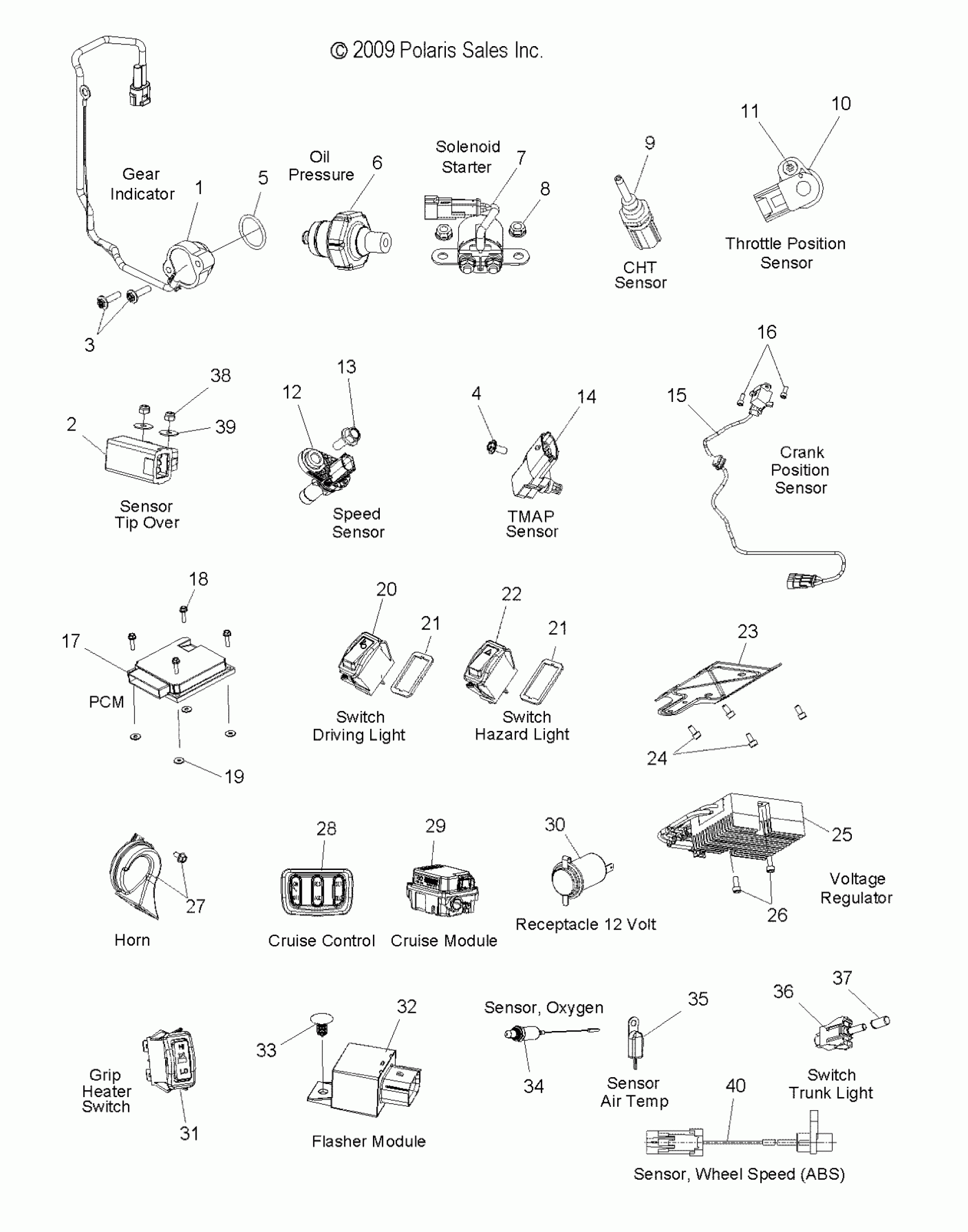

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS - V10SD36/SC36/VB36 ALL OPTIONS (49VICSWITCHES10VN) Diagram

#

Description
Price

1

Switch, Gear Indicator

4012204

$71.41

2

SENSOR, TIP OVER

4011296

Unavailable

3

Screw

7519076

Unavailable

4

SCREW

7518338

$4.79

5

O-RING

5412530

$1.59

6

SWITCH, OIL PRESSURE

4012668

Unavailable

7

SOLENOID, STARTER

4012001

Unavailable

8

NUT

7547270

$3.99

9

Sensor, Cylinder Head Temp

4011299

Unavailable

10

SENSOR, THROTTLE POSITION

4012101

Unavailable

11

SCREW

7518901

Unavailable

12

SENSOR, VEHICLE SPEED

4011884

Unavailable

13

SCREW

7517750

Unavailable

14

Sensor, T-Map

2410422

Unavailable

15

SENSOR, CRANK POSITION

4012280

Unavailable

16

SCREW

7518045

$10.39

17

PCM, Service

4012157

$614.99

18

SCREW

7518329

Unavailable

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

SWITCH, DRIVING LIGHT

4011317

Unavailable

21

GASKET-SWITCH

5521757

$3.19

21

GASKET-SWITCH

5521757

$3.19

22

SWITCH, HAZARD LIGHT

4011318

$63.99

23

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

Unavailable

24

Screw

7517739

$9.59

25

Regulator, Voltage, Black

4012238

Unavailable

26

SCREW

7517272

$7.19

27

SCREW

7518043

Unavailable

27

HORN

4011489

Unavailable

28

Controls, Cruise

4012490

Unavailable

29

Module, Cruise Control

4011316

Unavailable

30

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

31

SWITCH-HANDWARMER,SPDT

4011319

$54.99

32

MODULE, FLASHER, 27W

4012104

Unavailable

33

CLIP-PLASTIC DART, NYLON

7670088

$1.59

34

SENSOR, OXYGEN

4010430

$133.56

35

SENSOR, GAUGE, AIR TEMP

2410443

$64.75

36

SWITCH, DOOR LIGHT, TRUNK

4011390

Unavailable

37

CAP, VINYL, BLACK

5413617

Unavailable

38

NUT, NYLOK

7547126

$3.19

39

WASHER, FLAT

7556477

Unavailable

40

Sensor, Wheel Speed, Front [ABS]

4011294

Unavailable
