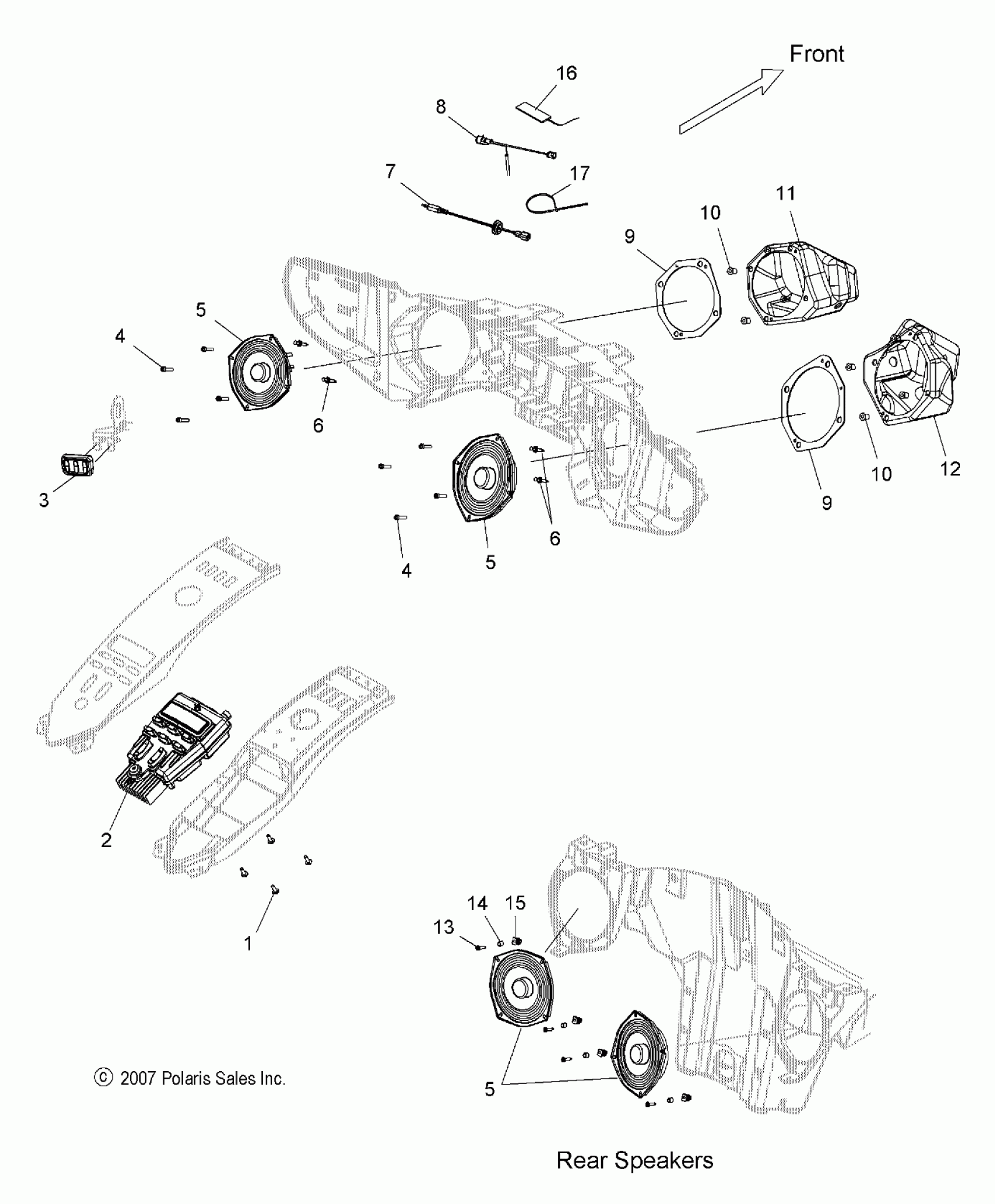

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 ELECTRICAL, AUDIO SYSTEM - V10SD36/SC36/VB36 ALL OPTIONS (49VICAUDIO08VN) Diagram

#

Description
Price

1

SCREW

7518570

$3.97

2

Module, Radio [Contact Victory Tech Service Rep. for Replacement]

4012272

$1,084.99

3

Switch, Radio Control

4012488

Unavailable

4

SCREW

7518086

$5.56

4

SCREW

7518086

$5.56

5

SPEAKER

4012273

$254.98

5

SPEAKER

4012273

$254.98

5

SPEAKER

4012273

$254.98

6

RIVET

7661891

$1.19

6

RIVET

7661891

$1.19

7

CORD, AUX. AUDIO

2411288

$69.99

8

Harness, AM/FM Antenna

2411113

$124.99

9

SEAL, SPEAKER VOLUME

5813058

Unavailable

9

SEAL, SPEAKER VOLUME

5813058

Unavailable

10

NUT, WELL

7547354

$4.76

10

NUT, WELL

7547354

$4.76

11

VOLUME, SPEAKER, LH

5436409

Unavailable

12

VOLUME, SPEAKER, RH

5436410

Unavailable

13

Screw

7518590

$3.17

14

Spacer

5134403

$3.17

15

NUT, PAL

7547324

$3.97

16

Pad, Connection, AM/FM Antenna

4012151

$36.19

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
