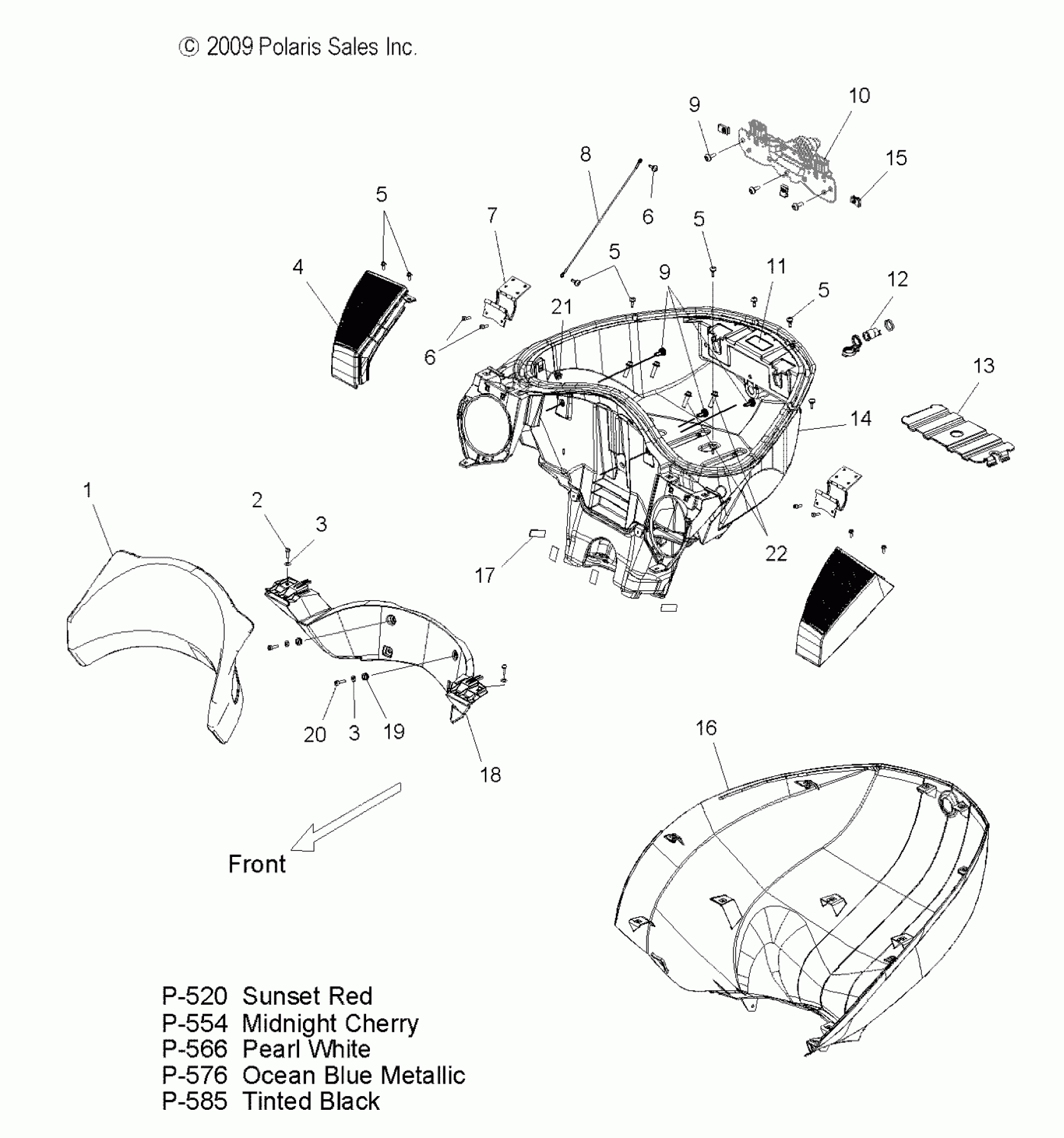

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 BODY, TRUNK BASE - V10SD36/SC36/VB36 ALL OPTIONS (49VICTRUNKBASE10VN) Diagram

#

Description
Price

1

ASM., BACKREST, TRUNK

2684362

Unavailable

2

Screw

7518590

$3.19

3

WASHER

7555727

$1.49

3

WASHER

7555727

$1.49

4

Grille, Speaker, RH, Trunk

5436382

Unavailable

4

Grille, Speaker, LH, Trunk

5436381

Unavailable

5

SCREW

7518518

$1.59

5

SCREW

7518518

$1.59

5

SCREW

7518518

$1.59

5

SCREW

7518518

$1.59

6

SCREW

7518875

Unavailable

6

SCREW

7518875

Unavailable

7

ASM., HINGE, TRUNK

2633666

Unavailable

8

CABLE, TRUNK STOP

7081447

Unavailable

9

SCREW

7518484

$4.79

9

SCREW

7518484

$4.79

10

ASM., IGNITION SWITCH LOCK W/TRUNK

-------

Unavailable

11

DECAL, CARGO LIMIT, 20 LBS.

7175094

Unavailable

12

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

13

PANEL, FLOOR, TRUNK

5436377

Unavailable

14

ASM., CORE BASE, TRUNK

1016281

Unavailable

15

CLIP-U SPEED NUT

7081305

$1.99

16

Panel, Base, Trunk

5437444-554

$959.99

16

PANEL, BASE, TRUNK

5437444-520

Unavailable

16

PANEL, BASE, TRUNK

5437444-566

Unavailable

16

Panel, Base, Trunk

5437444-585

$619.03

16

Panel, Base, Trunk

5437444-576

$609.51

17

PAD-FOAM SHIM,TRUNK

5413465

$5.59

18

PANEL, SEAT FILLER, TRUNK

5436375

Unavailable

19

GROMMET, SEAT FILLER, TRUNK

5413464

$3.99

20

SCREW

7518900

Unavailable

21

NUT, PAL NUT

7547324

$3.99

22

SCREW

7518884

$1.99
