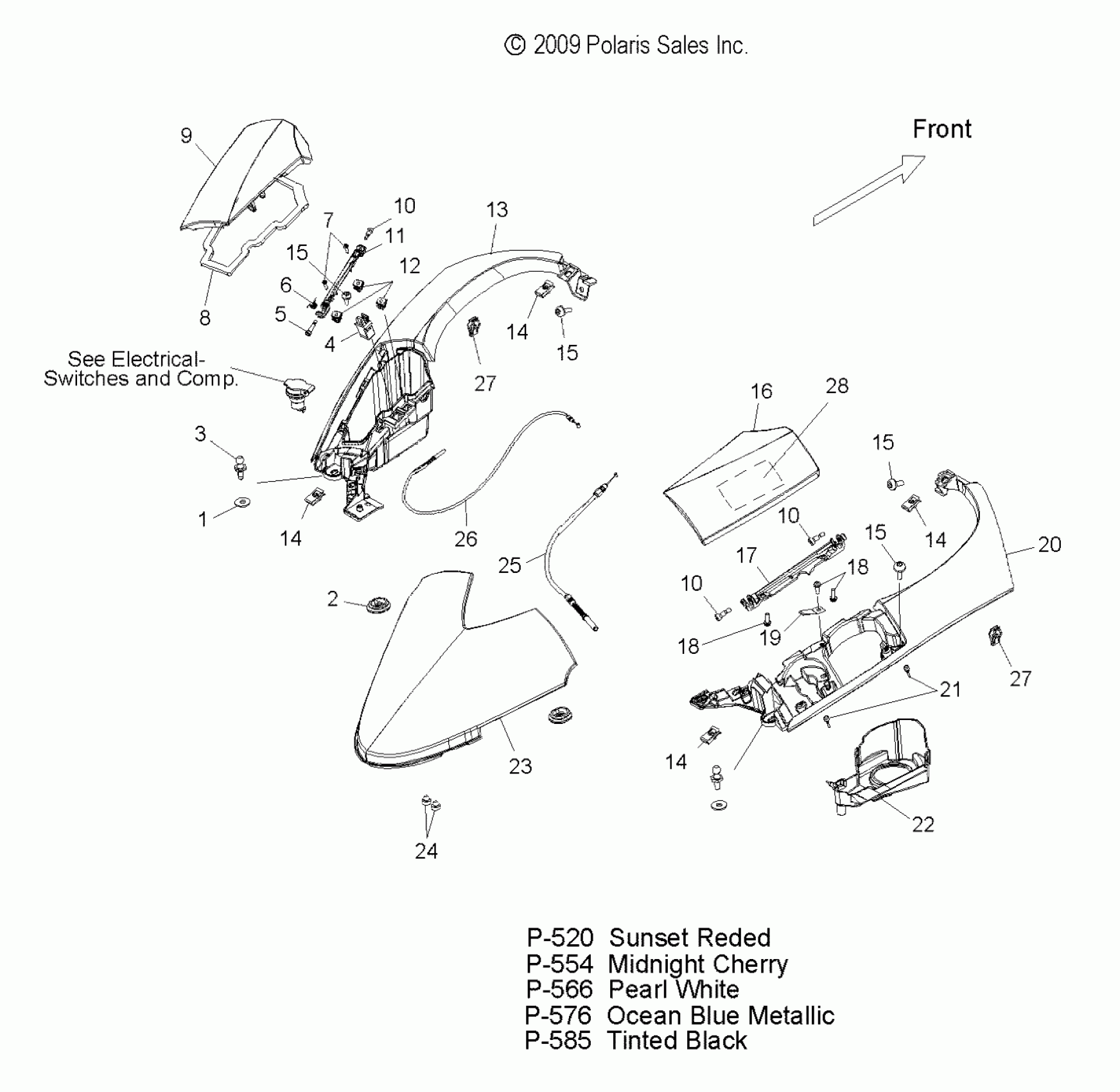

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 BODY, TANK COVER - V10SD36/SC36/VB36 ALL OPTIONS (49VICTANKCVR10VN) Diagram

#

Description
Price

1

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

2

GROMMET-SIDE COVER

5433833

$4.21

3

STUD-BALL,DAMPER

5135170

$7.14

4

LATCH-STORAGE,PUSH

2633518

$49.99

5

SCREW

7518777

Unavailable

6

SPRING, STORAGE, TORSION

7043317

$5.65

7

Screw

7518590

$3.17

8

SEAL, LID, STORAGE

5521726

Unavailable

9

Panel, Door, Storage, LH

5437268-554

Unavailable

9

PANEL, DOOR, STORAGE, LH

5437268-520

Unavailable

9

PANEL, DOOR, STORAGE, LH

5437268-566

$164.99

9

Panel, Door, Storage, LH

5437268-585

Unavailable

9

Panel, Door, Storage, LH

5437268-576

Unavailable

10

SCREW

7518776

Unavailable

10

SCREW

7518776

Unavailable

10

SCREW

7518776

Unavailable

11

BRACKET, PIVOT, LH

5632191

Unavailable

12

NUT, PAL

7547324

$3.97

13

MAT, STORAGE

5813181

Unavailable

13

Panel, Tank Cover, LH [Incl. 27]

5438102-585

$216.99

13

PANEL, TANK COVER, LH [INCL. 27]

5438102-566

Unavailable

13

PANEL, TANK COVER, LH [INCL. 27]

5438102-520

Unavailable

13

Panel, Tank Cover, LH [Incl. 27]

5438102-576

$160.99

13

Panel, Tank Cover, LH [Incl. 27]

5438102-554

$175.99

14

CLIP-U SPEED NUT

7081305

$1.98

14

CLIP-U SPEED NUT

7081305

$1.98

14

CLIP-U SPEED NUT

7081305

$1.98

14

CLIP-U SPEED NUT

7081305

$1.98

15

SCREW

7518484

$4.76

15

SCREW

7518484

$4.76

15

SCREW

7518484

$4.76

15

SCREW

7518484

$4.76

16

Panel, Door, Fuel, RH

5436417-554

$209.99

16

PANEL, DOOR, FUEL, RH

5436417-520

Unavailable

16

Panel, Door, Fuel, RH

5436417-585

$209.99

16

PANEL, DOOR, FUEL, RH

5436417-566

$209.99

16

Panel, Door, Fuel, RH

5436417-576

$59.52

17

BRACKET, PIVOT, RH

5632192

Unavailable

18

SCREW

7518641

$3.17

18

SCREW

7518641

$3.17

19

SPRING, STEEL

5249661

Unavailable

20

Panel, Tank Cover, RH [Incl. 27]

5436416-554

$174.99

20

PANEL, TANK COVER, RH [INCL. 27]

5436416-520

$249.99

20

Panel, Tank Cover, RH [Incl. 27]

5436416-585

$159.99

20

PANEL, TANK COVER, RH [INCL. 27]

5436416-566

$175.99

20

Panel, Tank Cover, RH [Incl. 27]

5436416-576

$154.99

21

BUMPER, GROMMET

5413033

$4.03

22

LINER, FUEL TRAY

5412946

$32.37

23

Panel, Cover, Airbox

5436418-554

$234.99

23

Panel, Cover, Airbox

5436418-576

Unavailable

23

PANEL, COVER, AIRBOX

5436418-520

Unavailable

23

PANEL, COVER, AIRBOX

5436418-566

Unavailable

23

Panel, Cover, Airbox

5436418-585

Unavailable

24

BUMPER, GROMMET

5411323

$3.17

25

CABLE, FUEL RELEASE

7081338

$28.32

26

CABLE, STORAGE RELEASE

7081337

$28.32

27

CLIP, TRIM

7081303

$1.19

27

CLIP, TRIM

7081303

$1.19

28

DECAL, NOZZLE, GAS

7176166

Unavailable
