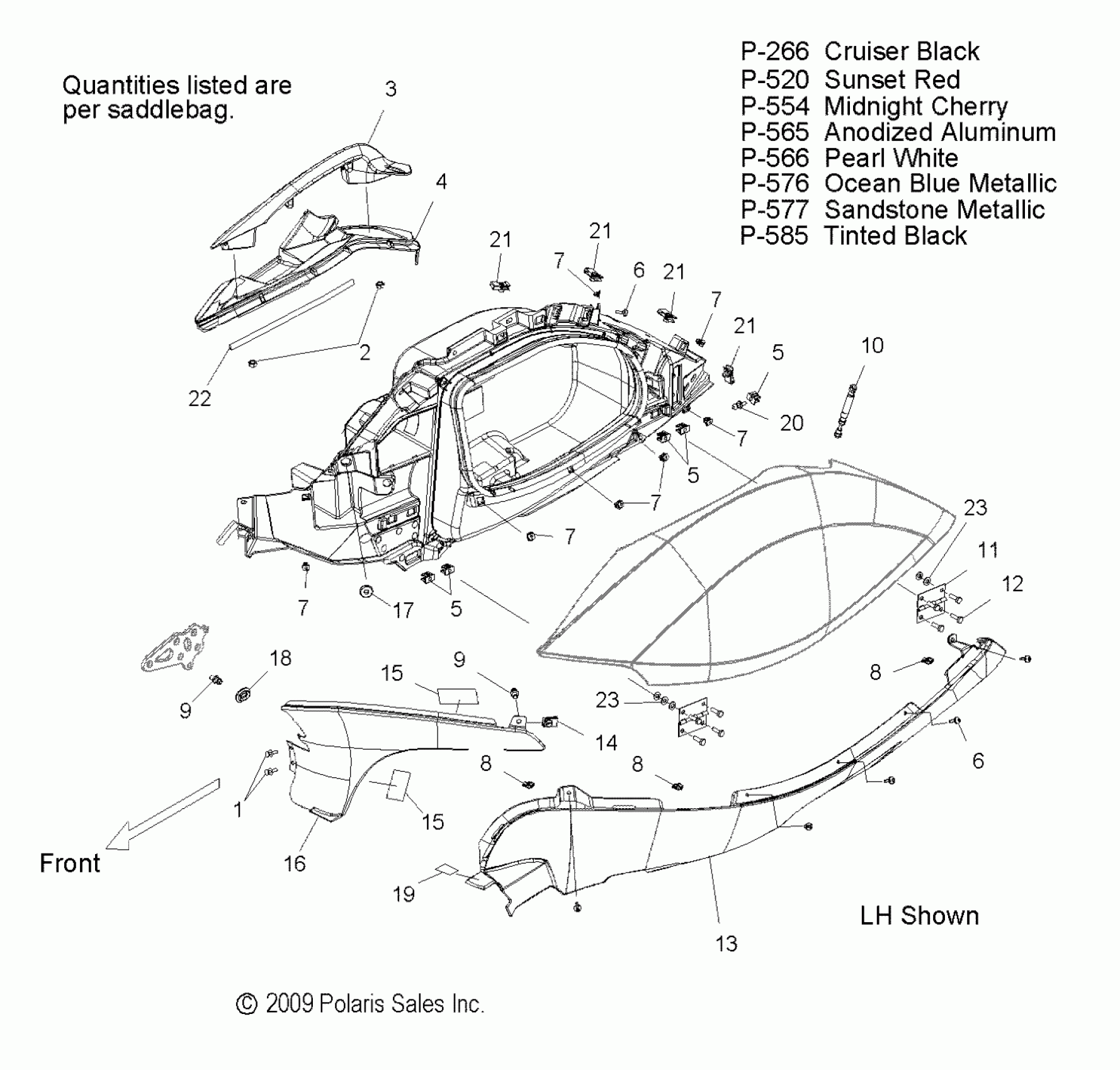

Polaris VISION TOUR PREMIUM/NESS/8 BALL ALL OPTIONS - V10SD36/SC36/VB36 BODY, SADDLEBAG ASM. - V10SD36/SC36/VB36 ALL OPTIONS (49VICSADDLEBAG10VN) Diagram

#

Description
Price

1

RIVET, PLASTIC

7661927

$1.19

2

NUT

7547076

$2.60

3

Handle, Passenger, RH, ANDZ AL

5436169-565

$71.41

3

Handle, Passenger, LH, ANDZ AL

5436168-565

$71.41

3

Handle, Passenger, LH, Black [Ness and 8 Ball Only]

5436168-266

$211.51

3

Handle, Passenger, RH, Black [Ness and 8 Ball Only]

5436169-266

$229.37

3

Handle, Passenger, LH, Sandstone Metallic

5436168-577

$221.43

3

Handle, Passenger, RH, Sandstone Metallic

5436169-577

$106.35

4

Panel, Closeout, Handhold, LH

5437847-554

$108.99

4

PANEL, CLOSEOUT, HANDHOLD, LH

5437847-520

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, RH

5437848-520

$194.99

4

Panel, Closeout, Handhold, RH

5437848-554

$108.99

4

PANEL, CLOSEOUT, HANDHOLD, RH

5437848-566

$196.17

4

Panel, Closeout, Handhold, LH

5437847-585

$157.13

4

PANEL, CLOSEOUT, HANDHOLD, LH

5437847-566

$205.99

4

Panel, Closeout, Handhold, RH

5437848-585

$177.13

4

Panel, Closeout, Handhold, LH

5437847-576

$128.99

4

Panel, Closeout, Handhold, RH

5437848-576

$49.21

5

CLIP, EXPANSION

7081304

$7.14

5

CLIP, EXPANSION

7081304

$7.14

5

CLIP, EXPANSION

7081304

$7.14

6

SCREW

7518518

$1.59

6

SCREW

7518518

$1.59

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

8

CLIP, TRIM

7081303

$1.19

8

CLIP, TRIM

7081303

$1.19

8

CLIP, TRIM

7081303

$1.19

9

STUD

7519139

$24.99

9

STUD

7519139

$24.99

10

Damper, Saddlebag, Lid [Tour Only]

7043173

$48.56

10

Cable, Saddlebag, Stop [8 Ball Only]

7081592

$32.37

11

HINGE, SADDLEBAG

2633552

Unavailable

12

SCREW

7518591

$3.79

13

Panel, Saddlebag, Lower, RH

5436211-554

$247.99

13

Panel, Saddlebag, Lower, LH

5436210-554

$247.99

13

PANEL, SADDLEBAG, LOWER, LH

5436210-585

Unavailable

13

PANEL, SADDLEBAG, LOWER, RH

5436211-585

$639.99

13

Panel, Saddlebag, Lower, LH

5436210-520

Unavailable

13

Panel, Saddlebag, Lower, RH

5436211-520

$571.41

13

Panel, Saddlebag, Lower, LH

5436210-566

Unavailable

13

Panel, Saddlebag, Lower, RH

5436211-566

$304.75

13

Panel, Saddlebag, Lower, LH

5436210-576

Unavailable

13

Panel, Saddlebag, Lower, RH

5436211-576

Unavailable

14

U-NUT

7547342

$10.32

15

Strip, Rubber, Side Cover

5413059

$1.35

15

Strip, Rubber, Side Cover

5413059

$1.35

16

Cover, Side, Trim, LH, BRU

5436212-411

Unavailable

16

Cover, Side, Trim, RH, BRU

5436213-411

Unavailable

16

Cover, Side, Trim, LH, Cherry

5438167-554

$118.65

16

Cover, Side, Trim, RH, Cherry

5438168-554

$118.65

16

Cover, Side, Trim, LH, Ocean Blue

5438167-576

$118.65

16

Cover, Side, Trim, RH, Ocean Blue

5438168-576

$118.65

17

GROMMET-ROUND

5413055

$1.59

18

GROMMET, SIDE COVER

5413037

$9.99

19

Rhino Hide, Saddlebag, Lower

5813272

$11.51

20

Screw [8 Ball Only]

7518484

$4.76

20

STUD-BALL,DAMPER [Tour Only]

5135170

$7.14

21

CLIP-U SPEED NUT

7081305

$1.98

21

CLIP-U SPEED NUT

7081305

$1.98

21

CLIP-U SPEED NUT

7081305

$1.98

21

CLIP-U SPEED NUT

7081305

$1.98

22

TRIM, EDGE, 22 MM

8360079

Unavailable

22

TRIM, EDGE, 580 MM

8360078

$28.32

23

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

23

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22
