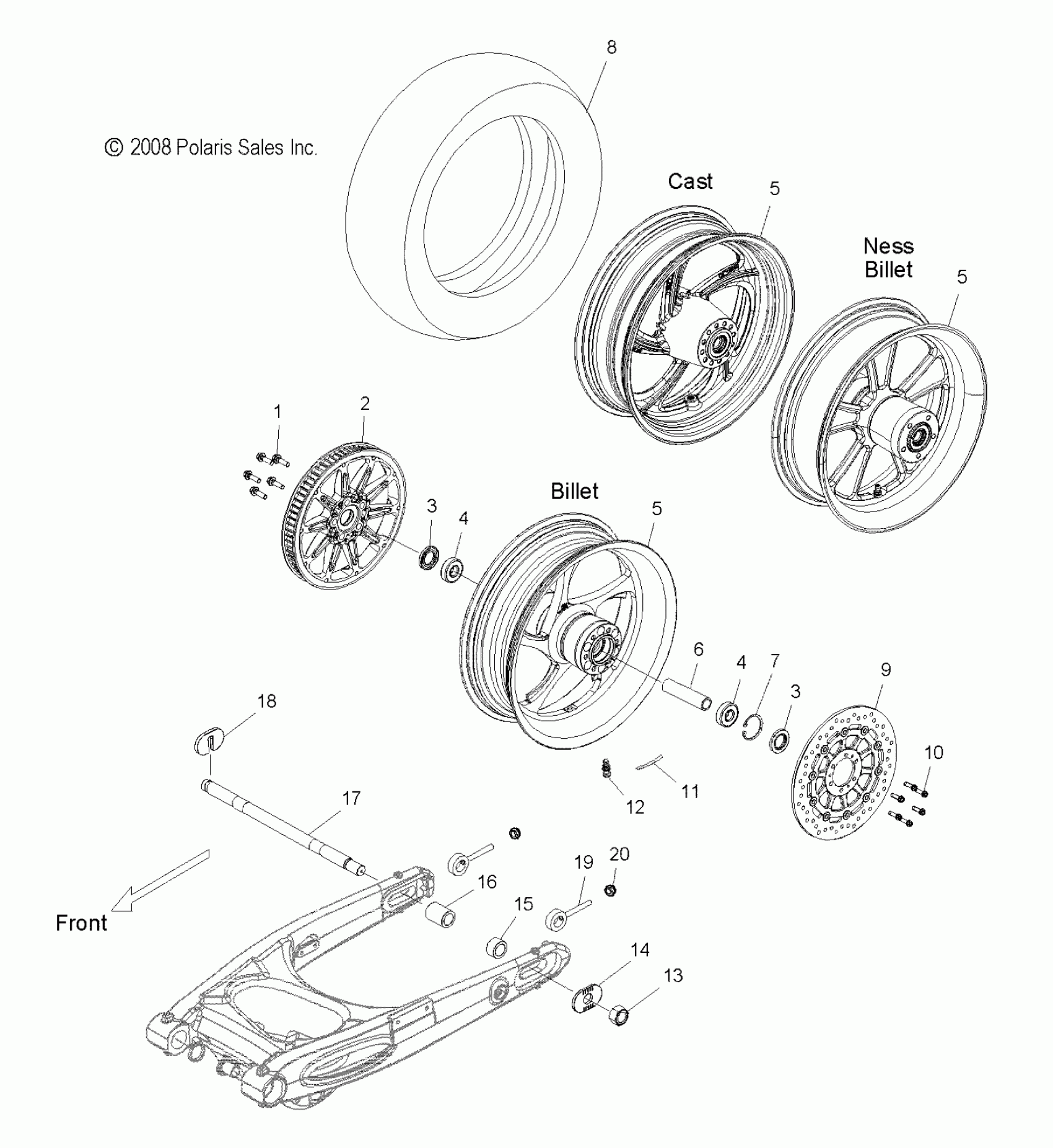

Polaris VISION STREET/NESS/TOURING/10TH ANN. - V09SB36/SC36/SD36/SZ36 WHEELS, REAR - V09SB36/SC36/SD36/SZ36 ALL OPTIONS (49VICWHEELRR09VN) Diagram

SCREW

7518878

$4.76

Asm., Sprocket, Driven, 70T

1332399-553

Unavailable

Kit, Sprocket, Billet, Anvil, Chrome

2876131-156

Unavailable

SEAL

3610094

$31.75

SEAL

3610094

$31.75

BEARING, BALL

3514405

$19.84

BEARING, BALL

3514405

$19.84

Asm., Wheel, Billet, Rear

1521038-405

$1,559.99

Asm., Wheel, Rear, Billet, Hotrod [Ness]

1521265

$1,434.99

Asm., Wheel, Cast, Rear

1521387-385

Unavailable

Asm., Wheel, Billet, Rear

1521038-405

$1,559.99

Asm., Wheel, Rear, Billet, Hotrod [Ness]

1521265

$1,434.99

Asm., Wheel, Cast, Rear

1521387-385

Unavailable

Asm., Wheel, Billet, Rear

1521038-405

$1,559.99

Asm., Wheel, Rear, Billet, Hotrod [Ness]

1521265

$1,434.99

Asm., Wheel, Cast, Rear

1521387-385

Unavailable

Spacer, Bearing

5334863

$48.41

Ring, Retaining

7710526

$10.32

TIRE, 180/60R16

5413397

Unavailable

Rotor, Brake, Rear, 7mm

1910940-385

$324.99

SCREW

7518661

$1.59

Weight, Balance

1520618

Unavailable

Valve, Rim [Use w/Cast Wheel Only]

1520232

$3.17

Valve, Rim, Chrome [Use w/Billet Wheel Only]

1520995

Unavailable

NUT

7547226

$23.81

WASHER, INDICATOR, AXLE

5248452-236

$27.78

SPACER, BEARING, LH

5631479

$3.97

SPACER, WHEEL, REAR, RH

5631581

$11.99

Axle, Rear

5136053

$63.49

RETAINER, AXLE, REAR

5248599

$27.78

ADJUSTER, AXLE

1014895

$36.41

NUT-NYLOCK M8X1.25-Y

7547144

$3.17
