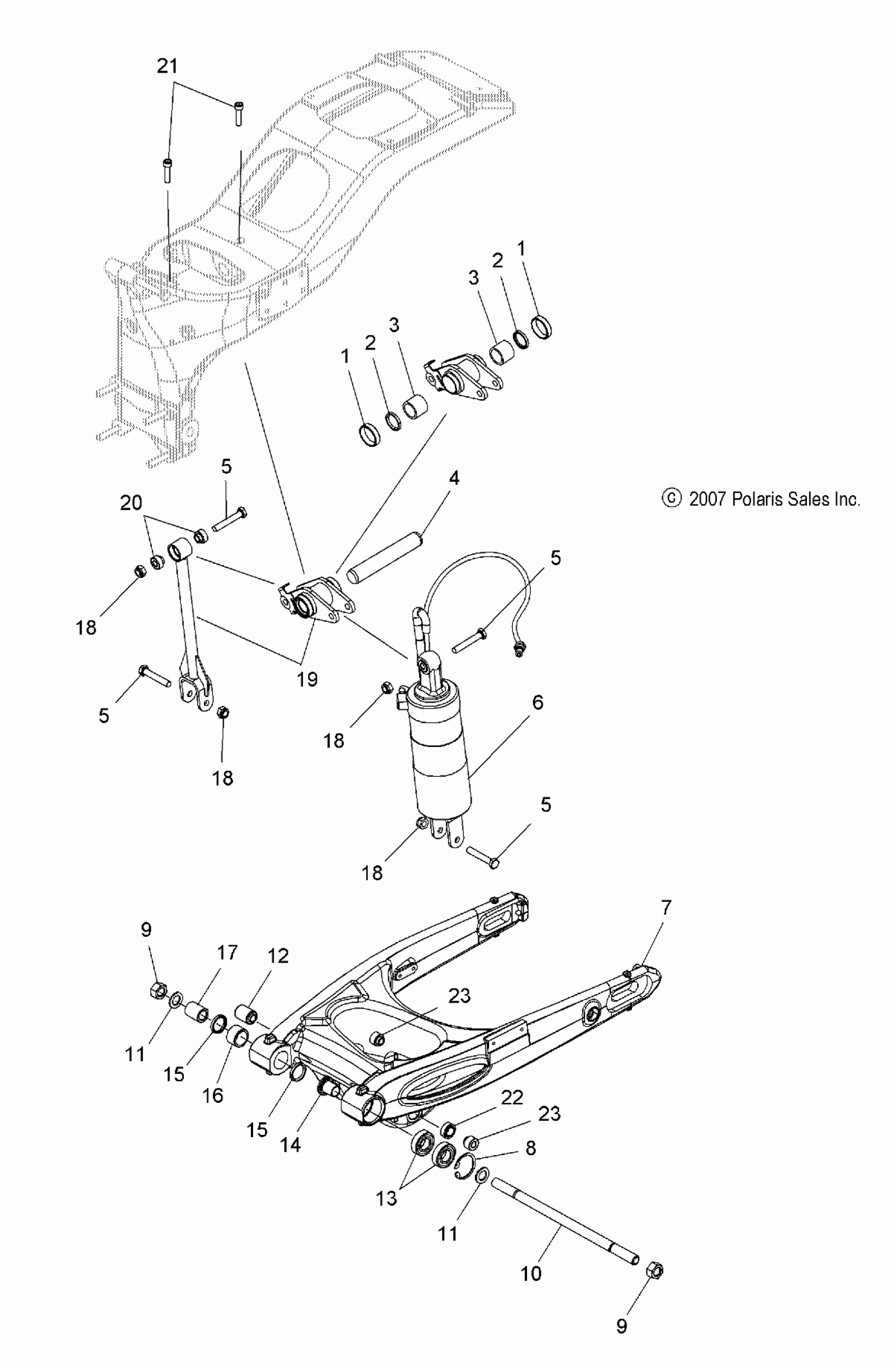

Polaris VISION STREET/NESS/TOURING/10TH ANN. - V09SB36/SC36/SD36/SZ36 SUSPENSION, REAR ASM., SWING ARM and SHOCK - V09SB36/SC36/SD36/SZ36 ALL OPTIONS (49VICSUSPRR08VN) Diagram

#

Description
Price

1

BEARING, THRUST

3514545

$6.35

1

BEARING, THRUST

3514545

$6.35

2

SEAL

3610096

$11.90

2

SEAL

3610096

$11.90

3

BEARING, NEEDLE ROLLER

3514544

$23.81

3

BEARING, NEEDLE ROLLER

3514544

$23.81

4

PIVOT, ROCKER

5135513

$64.99

5

SCR-HEXHD,M10X60,0600088

7517988

$3.78

5

SCR-HEXHD,M10X60,0600088

7517988

$3.78

5

SCR-HEXHD,M10X60,0600088

7517988

$3.78

5

SCR-HEXHD,M10X60,0600088

7517988

$3.78

6

Shock, KYB, Air

1542394

$904.99

7

Asm., Swing Arm w/Bearings [Incl. 8,12,13,15,16,22,23]

1015293

Unavailable

8

RING, RETAINING

7670149

$7.14

9

NUT

7540001

$4.76

9

NUT

7540001

$4.76

10

Pivot, Suspension

5135226

$106.49

11

WASHER, FLAT

7556236

$7.14

11

WASHER, FLAT

7556236

$7.14

12

Bushing, Swing Arm

5412944

$109.99

13

BEARING, BALL

3514414

Unavailable

14

BUSHING, SWING ARM

5631478

Unavailable

15

SEAL

3610096

$11.90

15

SEAL

3610096

$11.90

16

BEARING, NEEDLE ROLLER

3514413

Unavailable

17

Bushing, Swing Arm Needle Bearing

5133475

Unavailable

18

NUT, NYLOK

7547268

$1.19

18

NUT, NYLOK

7547268

$1.19

18

NUT, NYLOK

7547268

$1.19

18

NUT, NYLOK

7547268

$1.19

19

Kit, Pushrod, Rocker

2876903

$452.37

20

Spacer, Bearing, Sperical

5135244

Unavailable

21

SCREW

7517361

$23.81

22

BEARING, SPHERICAL

3514547

$39.68

23

SPACER, BEARING, SPHERICAL

5136092

$32.37

23

SPACER, BEARING, SPHERICAL

5136092

$32.37
