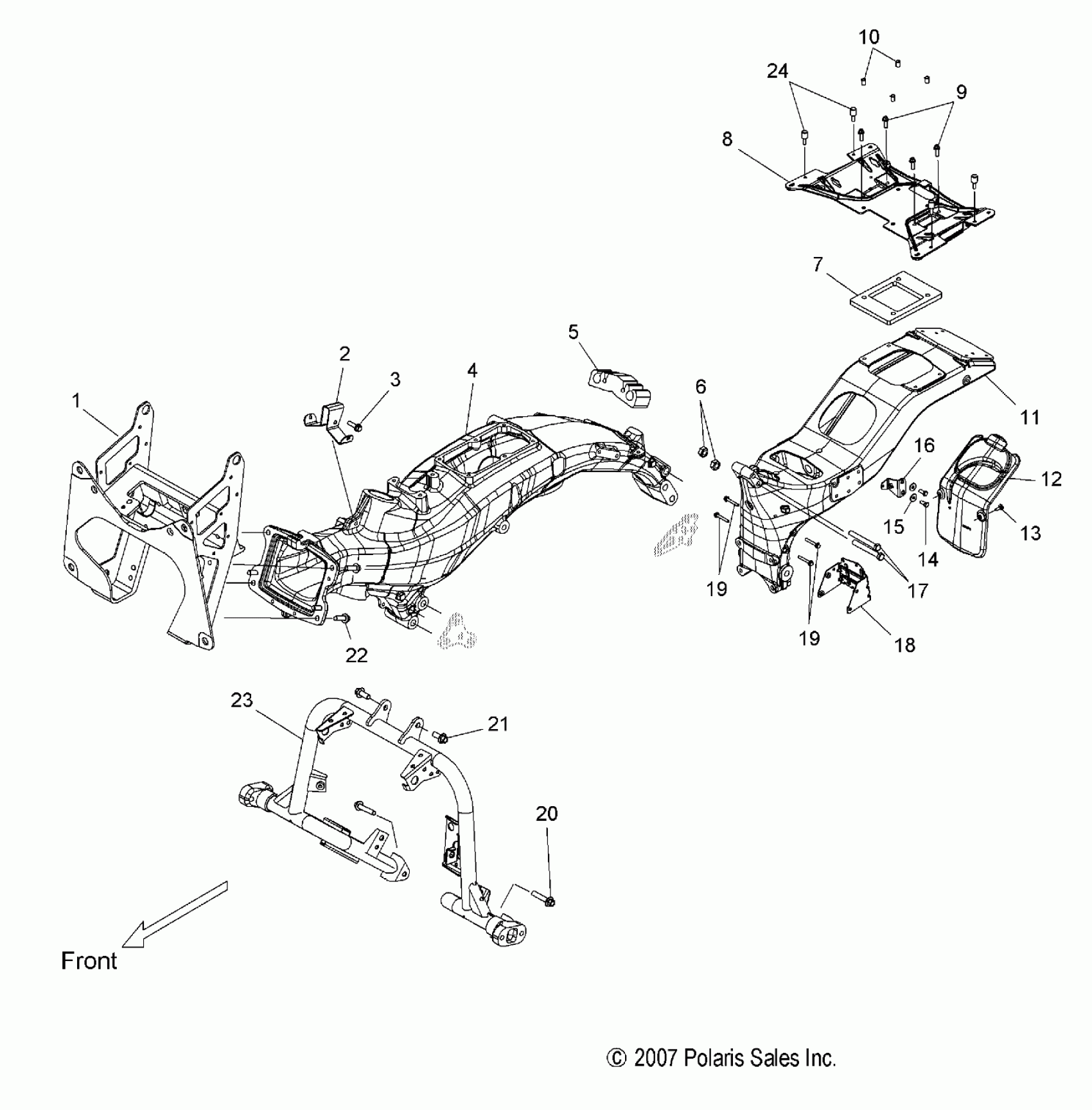

Polaris VISION STREET/NESS/TOURING/10TH ANN. - V09SB36/SC36/SD36/SZ36 CHASSIS, FRAME - V09SB36/SC36/SD36/SZ36 ALL OPTIONS (49VICFRAME08VN) Diagram

#

Description
Price

1

Subframe, Cockpit

1016017

Unavailable

2

MOUNT, RETAINER

1015647

Unavailable

3

BOLT

7518576

$3.19

4

ASM., AIRBOX, FRAME

1015629

Unavailable

5

Cover, Foam, Wire Mounting

5813083

$21.79

6

NUT

7547232

$23.99

7

FOAM, SUBFRAME SEAL

5813251

Unavailable

8

SUPPORT, SADDLEBAG [INCL. 10]

5135560

Unavailable

9

SCREW

7518569

$3.99

10

INSERT

7547407

Unavailable

11

FRAME, MAIN, REAR

5136288

Unavailable

12

FLAP, DEBRIS

5813054

Unavailable

13

SCREW

7518484

$4.79

14

Screw

7518097

$3.99

15

WASHER, FLAT

7555960

$3.99

16

PLATE, NUT

1015484

Unavailable

17

SCREW

7518125

$11.19

18

Bracket, Cruise Control

1016623

Unavailable

19

SCREW [2 PER SIDE]

7517950

$5.59

19

SCREW [2 PER SIDE]

7517950

$5.59

20

SCREW

7517881

$1.99

21

SCREW

7517458

Unavailable

22

SCREW

7518569

$3.99

23

Frame, Lower, Front

1016036-067

Unavailable

24

BUMPER, HANDLE CLOSEOUT

5412969

Unavailable
