- VISION/ANESS ALL OPTIONS - V13SW36/AW36
BODY, SADDLEBAG ASM. - V13SW36/AW36 ALL OPTIONS (49VICSADDLEBAG13VN)

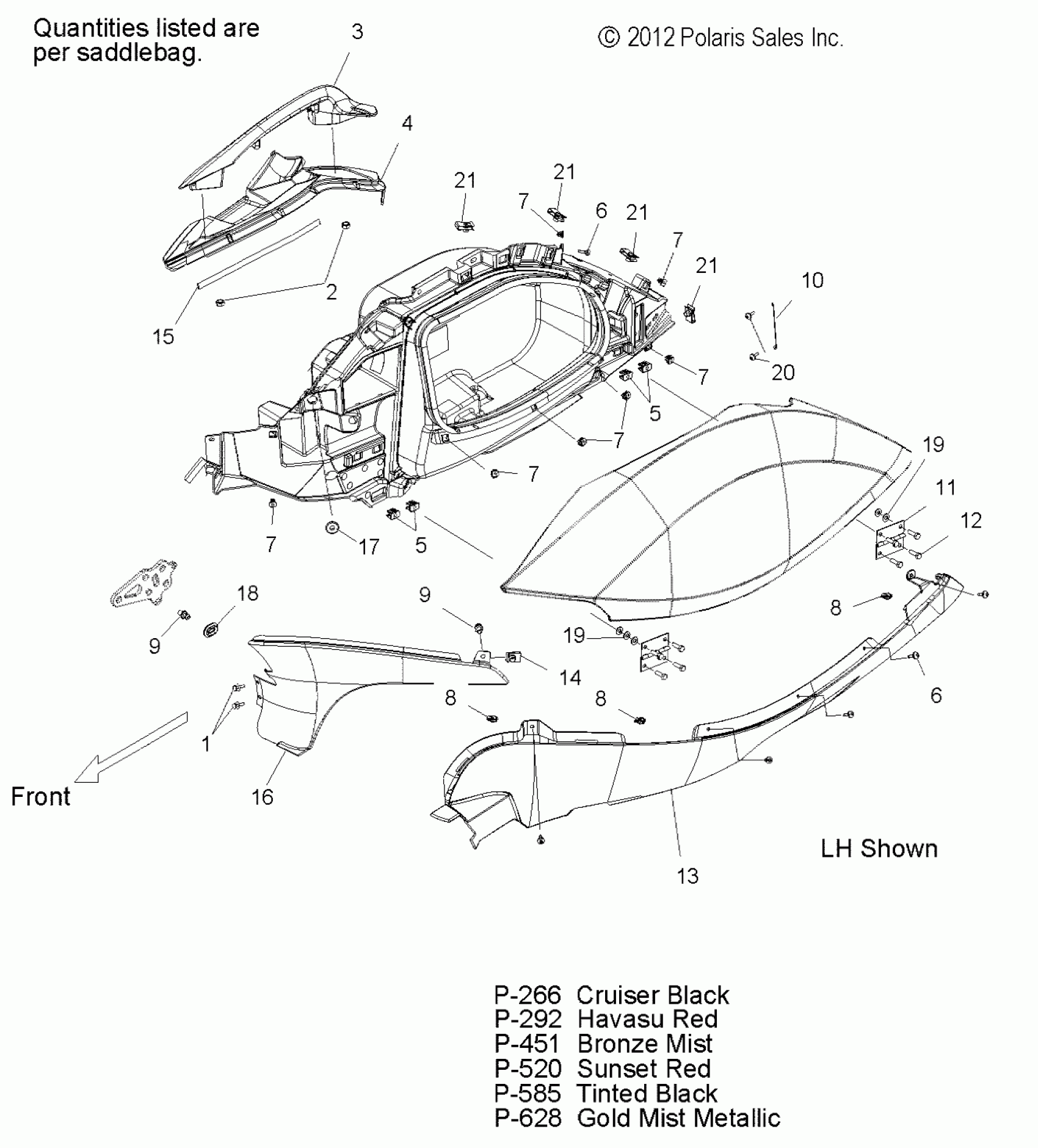

Polaris VISION/ANESS ALL OPTIONS - V13SW36/AW36 BODY, SADDLEBAG ASM. - V13SW36/AW36 ALL OPTIONS (49VICSADDLEBAG13VN) Diagram
#
1
RIVET, PLASTIC
7661927
$1.49
2
NUT
7547076
$2.60
3
HANDLE, PASSENGER, LH
5438782
Unavailable
3
HANDLE, PASSENGER, RH
5438783
Unavailable
4
PANEL, CLOSEOUT, HANDHOLD, LH
5437847-266
Unavailable
4
PANEL, CLOSEOUT, HANDHOLD, LH
5437847-520
Unavailable
4
PANEL, CLOSEOUT, HANDHOLD, RH
5437848-266
Unavailable
4
PANEL, CLOSEOUT, HANDHOLD, RH
5437848-520
Unavailable
4
Panel, Closeout, Handhold, LH
5437847-292
Unavailable
4
Panel, Closeout, Handhold, LH
5437847-628
Unavailable
4
Panel, Closeout, Handhold, RH
5437848-292
Unavailable
4
Panel, Closeout, Handhold, RH
5437848-628
Unavailable
5
CLIP, EXPANSION
7081304
$7.19
5
CLIP, EXPANSION
7081304
$7.19
6
SCREW
7518518
$1.59
6
SCREW
7518518
$1.59
7
NUT, PAL
7547324
$3.99
7
NUT, PAL
7547324
$3.99
7
NUT, PAL
7547324
$3.99
7
NUT, PAL
7547324
$3.99
7
NUT, PAL
7547324
$3.99
7
NUT, PAL
7547324
$3.99
8
CLIP, TRIM
7081303
Unavailable
8
CLIP, TRIM
7081303
Unavailable
8
CLIP, TRIM
7081303
Unavailable
9
STUD
7519139
Unavailable
9
STUD
7519139
Unavailable
10
CABLE, SADDLEBAG, STOP
7081592
Unavailable
11
HINGE, SADDLEBAG
2633552
Unavailable
12
SCREW
7518591
$3.73
13
PANEL, SADDLEBAG, LOWER, LH
5436210-266
Unavailable
13
PANEL, SADDLEBAG, LOWER, RH
5436211-266
Unavailable
13
PANEL, SADDLEBAG, LOWER, LH
5436210-585
Unavailable
13
PANEL, SADDLEBAG, LOWER, RH
5436211-585
Unavailable
13
Panel, Saddlebag, Lower, LH
5436210-451
Unavailable
13
Panel, Saddlebag, Lower, RH
5436211-451
Unavailable
14
U-NUT
7547342
Unavailable
15
TRIM, EDGE, 22 MM
8360079
Unavailable
15
TRIM, EDGE, 580 MM
8360078
Unavailable
16
Cover, Side, LH
5450228-292
Unavailable
16
COVER, SIDE, LH
5450228-266
Unavailable
16
Cover, Side, RH
5450229-628
Unavailable
16
COVER, SIDE, LH
5450228-520
Unavailable
16
COVER, SIDE, RH
5450229-520
Unavailable
16
Cover, Side, LH
5450228-628
Unavailable
16
Cover, Side, RH
5450229-292
Unavailable
16
COVER, SIDE, RH
5450229-266
Unavailable
17
GROMMET-ROUND
5413055
$1.59
18
GROMMET, SIDE COVER
5413037
Unavailable
19
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
19
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
20
SCREW
7518484
$4.79
21
CLIP-U SPEED NUT
7081305
$1.99
21
CLIP-U SPEED NUT
7081305
$1.99
21
CLIP-U SPEED NUT
7081305
$1.99
21
CLIP-U SPEED NUT
7081305
$1.99
