Partiron

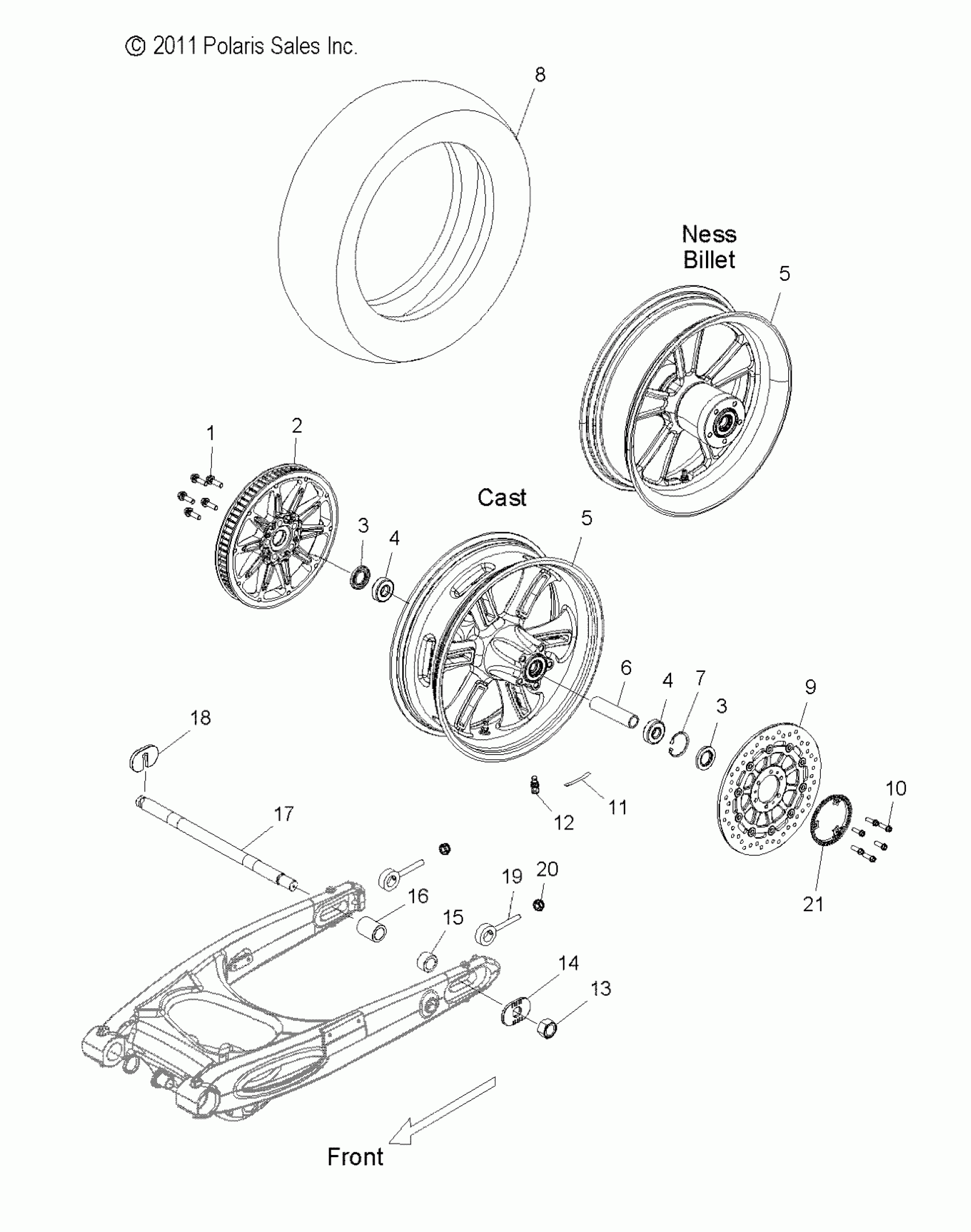

Polaris VISION/ANESS ALL OPTIONS - V12SW36/AW36 WHEELS, REAR - V12SW36/AW36 ALL OPTIONS (49VICWHEELRR12VN) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

ASM., SPROCKET, DRIVEN, 70T, BLACK ENGINE WRINKLE

1332399-521

$554.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

ASM., WHEEL, CAST, REAR, TR, BLACK

1521384-266

Unavailable

5

Asm., Wheel, Rear, Nessv, Hotrod, Polished Aluminum

1521608-405

$1,599.99

5

ASM., WHEEL, CAST, REAR, TR, BLACK

1521384-266

Unavailable

5

Asm., Wheel, Rear, Nessv, Hotrod, Polished Aluminum

1521608-405

$1,599.99

6

SPACER, BEARING, WHEEL, REAR, MID

5335811

$34.99

6

Spacer, Bearing [Ness]

5334863

$48.41

7

Ring, Retaining

7710526

$10.32

8

TIRE, 180/60R16

5413397

Unavailable

9

Rotor, Brake, Rear, 7mm, Black

1911692-266

$379.99

10

SCREW

7518661

$1.59

11

WEIGHT, BALANCE, BLACK

1521682

Unavailable

12

VALVE, RIM

1521312

$11.32

12

Valve, Rim [Ness]

1521515

Unavailable

13

NUT

7547226

$23.81

14

WASHER, INDICATOR, AXLE

5248452-236

$27.78

15

SPACER, BEARING, LH

5631479

$3.97

16

SPACER, WHEEL, REAR, RH

5631581

$11.99

17

AXLE, REAR

5137446

$63.49

18

RETAINER, AXLE, REAR

5248599

$27.78

19

ADJUSTER, AXLE

1014895

$36.41

20

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

21

RING, TONE, ABS

5632541

$31.75
