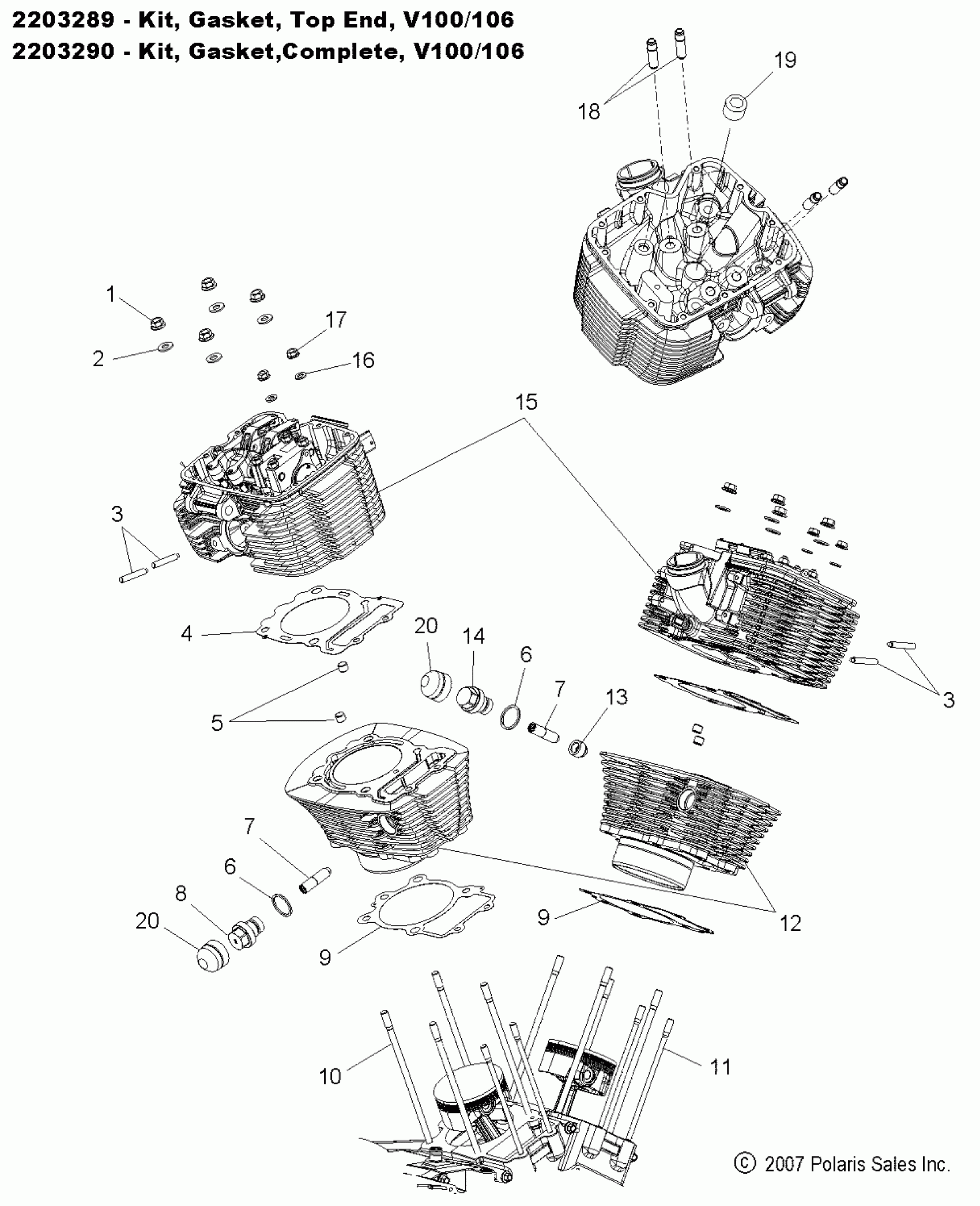

Polaris VISION/ANESS ALL OPTIONS - V12SW36/AW36 ENGINE, CYLINDER and HEAD - V12SW36/AW36 ALL OPTIONS (49VICCYLINDERHD12VN) Diagram

#

Description
Price

1

NUT

7547017

$5.59

2

WASHER, FLAT

7555986

$10.39

3

STUD, EXHAUST MOUNT

5137389

Unavailable

3

STUD, EXHAUST MOUNT

5137389

Unavailable

4

GASKET, HEAD

5249360

Unavailable

5

DOWEL

7663008

$5.27

6

WASHER, SEALING

7556310

Unavailable

6

WASHER, SEALING

7556310

Unavailable

7

TENSIONER, HYDRAULIC

3021517

Unavailable

7

TENSIONER, HYDRAULIC

3021517

Unavailable

8

PLUG, TENSIONER, REAR

3021923

$48.56

9

GASKET, BASE

5250423

Unavailable

9

GASKET, BASE

5250423

Unavailable

10

STUD, CYLINDER MOUNTING

5134314

Unavailable

11

STUD, CYLINDER MOUNTING

5134315

Unavailable

12

CYLINDER, BLACK

5138800

Unavailable

12

Cylinder, Black Diamond Cut [Ness]

5135553

Unavailable

13

SLEEVE, DAMPER, CAM DRIVE

3021668

Unavailable

14

PLUG, TENSIONER, FRONT

3021922

$48.56

15

Head, Cylinder, Front, Black [Incl. 18,19]

3022599

Unavailable

15

Head, Cylinder, Rear, Black [Incl. 18,19]

3022600

Unavailable

15

Head, Cylinder, Rear, Black Diamond Cut [Ness][Incl. 18,19]

3022431

Unavailable

15

Head, Cylinder, Front, Black Diamond Cut [Ness][Incl. 18,19]

3022430

Unavailable

16

WASHER, FLAT

7556043

Unavailable

17

NUT

7547014

$7.84

18

GUIDE, VALVE

3022319

Unavailable

19

PLUG, EXPANSION

7052288

Unavailable

20

Cover, Cam Drive Screw Plug

5134742

Unavailable

20

Cover, Cam Drive Screw Plug

5134742

Unavailable
