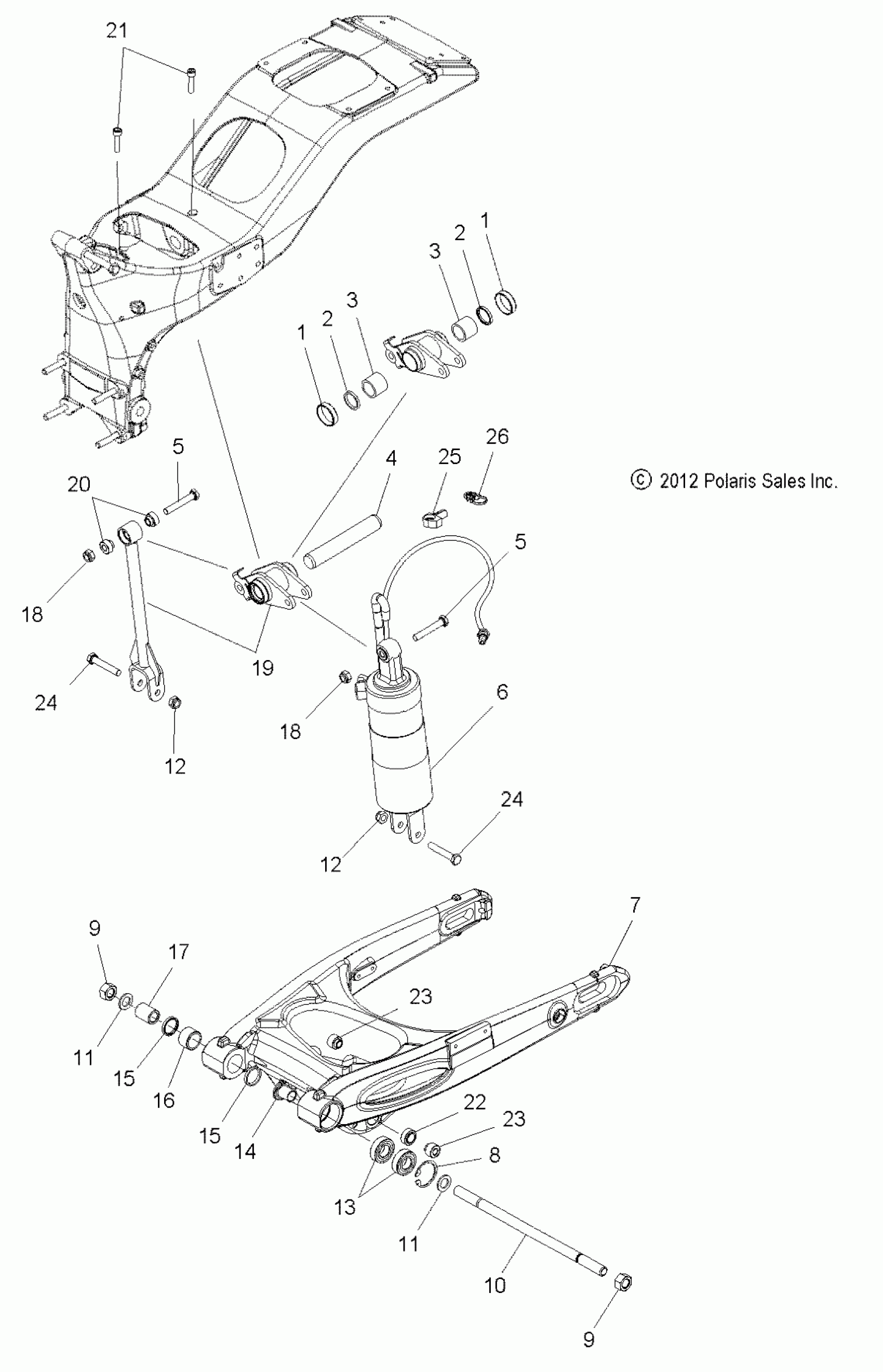

Polaris VISION ALL OPTIONS - V15SW36 SUSPENSION, REAR ASM., SWING ARM and SHOCK - V15SW36 ALL OPTIONS (49VICSUSPRR13VN) Diagram

#

Description
Price

1

BEARING, THRUST

3514545

$6.35

1

BEARING, THRUST

3514545

$6.35

2

SEAL

3610096

$11.90

2

SEAL

3610096

$11.90

3

BEARING, NEEDLE ROLLER

3514544

$23.81

3

BEARING, NEEDLE ROLLER

3514544

$23.81

4

PIVOT, ROCKER

5135513

$64.99

5

SCR-HEXHD,M10X60,0600088

7517988

$3.78

5

SCR-HEXHD,M10X60,0600088

7517988

$3.78

6

SHOCK, KYB, AIR

1542903

$904.99

7

ASM., SWING ARM W/BEARINGS [INCL. 8,13,15,16,22,23]

1016712

Unavailable

8

RING, RETAINING

7670149

$7.14

9

NUT

7540001

$4.76

9

NUT

7540001

$4.76

10

PIVOT, SUSPENSION

5137444

$106.49

11

WASHER, FLAT

7556236

$7.14

11

WASHER, FLAT

7556236

$7.14

12

NUT

7547313

$1.19

12

NUT

7547313

$1.19

13

BEARING, BALL

3514414

Unavailable

14

BUSHING, SWING ARM

5631478

Unavailable

15

SEAL

3610096

$11.90

15

SEAL

3610096

$11.90

16

BEARING, NEEDLE ROLLER

3514413

Unavailable

17

BUSHING, SWING ARM NEEDLE BEARING

5137441

Unavailable

18

NUT, NYLOK

7547268

$1.19

18

NUT, NYLOK

7547268

$1.19

19

KIT, PUSHROD ROCKER [INCL. 5, ROCKER ASM., PUSHROD ASM.]

2877612

Unavailable

20

SPACER, BEARING, SPERICAL

5137695

$10.32

21

SCREW

7517361

$23.81

22

BEARING, SPHERICAL

3514547

$39.68

23

SPACER, BEARING, SPHERICAL

5136092

$32.37

23

SPACER, BEARING, SPHERICAL

5136092

$32.37

24

SCREW

7518291

$3.17

24

SCREW

7518291

$3.17

25

Clip, Silencer

7670102

$2.38

26

DART, HANDLEBAR

5433140

Unavailable
