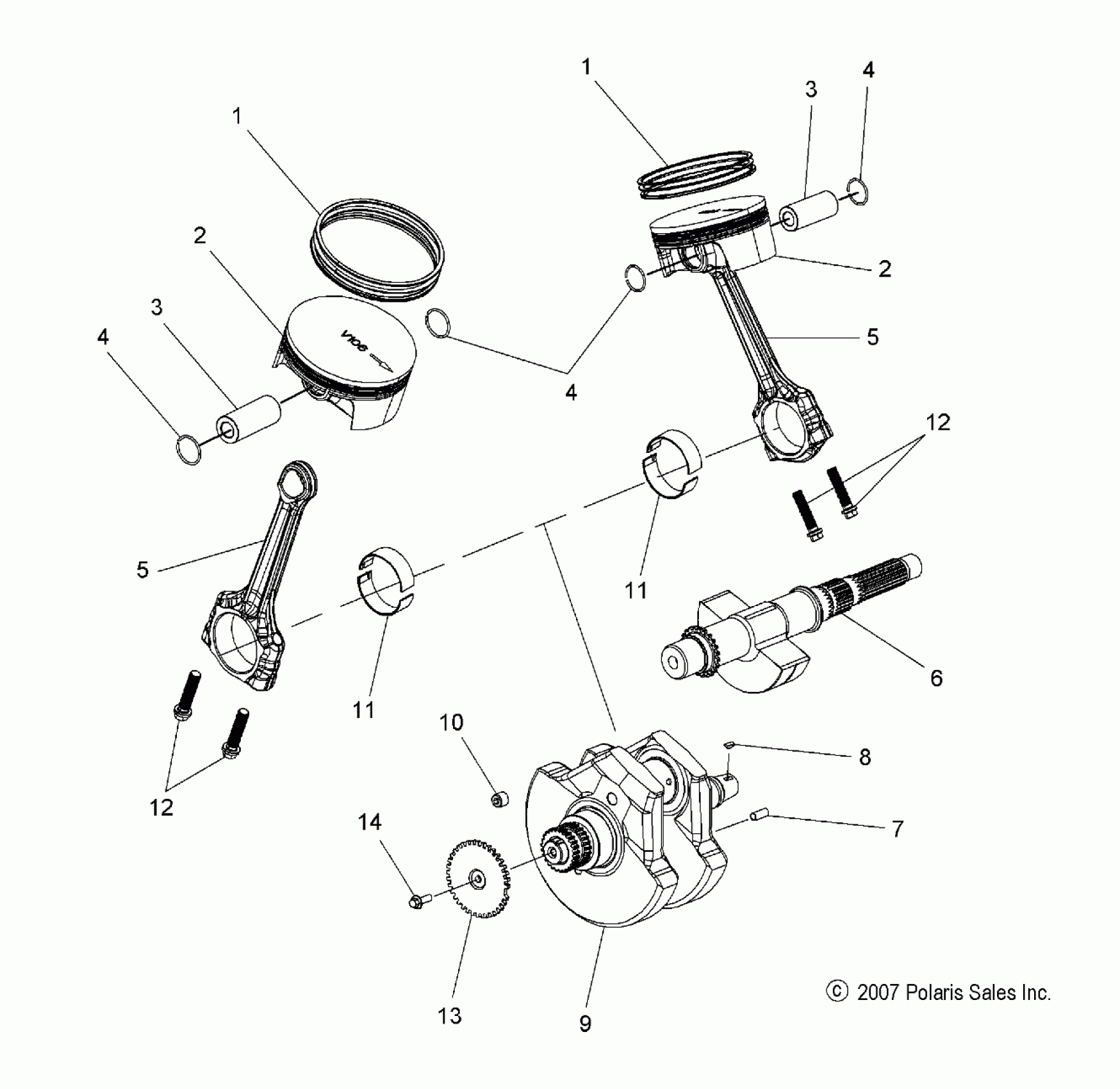

Polaris VISION ALL OPTIONS - V15SW36 ENGINE, CRANKSHAFT and PISTON - V15SW36 ALL OPTIONS (49VICPISTON08VN) Diagram

#

Description
Price

1

KIT, PISTON RING [INCL. TOP, MIDDLE, BOTTOM RINGS]

2203006

$66.65

1

KIT, PISTON RING [INCL. TOP, MIDDLE, BOTTOM RINGS]

2203006

$66.65

2

ASM., PISTON [INCL. PISTON, RINGS, CLIPS, PIN]

3021832

$165.86

2

ASM., PISTON [INCL. PISTON, RINGS, CLIPS, PIN]

3021832

$165.86

3

PIN, WRIST

5131860

$49.99

3

PIN, WRIST

5131860

$49.99

4

RING, RETAINING

7710479

$7.14

4

RING, RETAINING

7710479

$7.14

4

RING, RETAINING

7710479

$7.14

5

ASM., CONNECTING ROD [INCL. 12]

3021663

Unavailable

5

ASM., CONNECTING ROD [INCL. 12]

3021663

Unavailable

6

SHAFT, BALANCE

5137428

$209.51

7

PIN, SOLID

7661045

$10.32

8

KEY-WOODRUFF,4X5

7721122

$7.84

9

ASM., CRANKSHAFT [INCL. 8,10]

3022089

$1,404.99

10

PLUG

7052320

$9.84

11

BEARING, ROD, BLUE

3514390-027

$19.84

11

BEARING, ROD, BLACK

3514390-067

$19.84

11

BEARING, ROD, ORANGE

3514390-159

$19.84

11

BEARING, ROD, BLUE

3514390-027

$19.84

11

BEARING, ROD, BLACK

3514390-067

$19.84

11

BEARING, ROD, ORANGE

3514390-159

$19.84

12

SCREW

7518524

$7.99

12

SCREW

7518524

$7.99

13

WHEEL, TIMING, CRANK POSITION

3021823

$44.51

14

SCREW

7516734

$3.17
