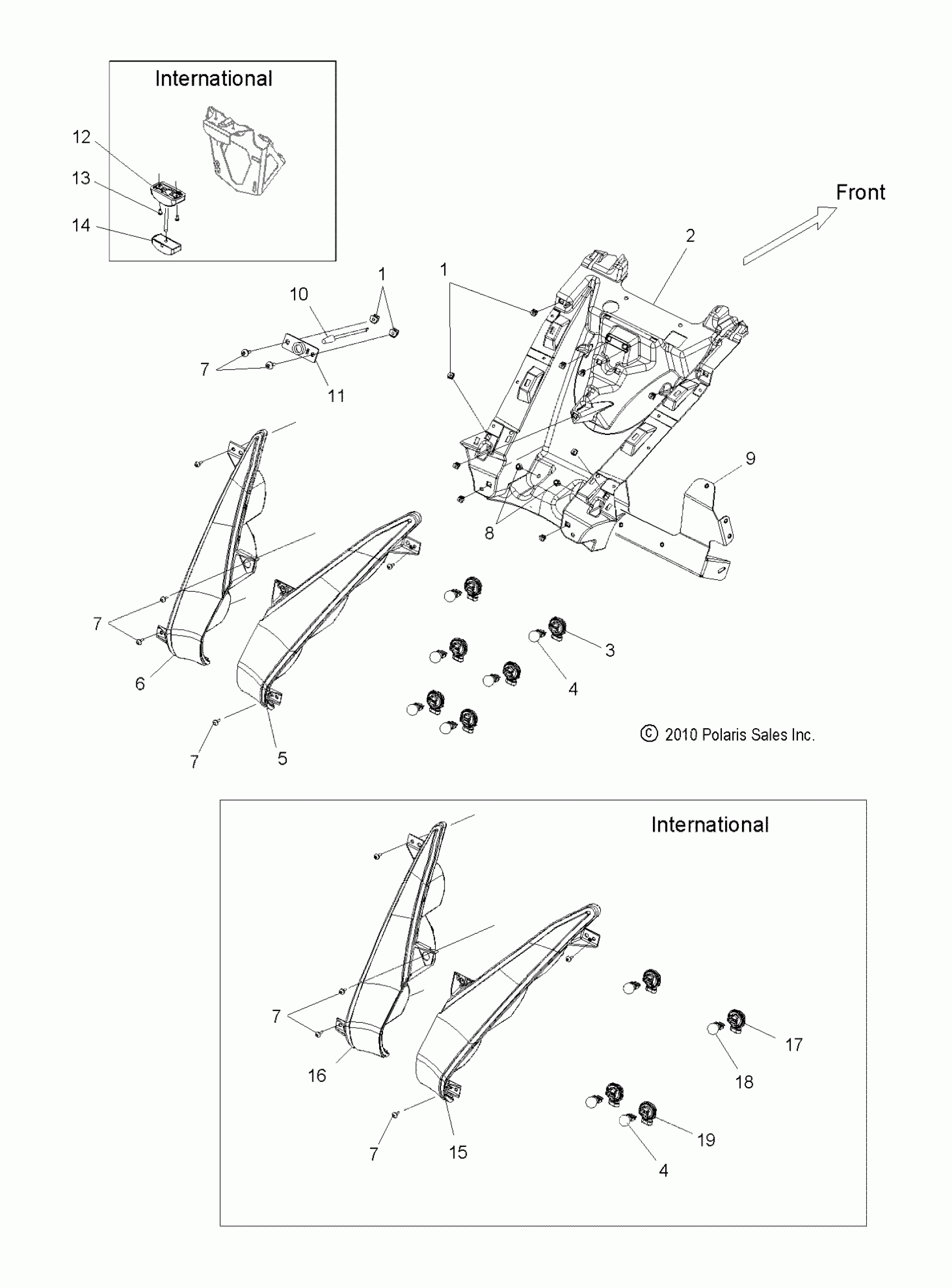

Polaris VISION ALL OPTIONS - V15SW36 ELECTRICAL, TURN SIGNAL, REAR and TAILLIGHT - V15SW36 ALL OPTIONS (49VICSIGNAL11VN) Diagram

#

Description
Price

1

NUT, PAL

7547324

$3.97

1

NUT, PAL

7547324

$3.97

2

TUB, FENDER, REAR

5437132

$164.99

3

SOCKET, TAIL

4011435

$36.41

4

BULB, TAIL/STOP, 27W [QTY. 2 FOR INTL]

4011064

$20.22

4

BULB, TAIL/STOP, 27W [QTY. 2 FOR INTL]

4011064

$20.22

5

ASM., TAIL/STOP/TURN, REAR, RH

2410669

$153.79

6

ASM., TAIL/STOP/TURN, REAR, LH

2410621

$146.83

7

SCREW

7518518

$1.59

7

SCREW

7518518

$1.59

7

SCREW

7518518

$1.59

7

SCREW

7518518

$1.59

7

SCREW

7518518

$1.59

8

SCREW

7518591

$3.79

9

BRACKET, MUFFLER SUPPORT, REAR

5254017-329

$129.99

10

BULB, W5W

4011741

$20.22

10

LIGHT, LICENSE PLATE

2410841

Unavailable

11

BRACKET, LICENSE PLATE LIGHT

5250281

Unavailable

12

HOUSING, LED MOUNT [INTL]

5437972

$7.94

13

SCREW [INTL]

7517486

$5.22

14

LIGHT, LICENSE PLATE, LED [INTL]

2411261

Unavailable

15

SIGNAL, REAR, STOP/TAIL/TURN, RH [INTL]

2411201

Unavailable

16

SIGNAL, REAR, STOP/TAIL/TURN, LH [INTL]

2411200

$154.99

17

SOCKET, ECE, TAIL [INTL]

4012434

Unavailable

18

BULB, ECE, AMBER, 27/7W [INTL]

4012433

$24.99

19

SOCKET, BULB [INTL]

4010767

$36.41
