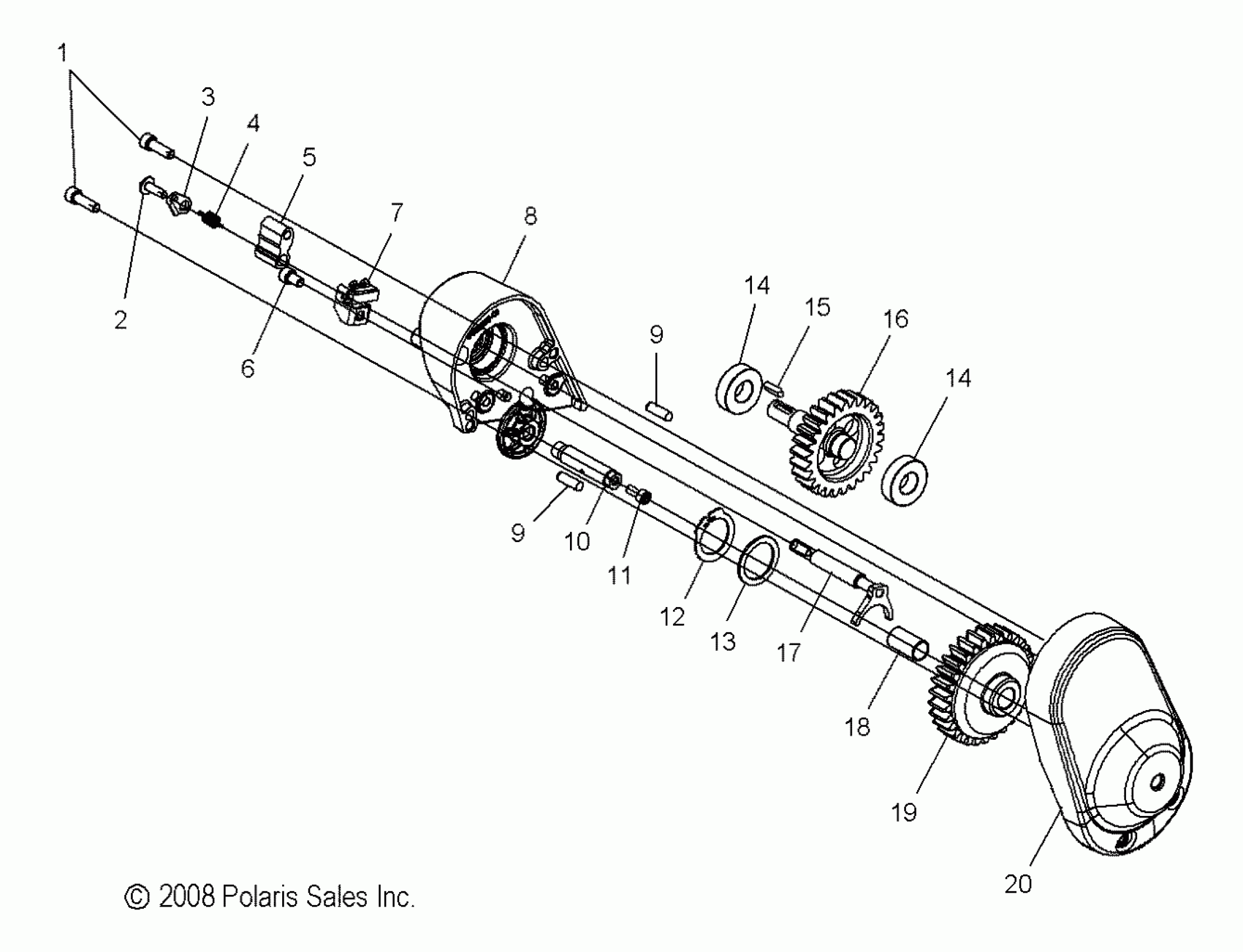

Polaris VISION ALL OPTIONS - V15SW36 DRIVE TRAIN, REVERSE DRIVE ASM., UPPER (INTL) - V15SW36 INTL (49VICRVSDRVASM09VN) Diagram

#

Description
Price

-

ASM., UPPER REVERSE DRIVE MOTOR [INCL. ALL]

1203726

Unavailable

1

Screw

7517384

$8.79

2

SCREW

7518570

$3.99

3

ARM, RETURN SPRING IDLER

5252317

Unavailable

4

SPRING, IDLER RETURN

7043428

Unavailable

5

RISER, SHIFT FORK

5136506

Unavailable

6

SCREW

7517337

Unavailable

7

ASM., SWITCH, LOCKOUT

2411220

Unavailable

8

HOUSING, CASE, INNER [INCL. 9]

5136232

Unavailable

9

PIN, DOWEL 6 X 20

3234330

$7.19

9

PIN, DOWEL 6 X 20

3234330

$7.19

10

SHAFT, IDLER

5136235

Unavailable

11

SCREW

7517276

$7.19

12

RING, RETAINING

7710616

Unavailable

13

WASHER, FLAT

7556467

Unavailable

14

BEARING, SEALED

3514628

Unavailable

14

BEARING, SEALED

3514628

Unavailable

15

KEY

7710623

Unavailable

16

GEAR, PINION, 26T

3234833

Unavailable

17

FORK, SHIFT

1016511

Unavailable

18

BUSHING

-------

Unavailable

19

GEAR, IDLER, 30T [INCL. 18]

3234582

Unavailable

20

HOUSING, COVER, OUTER

5136231

Unavailable
