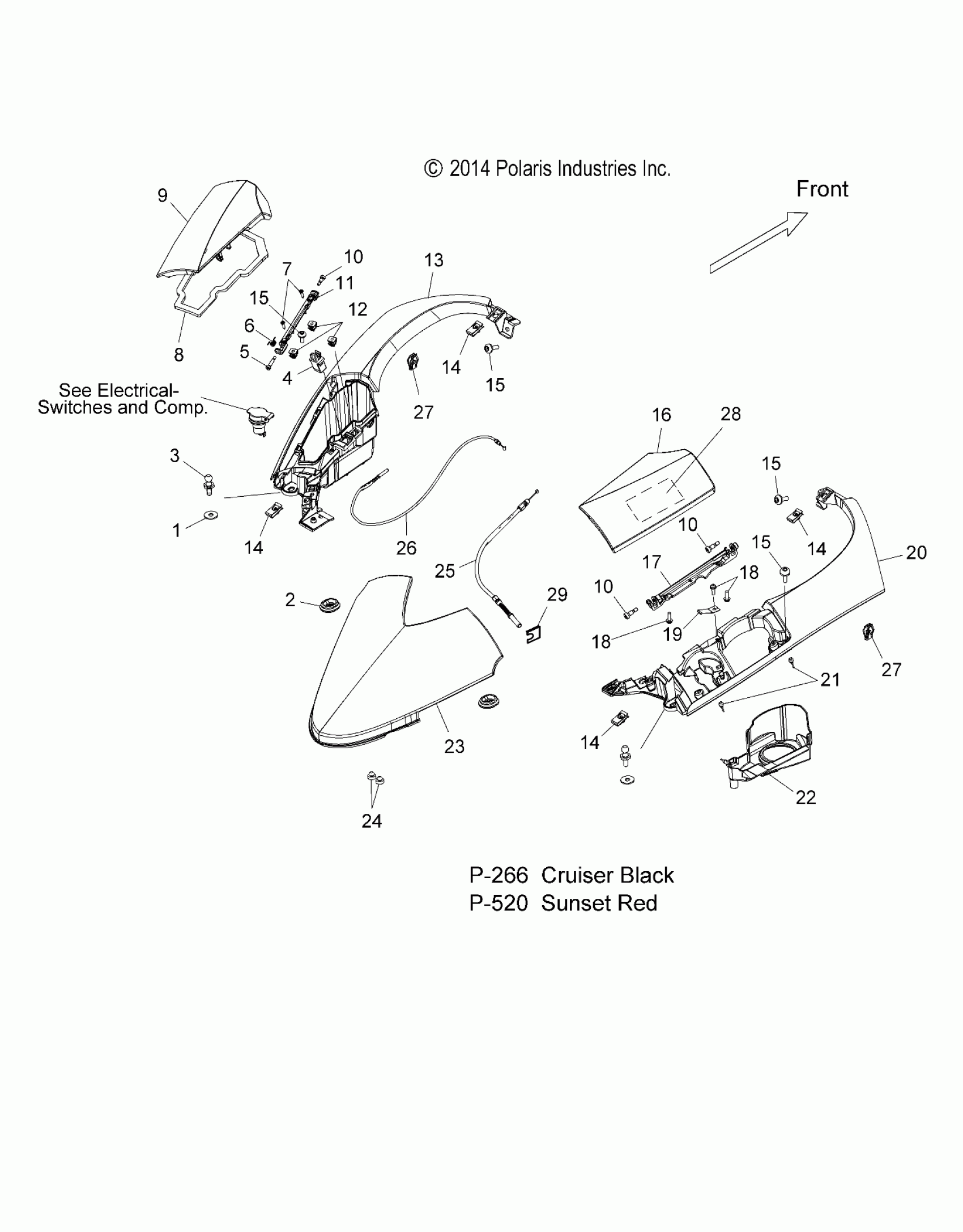

Polaris VISION ALL OPTIONS - V15SW36 BODY, TANK COVER - V15SW36 ALL OPTIONS (49VICTANKCVR15VN) Diagram

#

Description
Price

1

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

2

GROMMET-SIDE COVER

5433833

$4.23

3

STUD-BALL,DAMPER

5135170

Unavailable

4

LATCH-STORAGE,PUSH

2633518

Unavailable

5

SCREW

7518777

Unavailable

6

SPRING, STORAGE, TORSION

7043317

Unavailable

7

Screw

7518590

$3.19

8

SEAL, LID, STORAGE

5521726

Unavailable

9

PANEL, DOOR, STORAGE, LH

5437268-266

Unavailable

9

PANEL, DOOR, STORAGE, LH

5437268-520

Unavailable

10

SCREW

7518776

Unavailable

10

SCREW

7518776

Unavailable

10

SCREW

7518776

Unavailable

11

BRACKET, PIVOT, LH

5632191

Unavailable

12

NUT, PAL

7547324

$3.99

13

MAT, STORAGE

5813181

Unavailable

13

PANEL, TANK COVER, LH [INCL. 27]

5438102-266

Unavailable

13

PANEL, TANK COVER, LH [INCL. 27]

5438102-520

Unavailable

14

CLIP-U SPEED NUT

7081305

$1.99

14

CLIP-U SPEED NUT

7081305

$1.99

14

CLIP-U SPEED NUT

7081305

$1.99

14

CLIP-U SPEED NUT

7081305

$1.99

15

SCREW

7518484

$4.79

15

SCREW

7518484

$4.79

15

SCREW

7518484

$4.79

15

SCREW

7518484

$4.79

16

PANEL, DOOR, FUEL, RH

5436417-266

Unavailable

16

PANEL, DOOR, FUEL, RH

5436417-520

Unavailable

17

BRACKET, PIVOT, RH

5632192

Unavailable

18

SCREW

7518641

$3.19

18

SCREW

7518641

$3.19

19

SPRING, STEEL

5249661

Unavailable

20

PANEL, TANK COVER, RH [INCL. 27]

5436416-266

Unavailable

20

PANEL, TANK COVER, RH [INCL. 27]

5436416-520

Unavailable

21

BUMPER, GROMMET

5413033

Unavailable

22

LINER, FUEL TRAY

5412946

Unavailable

23

PANEL, COVER, AIRBOX

5436418-266

Unavailable

23

PANEL, COVER, AIRBOX

5436418-520

Unavailable

24

BUMPER, GROMMET

5411323

Unavailable

25

CABLE, FUEL RELEASE

7081338

Unavailable

26

CABLE, STORAGE RELEASE

7081337

Unavailable

27

CLIP, TRIM

7081303

Unavailable

27

CLIP, TRIM

7081303

Unavailable

28

DECAL, NOZZLE, GAS

7176166

Unavailable

29

CLIP, CABLE TOWER

7710648

Unavailable
