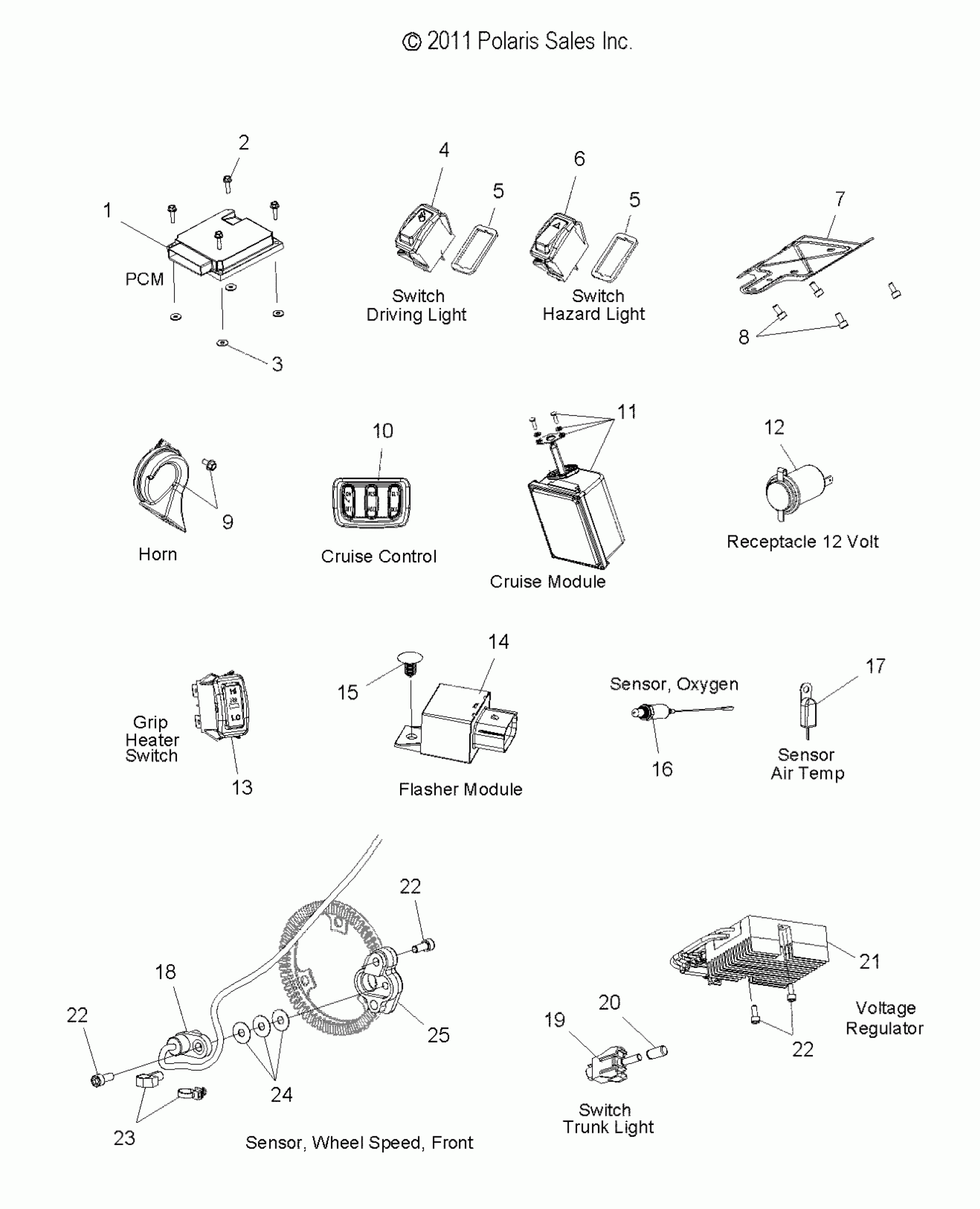

Polaris VISION ALL OPTIONS - V14SW36 ELECTRICAL, SWITCHES, SENSORS and COMPONENTS 2 - V14SW36 ALL OPTIONS (49VICSWITCHES12VN2) Diagram

#

Description
Price

1

PCM, SERVICE

4013160

$644.99

2

SCREW

7518329

$7.14

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

SWITCH, DRIVING LIGHT

4011317

$49.99

5

GASKET-SWITCH

5521757

$3.17

5

GASKET-SWITCH

5521757

$3.17

6

SWITCH, HAZARD LIGHT

4011318

$79.99

7

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

$67.46

8

Screw

7517739

$10.46

9

SCREW

7518043

$9.52

9

HORN

4011489

$64.75

10

SWITCH, CRUISE, BLACK

4013049

$234.99

11

WASHER

7555727

$0.40

11

MODULE, CRUISE

4012752

$454.99

11

SCREW

7518227

$3.97

11

GASKET, CABLE, MODULE, CRUISE

5813543

$10.32

12

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

13

SWITCH-HANDWARMER,SPDT

4011319

$54.99

14

MODULE, FLASHER, 27W

4012104

$125.46

15

CLIP-PLASTIC DART, NYLON

7670088

$1.59

16

SENSOR, OXYGEN

4010430

$141.65

17

SENSOR, GAUGE, AIR TEMP

2410443

$68.79

18

SENSOR, WHEEL SPEED, ABS [FRONT/REAR]

4013251

$242.05

19

SWITCH, DOOR LIGHT, TRUNK

4011390

$28.32

20

CAP, VINYL, BLACK

5413617

Unavailable

21

REGULATOR, VOLTAGE, BLACK

4012717

$344.99

22

SCREW

7517272

$7.84

22

SCREW

7517272

$7.84

22

SCREW

7517272

$7.84

23

Clip, Silencer

7670102

$2.38

23

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

24

SHIM, SENSOR, ABS

5255106

Unavailable

25

MOUNT, SPEED SENSOR, ABS

5632575

$36.41
