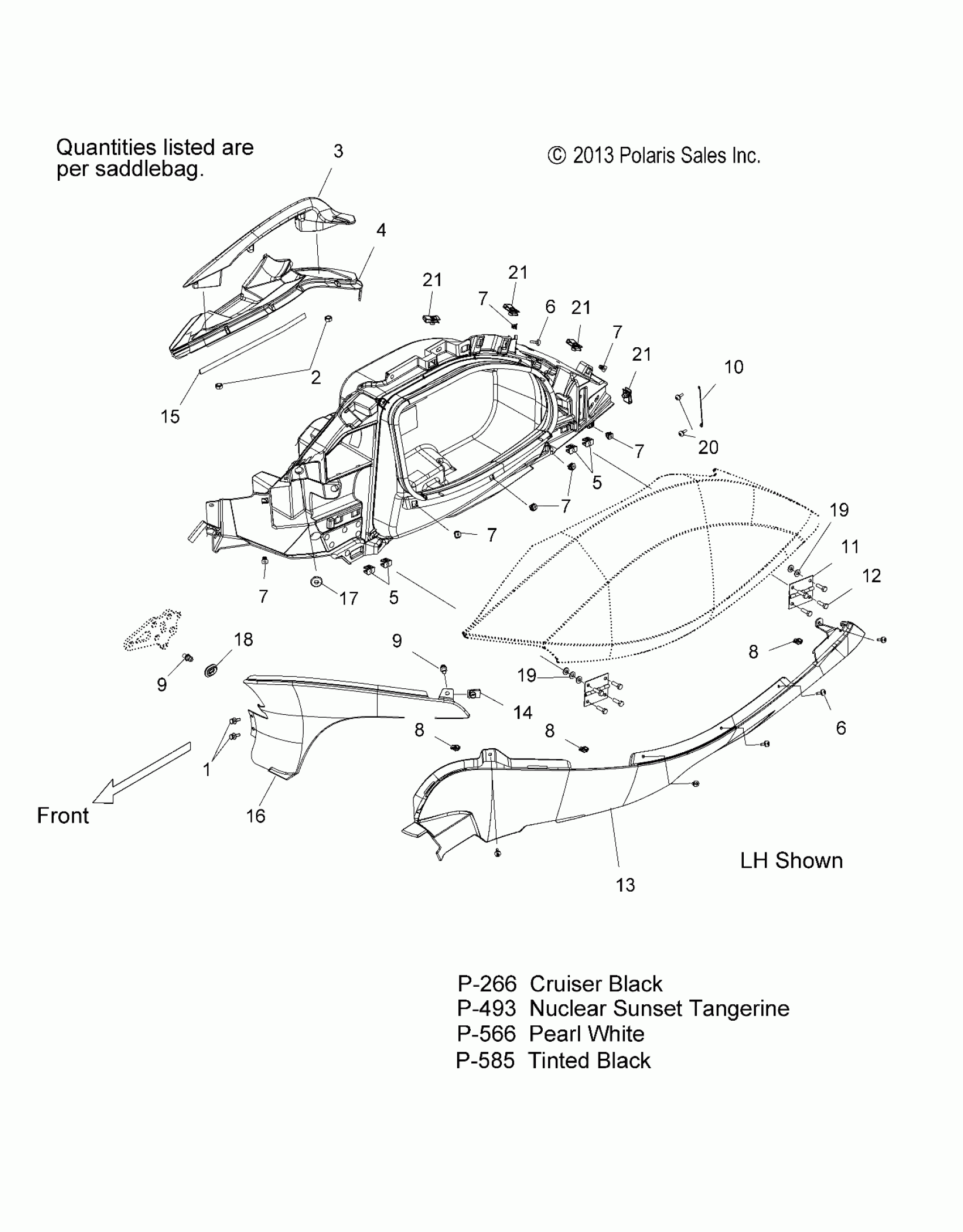

Polaris VISION ALL OPTIONS - V14SW36 BODY, SADDLEBAG ASM. - V14SW36 ALL OPTIONS (49VICSADDLEBAG14VN) Diagram

#

Description
Price

1

RIVET, PLASTIC

7661927

$1.49

2

NUT

7547076

$2.60

3

HANDLE, PASSENGER, LH

5438782

Unavailable

3

HANDLE, PASSENGER, RH

5438783

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, LH

5437847-266

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, RH

5437848-266

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, RH

5437848-566

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, LH

5437847-566

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, LH

5437847-493

Unavailable

4

PANEL, CLOSEOUT, HANDHOLD, RH

5437848-493

Unavailable

5

CLIP, EXPANSION

7081304

$7.19

5

CLIP, EXPANSION

7081304

$7.19

6

SCREW

7518518

$1.59

6

SCREW

7518518

$1.59

7

NUT, PAL

7547324

$3.99

7

NUT, PAL

7547324

$3.99

7

NUT, PAL

7547324

$3.99

7

NUT, PAL

7547324

$3.99

7

NUT, PAL

7547324

$3.99

7

NUT, PAL

7547324

$3.99

8

CLIP, TRIM

7081303

Unavailable

8

CLIP, TRIM

7081303

Unavailable

8

CLIP, TRIM

7081303

Unavailable

9

STUD

7519139

Unavailable

9

STUD

7519139

Unavailable

10

CABLE, SADDLEBAG, STOP

7081592

Unavailable

11

HINGE, SADDLEBAG

2633552

Unavailable

12

SCREW

7518591

$3.73

13

PANEL, SADDLEBAG, LOWER, LH

5436210-266

Unavailable

13

PANEL, SADDLEBAG, LOWER, RH

5436211-266

Unavailable

13

PANEL, SADDLEBAG, LOWER, LH

5436210-585

Unavailable

13

PANEL, SADDLEBAG, LOWER, RH

5436211-585

Unavailable

14

U-NUT

7547342

Unavailable

15

TRIM, EDGE, 22 MM

8360079

Unavailable

15

TRIM, EDGE, 580 MM

8360078

Unavailable

16

COVER, SIDE, LH [INTL]

5450230-266

Unavailable

16

COVER, SIDE, RH [INTL]

5450231-266

Unavailable

16

COVER, SIDE, LH [INTL]

5450230-566

Unavailable

16

COVER, SIDE, RH [INTL]

5450231-566

Unavailable

16

COVER, SIDE, LH

5450228-266

Unavailable

16

COVER, SIDE, RH

5450229-266

Unavailable

16

COVER, SIDE, RH

5450229-493

Unavailable

16

COVER, SIDE, LH

5450228-566

Unavailable

16

COVER, SIDE, RH

5450229-566

Unavailable

16

COVER, SIDE, LH

5450228-493

Unavailable

17

GROMMET-ROUND

5413055

$1.59

18

GROMMET, SIDE COVER

5413037

Unavailable

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

SCREW

7518484

$4.79

21

CLIP-U SPEED NUT

7081305

$1.99

21

CLIP-U SPEED NUT

7081305

$1.99

21

CLIP-U SPEED NUT

7081305

$1.99

21

CLIP-U SPEED NUT

7081305

$1.99
