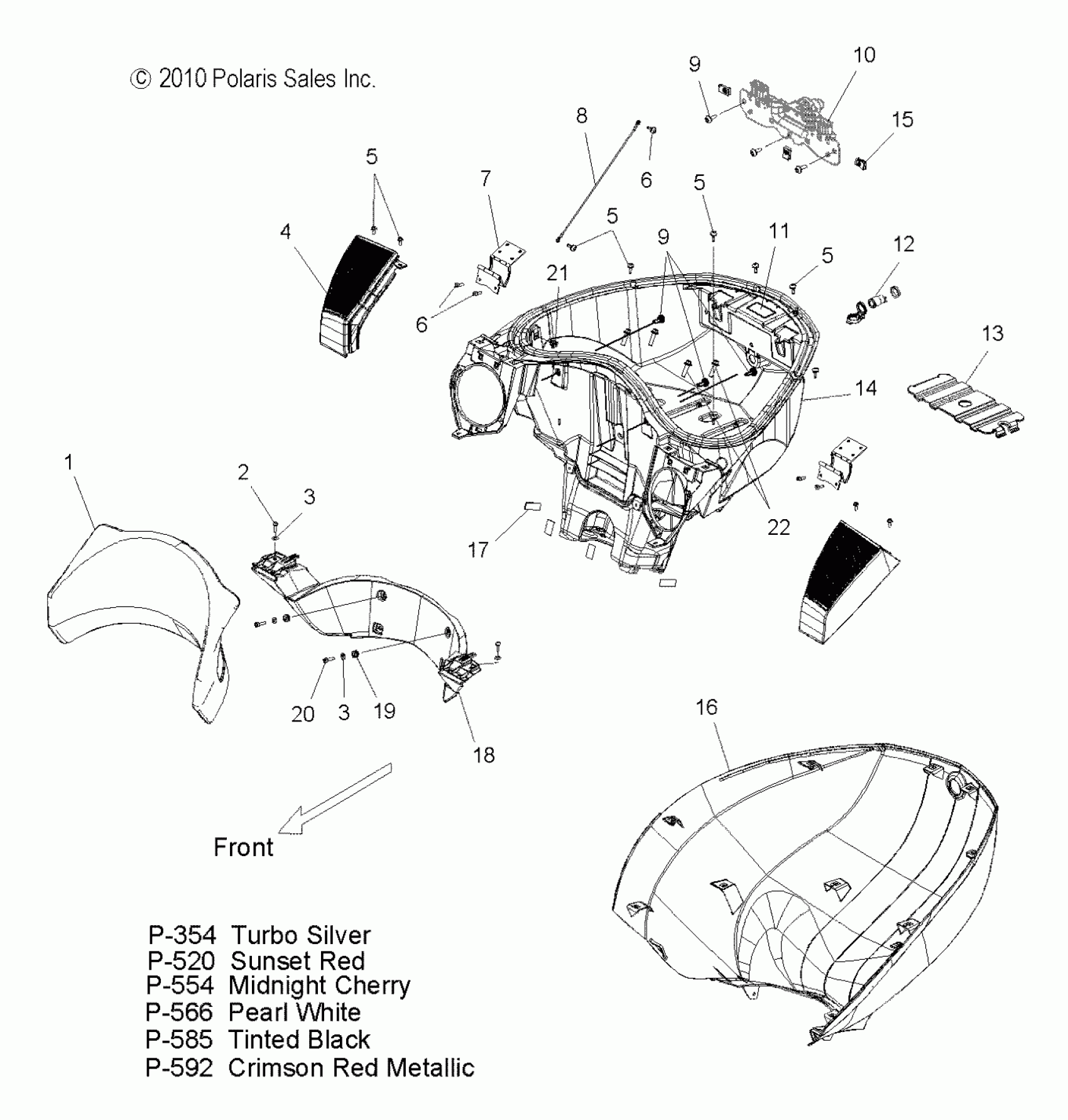

Polaris VISION ALL OPTIONS - V11SW36/SA36/AW36 BODY, TRUNK BASE - V11SW36/SA36/AW36 ALL OPTIONS (49VICTRUNKBASE11VN) Diagram

#

Description
Price

1

ASM., BACKREST, TRUNK

2684362

$289.99

2

Screw

7518590

$3.17

3

WASHER

7555727

$0.40

3

WASHER

7555727

$0.40

4

Grille, Speaker, RH, Trunk

5436382

Unavailable

4

Grille, Speaker, LH, Trunk

5436381

$36.41

5

SCREW

7518518

$1.59

5

SCREW

7518518

$1.59

5

SCREW

7518518

$1.59

5

SCREW

7518518

$1.59

6

SCREW

7518875

$4.84

6

SCREW

7518875

$4.84

7

ASM., HINGE, TRUNK

2633666

Unavailable

8

CABLE, TRUNK STOP

7081447

$40.46

9

SCREW

7518484

$4.76

9

SCREW

7518484

$4.76

10

ASM., IGNITION SWITCH LOCK W/TRUNK

----

Unavailable

11

DECAL, CARGO LIMIT, 20 LBS.

7175094

Unavailable

12

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

13

PANEL, FLOOR, TRUNK

5436377

Unavailable

14

ASM., CORE BASE, TRUNK

1016281

$434.99

15

CLIP-U SPEED NUT

7081305

$1.98

16

Panel, Base, Trunk [Int'l]

5437444-554

Unavailable

16

PANEL, BASE, TRUNK

5437444-520

Unavailable

16

PANEL, BASE, TRUNK

5437444-566

Unavailable

16

Panel, Base, Trunk

5437444-585

$619.03

16

Panel, Base, Trunk

5437444-354

Unavailable

16

Panel, Base, Trunk

5437444-592

Unavailable

17

PAD-FOAM SHIM,TRUNK

5413465

$6.46

18

PANEL, SEAT FILLER, TRUNK

5436375

Unavailable

19

GROMMET, SEAT FILLER, TRUNK

5413464

$3.97

20

SCREW

7518900

$3.17

21

NUT, PAL NUT

7547324

$3.97

22

SCREW

7518884

$1.98
