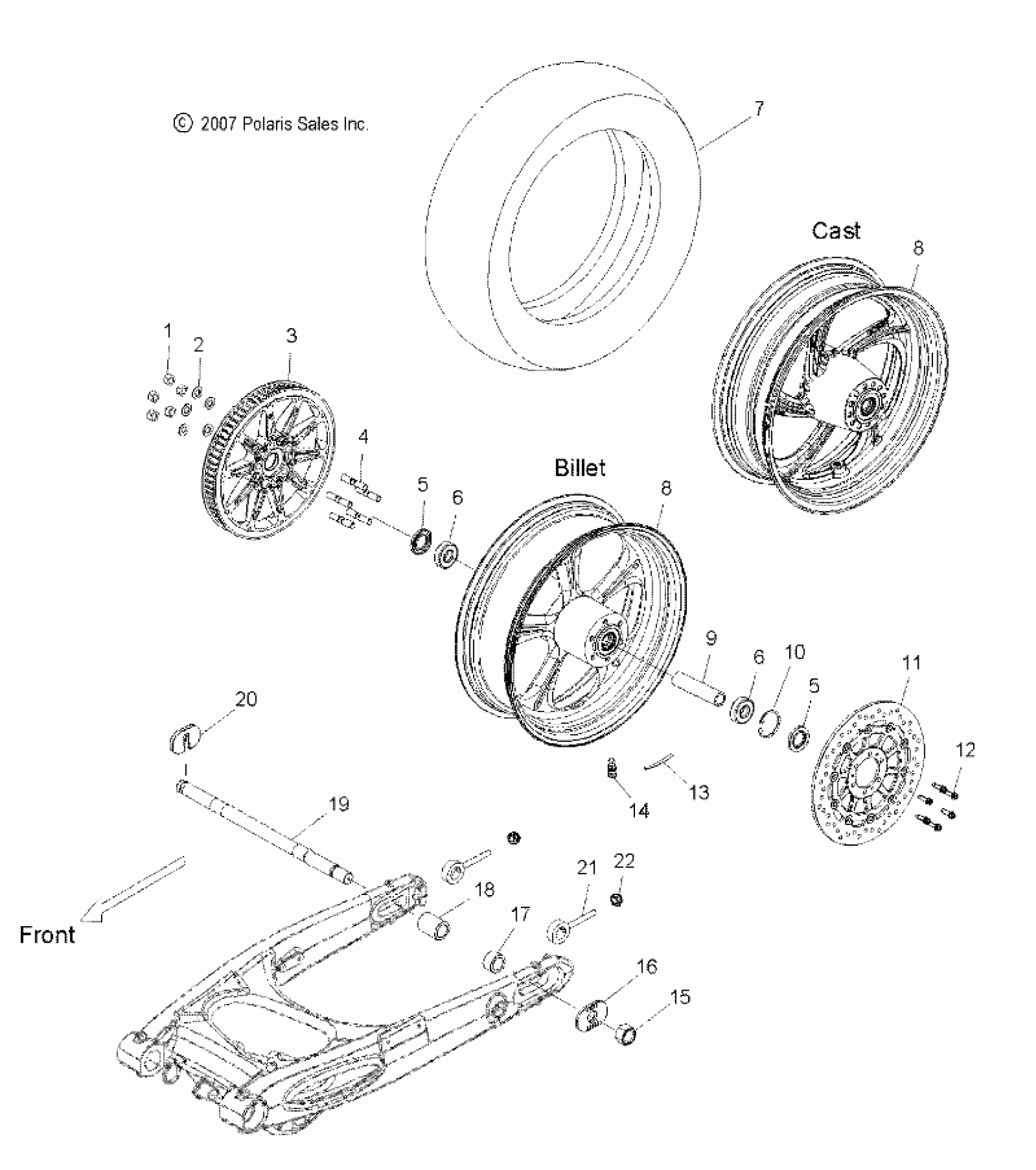

Polaris VISION ALL OPTIONS - V08SB36/SD36 WHEELS, REAR - V08SB36/SD36 ALL OPTIONS (49VICWHEELRR08VN) Diagram

#

Description
Price

1

NUT

7547232

$23.81

2

WASHER, FLAT

7556287

$7.14

3

Asm., Sprocket, Driven, 70T

1332399-553

Unavailable

4

Stud

7518311

Unavailable

5

SEAL

3610094

$31.75

5

SEAL

3610094

$31.75

6

BEARING, BALL

3514405

$19.84

6

BEARING, BALL

3514405

$19.84

7

TIRE, 180/60R16

5413397

Unavailable

8

Asm., Wheel, Cast, Rear

1520900-385

$824.99

8

Asm., Wheel, Billet, Rear

1520947

$1,699.99

8

Asm., Wheel, Cast, Rear

1520900-385

$824.99

8

Asm., Wheel, Billet, Rear

1520947

$1,699.99

9

Spacer, Bearing

5334863

$48.41

10

Ring, Retaining

7710526

$10.32

11

Rotor, Brake, Rear, 7mm

1910940-385

$324.99

12

SCREW

7518661

$1.59

13

Weight, Balance

1520618

Unavailable

14

Valve, Rim [Use w/Cast Wheel Only]

1520232

$3.17

14

Valve, Rim, Chrome [Use w/Billet Wheel Only]

1520995

Unavailable

15

NUT

7547226

$23.81

16

WASHER, INDICATOR, AXLE

5248452-236

$27.78

17

SPACER, BEARING, LH

5631479

$3.97

18

SPACER, WHEEL, REAR, RH

5631581

$11.99

19

Axle, Rear

5136053

$63.49

20

RETAINER, AXLE, REAR

5248599

$27.78

21

ADJUSTER, AXLE

1014895

$36.41

22

NUT-NYLOCK M8X1.25-Y

7547144

$3.17
