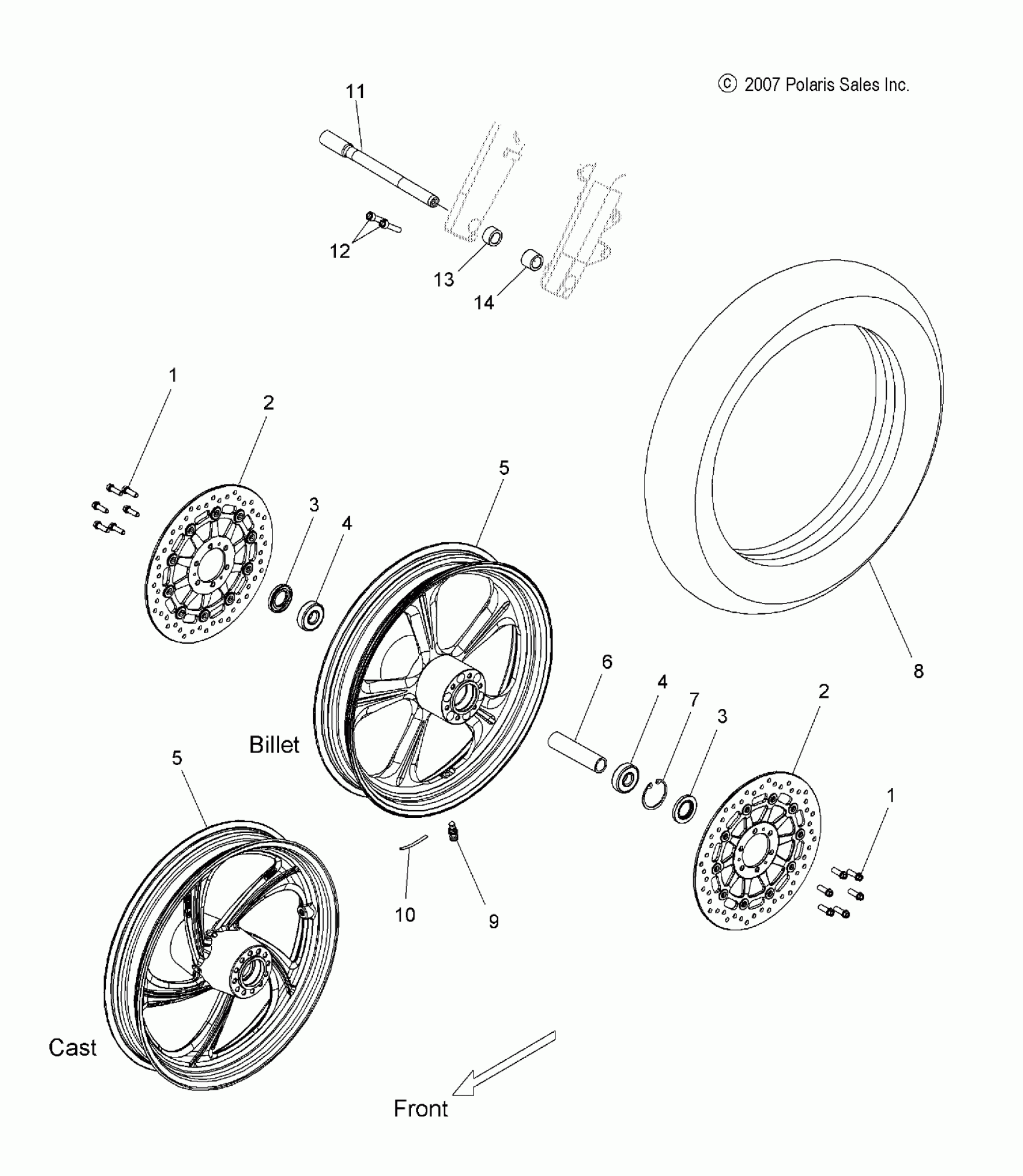

Polaris VISION ALL OPTIONS - V08SB36/SD36 WHEELS, FRONT - V08SB36/SD36 ALL OPTIONS (49VICWHEELFRT08VN) Diagram

#

Description
Price

1

SCREW, ROTOR BOLT

7518661

$1.59

1

SCREW, ROTOR BOLT

7518661

$1.59

2

Rotor, Brake

1910959-385

$264.99

2

Rotor, Brake

1910959-385

$264.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

Asm., Wheel, Cast, Front [Incl. 3-7,9]

1520901-385

Unavailable

5

Asm., Wheel, Billet, Front [Incl. 3-7,9]

1520945

$1,639.99

5

Asm., Wheel, Cast, Front [Incl. 3-7,9]

1520901-385

Unavailable

5

Asm., Wheel, Billet, Front [Incl. 3-7,9]

1520945

$1,639.99

6

Spacer

5334135

$29.99

7

Ring, Retaining

7710526

$10.32

8

TIRE, FRONT, RADIAL

5412521

$275.22

9

Valve, Rim [Use w/Cast Wheel Only]

1520232

$3.17

9

Valve, Rim, Chrome [Use w/Billet Wheel Only]

1520995

Unavailable

10

Weight, Balance

1520618

Unavailable

11

Axle, Front

5135008

$85.70

12

SCREW

7517361

$23.81

13

SPACER, BEARING

5631479

$3.97

14

SPACER, BEARING

5631481

$4.76
