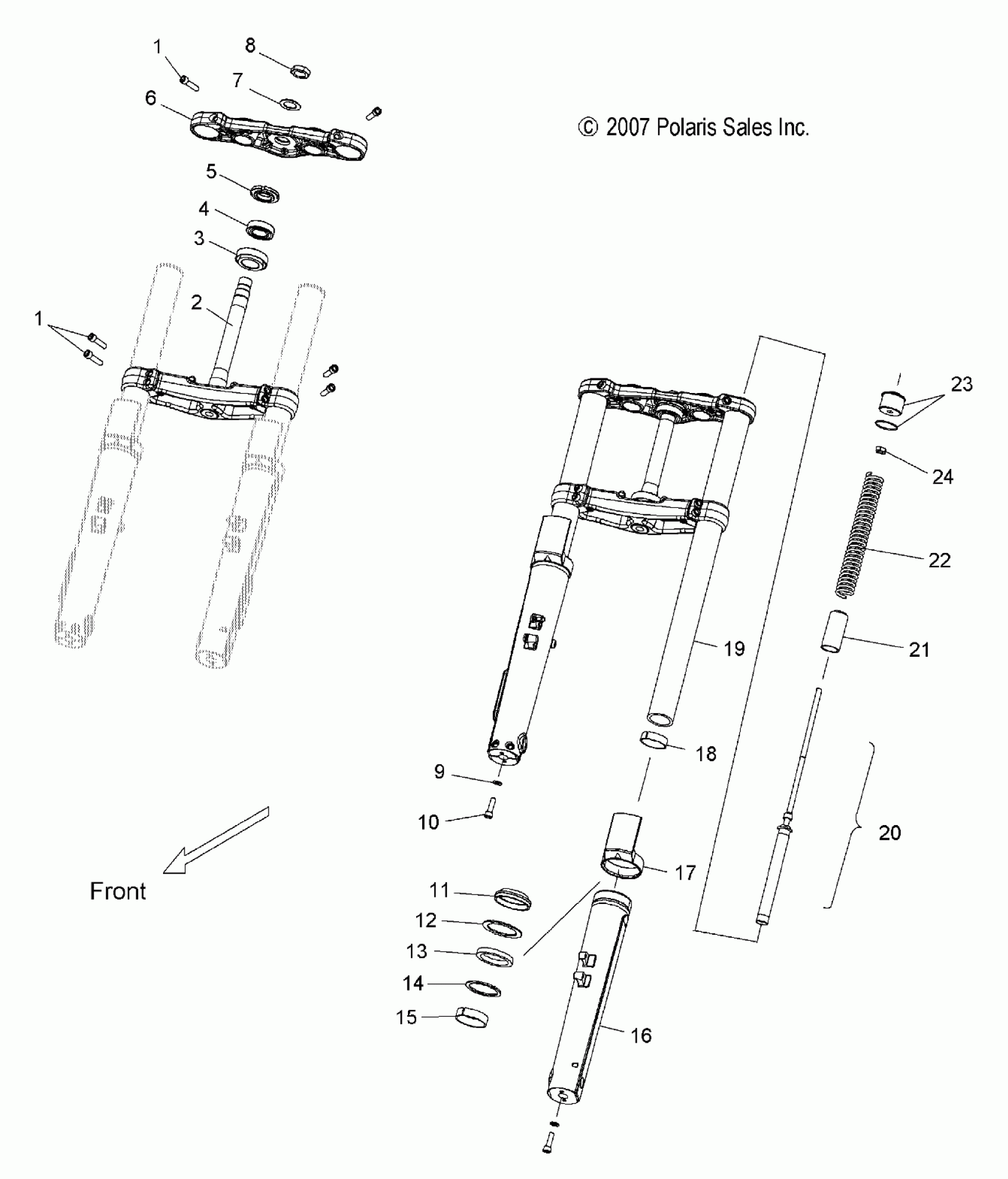

Polaris VISION ALL OPTIONS - V08SB36/SD36 SUSPENSION, FRONT FORKS and CLAMPS - V08SB36/SD36 ALL OPTIONS (49VICFORKS08VN) Diagram

#

Description
Price

-

Asm., Fork Leg, RH, Silver [Incl. 9-24]

1822789-385

$1,174.99

-

Asm., Fork Leg, LH, Silver [Incl. 9-24]

1822788-385

$1,029.99

1

SCREW

7517361

$23.81

1

SCREW

7517361

$23.81

2

Asm., Bracket. Lower, Black

1822786-067

$489.99

3

BEARING, NDL

3514416

$35.71

4

BEARING, BALL

3514549

$23.81

5

NUT, STEERING HEAD

5134094

$31.75

6

Asm., Bracket. Upper, Black

1823290-067

$226.99

7

WASHER

7556246

$4.76

8

Nut, Top, Triple Clamp

5134148

$31.75

9

Washer, Oil Seal

3610069

$23.81

10

Screw

7518857

$3.17

11

Seal, Dust Cap

3610086

$31.75

12

Ring, Stop

5211827

$15.37

13

Seal, Oil

3610068

Unavailable

14

Cap, Oil Seal

5131504

$20.22

15

Bushing, Upper

3585715

$43.65

16

Kit, Slider, Fork, LH, Silver

2203624-385

Unavailable

16

Kit, Slider, Fork, RH, Silver

2203625-385

$559.99

17

Guard, Fork

5437382

$15.87

18

Bushing, Lower

3585714

$27.78

19

Tube, Fork

5335434

$504.99

20

Kit, Cartridge

2203623

$215.29

21

Spacer, Preload

5136248

$8.73

22

Spring

7043367

$36.90

23

Kit, Cap [Incl. O-Ring]

2203622

Unavailable

24

Nut

----

Unavailable
