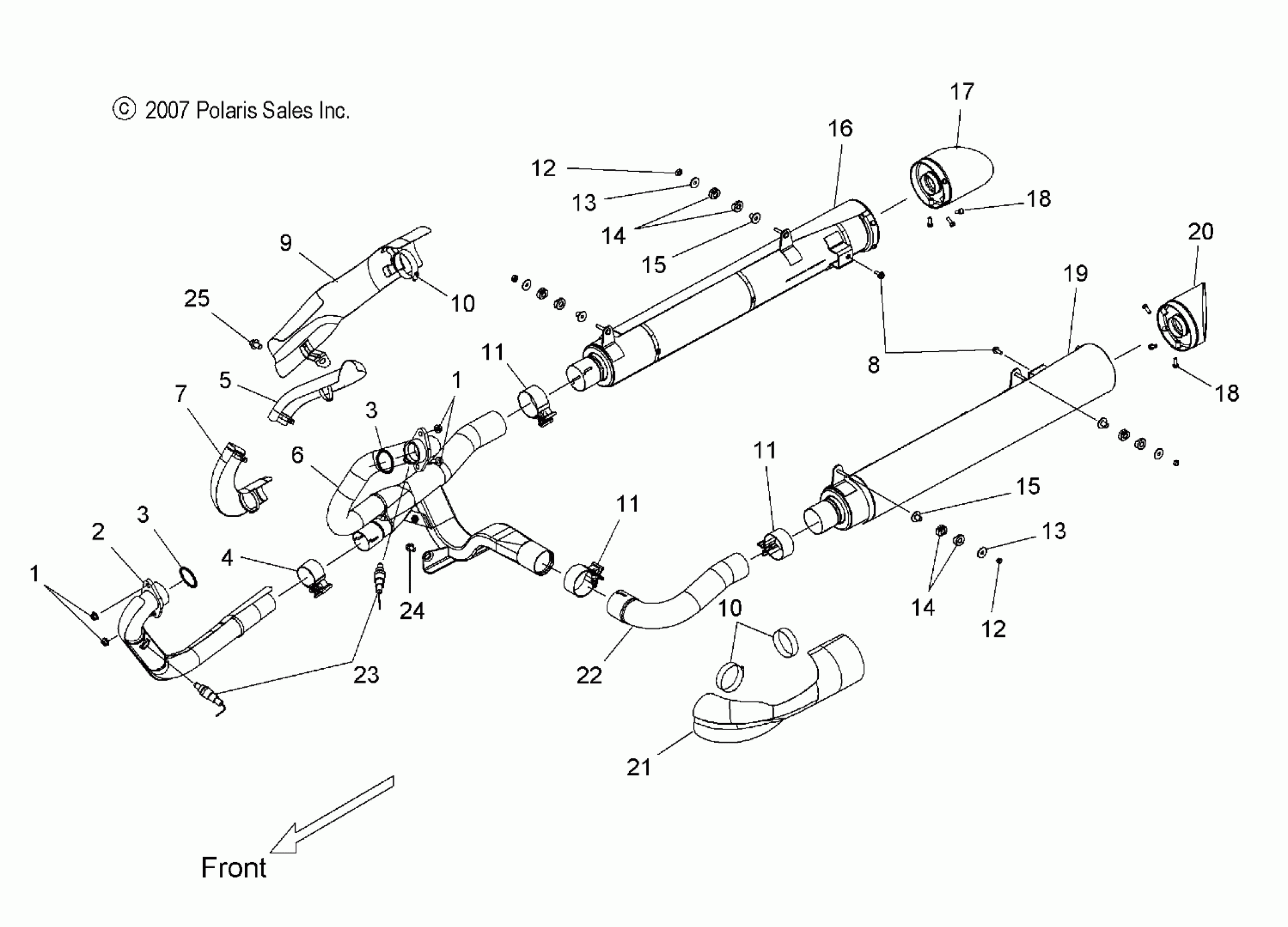

Polaris VISION ALL OPTIONS - V08SB36/SD36 ENGINE, EXHAUST - V08SB36/SD36 ALL OPTIONS (49VICEXHAUST08VN) Diagram

#

Description
Price

1

NUT

7547403

$7.84

1

NUT

7547403

$7.84

2

CLAMP, HEAT SHIELD

7080774

$10.32

2

SHIELD, EXHAUST, HEADPIPE, FRONT

1261541

$261.02

2

Asm., Exhaust, Headpipe, Front

1261801

$147.79

2

Headpipe, Front

1261802

$162.37

3

GASKET, EXHAUST, SEALING

5246008

$19.84

3

GASKET, EXHAUST, SEALING

5246008

$19.84

4

CLAMP, EXHAUST, SS

7081179

$43.65

5

CLAMP, HEAT SHIELD

7080774

$10.32

5

SHIELD, REAR CYLINDER, UPPER

1261543

$204.43

6

Asm., Exhaust, Headpipe, Rear, 49 States [Incl. 5,7]

1261850

$903.79

6

Asm., Exhaust, Headpipe, Rear, California [Incl. 5,7]

1261803

Unavailable

7

CLAMP, HEAT SHIELD

7080774

$10.32

7

SHIELD, REAR CYLINDER, MID

1261544

Unavailable

8

SCREW

7518591

$3.79

9

SHIELD, TRANSITION, RH

1261795

$227.41

10

CLAMP, WORM DRIVE

7081438

$9.52

10

CLAMP, WORM DRIVE

7081438

$9.52

11

CLAMP, EXHAUST

7081340

$31.75

11

CLAMP, EXHAUST

7081340

$31.75

11

CLAMP, EXHAUST

7081340

$31.75

12

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

12

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

13

WASHER, FLAT

7556452

Unavailable

13

WASHER, FLAT

7556452

Unavailable

14

BUSHING, RUBBER

5413331

$3.17

14

BUSHING, RUBBER

5413331

$3.17

15

BUSHING, FLANGE

5136091

Unavailable

15

BUSHING, FLANGE

5136091

Unavailable

16

CLAMP

7080813

$3.97

16

Asm., Muffler, RH [Incl. 17,18]

1261792

$589.99

16

Muffler, RH, Black

1261790-029

$94.05

16

SHIELD, MUFFLER, RH

1261749

$333.32

17

Tip, Exhaust, RH

1261759

Unavailable

18

SCREW

7518767

$3.97

18

SCREW

7518767

$3.97

19

CLAMP

7081813

$106.49

19

Asm., Muffler, LH [Incl. 18,20]

1261791

$694.99

19

Muffler, LH, Black

1264789-029

Unavailable

19

SHIELD, MUFFLER, LH

1261800

$351.10

20

Tip, Exhaust, LH

1261805

Unavailable

21

SHIELD, TRANSITION, LH

1261794

$288.87

22

Tube, Exhaust, Crossover, LH

5135421

$74.19

23

SENSOR, OXYGEN

4010430

$141.65

24

SCREW

7517951

$5.56

25

SCREW

7518140

$3.17
