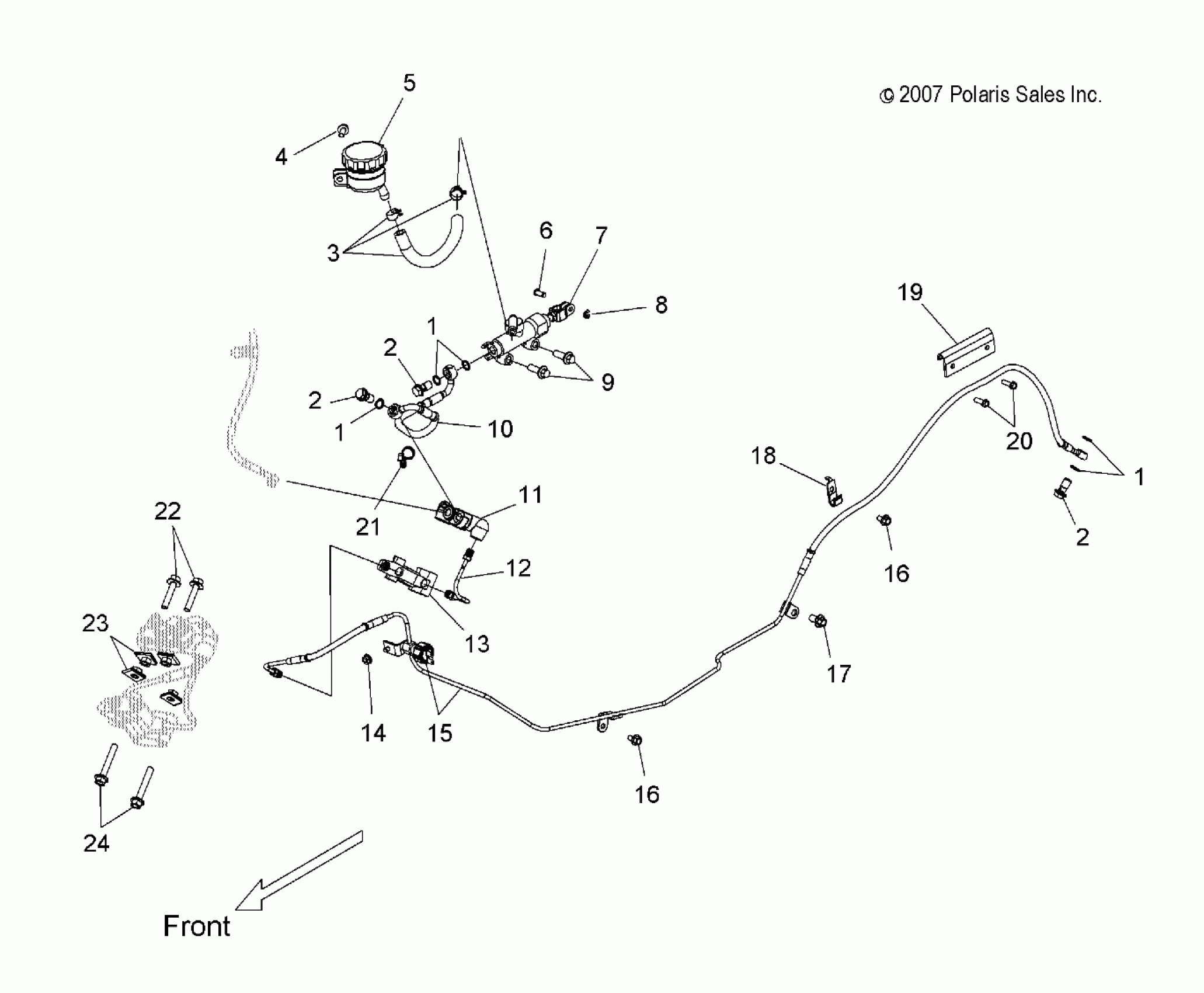

Polaris VISION ALL OPTIONS - V08SB36/SD36 BRAKES, BRAKE LINES, REAR - V08SB36/SD36 ALL OPTIONS (49VICBRAKELINERR08VN) Diagram

#

Description
Price

1

WASHER, COPPER SEALING

7556372

$1.59

1

WASHER, COPPER SEALING

7556372

$1.59

1

WASHER, COPPER SEALING

7556372

$1.59

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

3

KIT, HOSE SET

2203669

$40.46

4

Screw

7517770

$2.38

5

Kit, Tank Asm. Set

2203668

Unavailable

6

PIN, CLEVIS

7661873

$23.81

7

M/C Pedal

1911294

$149.75

8

E-CLIP

7710568

$3.17

9

SCREW

7516734

$3.17

10

Hose, Valve, Brake Pedal

1910933

Unavailable

11

VALVE, BRAKE, DELAY

1910930

$194.99

12

Pipe, Brake Prop, Delay

1910985

Unavailable

13

VALVE, BRAKE, PROPORTIONING

1911280

$84.99

14

Nut

7710495

$5.22

15

Switch, Pressure, Brake, Rear

4010372

$35.71

15

Hose, Brake, Rear

1910987

$206.17

16

SCREW

7517704

$7.84

16

SCREW

7517704

$7.84

17

SCREW

7518043

$9.52

18

CLIP, BRAKE HOSE

7081239

$6.65

19

Retainer, Brake Line, Rear

5435451

$16.99

20

SCREW

7518773

$4.76

21

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

22

SCREW

7518003

$4.76

23

U-NUT

7547370

Unavailable

24

SCREW

7518579

$3.97
