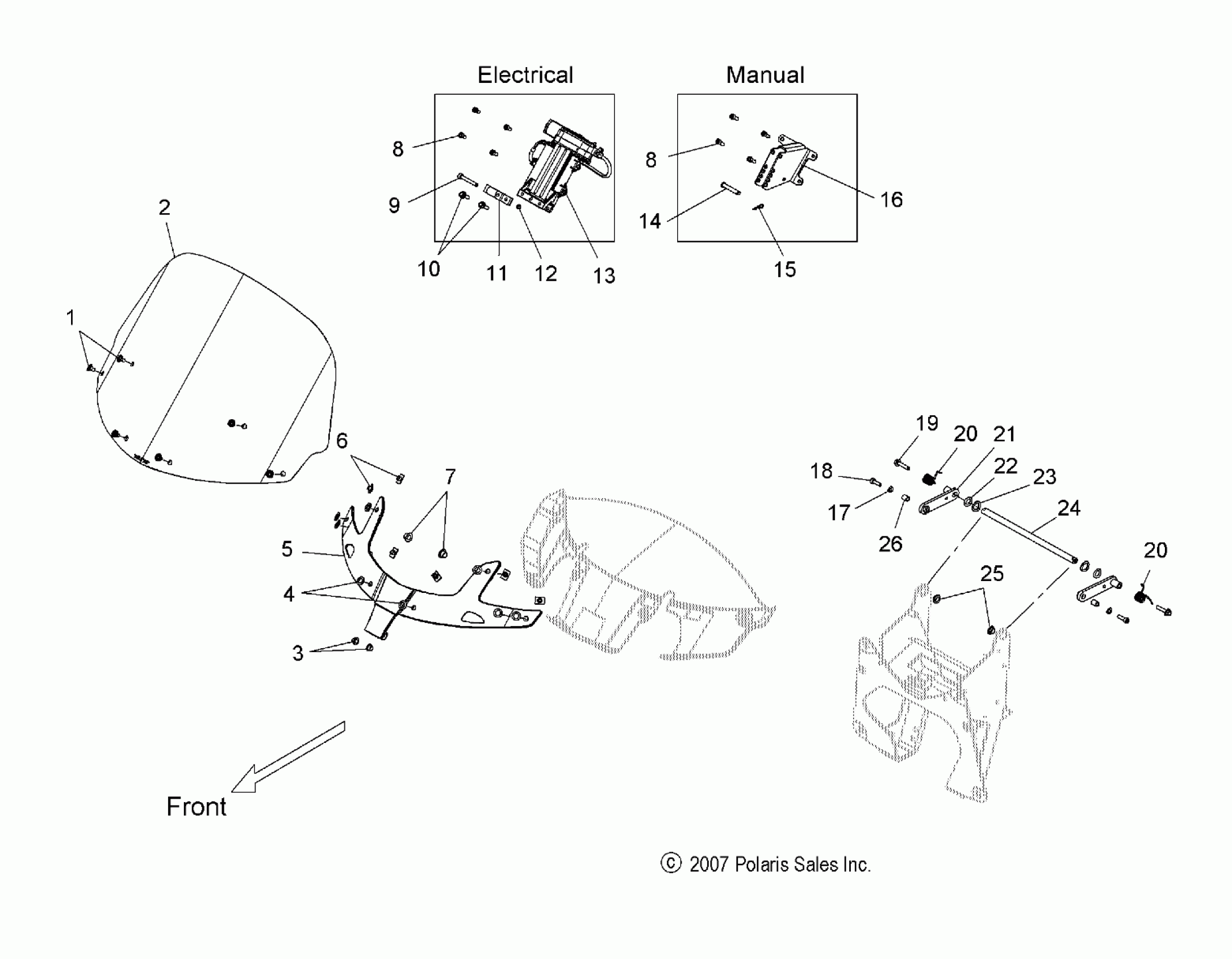

Polaris VISION ALL OPTIONS - V08SB36/SD36 BODY, WINDSHIELD - V08SB36/SD36 ALL OPTIONS (49VICWINDSHIELD08VN) Diagram

#

Description
Price

1

BOLT

7518788

Unavailable

2

Kit, Windshield, Short [Incl. 1,4,6, Warn. Decal]

2875763

Unavailable

2

Kit, Windshield [Std] [Incl. 1,4,6, Warn. Decal]

2203427

Unavailable

2

Kit, Windshield, Tall [Incl. 1,4,6, Warn. Decal]

2875762

Unavailable

3

BRG-FLANGE,8X10X7MM

3514565

Unavailable

4

WSHR-FL,11X18X1.59MM

5813188

$1.19

5

Bracket, Windshield

5135781

Unavailable

6

T-NUT

7547300

$1.59

7

BEARING, FLANGE

3514567

Unavailable

8

SCREW

7517272

$7.19

8

SCREW

7517272

$7.19

9

SCREW

7518013

Unavailable

10

SCREW

7517704

$7.19

11

MOUNT, MOTOR

5135974

Unavailable

12

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

13

MOTOR, WINDSHIELD DRIVE

4011815

Unavailable

14

PIN, CLEVIS

7661928

Unavailable

15

HAIRPIN, COTTER

7661898

Unavailable

16

BRACKET, WINDSHIELD, MANUAL, BLACK

5251066-067

Unavailable

17

WASHER, FLAT

7556121

$1.49

18

SCREW

7517305

$4.79

19

SCREW

7518003

$4.79

20

Spring, Windshield, RH

7043356

Unavailable

20

Spring, Windshield, LH

7043355

Unavailable

20

Spring, Windshield, RH

7043356

Unavailable

20

Spring, Windshield, LH

7043355

Unavailable

21

PLT, LINK

1016019

Unavailable

22

O-Ring

5411356

$2.39

23

Washer, Flat

7556113

$4.79

24

ROD, WINDSHIELD

5335225

Unavailable

25

Bearing, Spherical

3514566

Unavailable

26

SPACER

7556388

Unavailable
