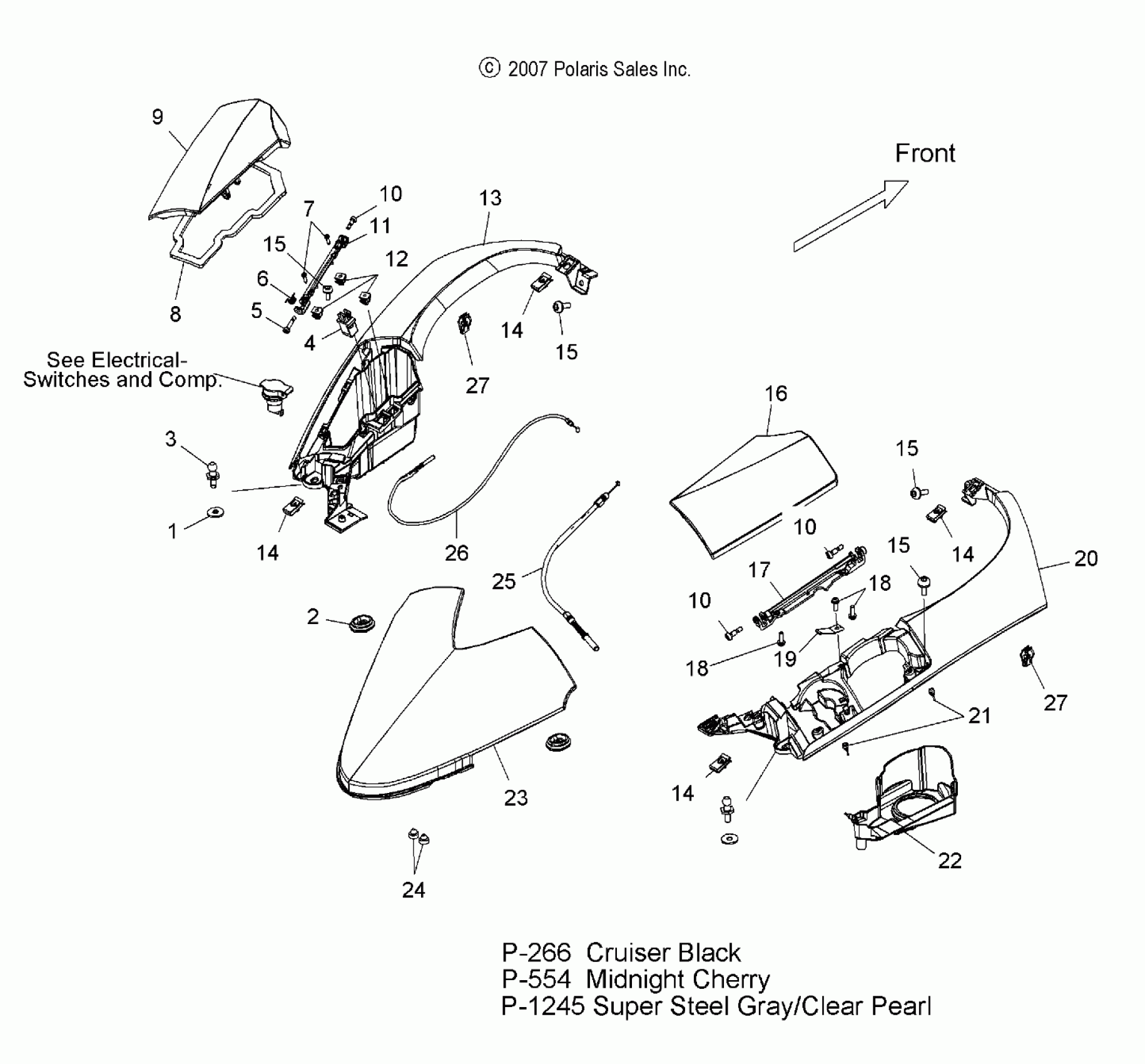

Polaris VISION ALL OPTIONS - V08SB36/SD36 BODY, TANK COVER - V08SB36/SD36 ALL OPTIONS (49VICTANKCVR08VN) Diagram

#

Description
Price

1

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

2

GROMMET-SIDE COVER

5433833

$4.21

3

STUD-BALL,DAMPER

5135170

$7.14

4

LATCH-STORAGE,PUSH

2633518

$49.99

5

SCREW

7518777

Unavailable

6

SPRING, STORAGE, TORSION

7043317

$5.65

7

Screw

7518590

$3.17

8

SEAL, LID, STORAGE

5521726

Unavailable

9

Panel, Door, Storage, LH, Cherry

5437268-554

Unavailable

9

Panel, Door, Storage, LH, SS Gray

5437268-1245

Unavailable

9

Panel, Door, Storage, LH, Black

5437268-266

Unavailable

10

SCREW

7518776

Unavailable

10

SCREW

7518776

Unavailable

10

SCREW

7518776

Unavailable

11

Bracket, Pivot, LH

5631981

$66.99

12

NUT, PAL

7547324

$3.97

13

Panel, Tank Cover, LH, Cherry [Incl. 27]

5437269-554

Unavailable

13

Panel, Tank Cover, LH, Black [Incl. 27]

5437269-266

Unavailable

13

Panel, Tank Cover, LH, SS Gray [Incl. 27]

5437269-1245

$151.99

14

CLIP-U SPEED NUT

7081305

$1.98

14

CLIP-U SPEED NUT

7081305

$1.98

14

CLIP-U SPEED NUT

7081305

$1.98

14

CLIP-U SPEED NUT

7081305

$1.98

15

SCREW

7518484

$4.76

15

SCREW

7518484

$4.76

15

SCREW

7518484

$4.76

15

SCREW

7518484

$4.76

16

Panel, Door, Fuel, RH, Black

5436417-266

$209.99

16

Panel, Door, Fuel, RH, SS Gray

5436417-1245

$133.99

16

Panel, Door, Fuel, RH, Cherry

5436417-554

$209.99

17

Bracket, Pivot, RH

5631982

$87.99

18

SCREW

7518641

$3.17

18

SCREW

7518641

$3.17

19

SPRING, STEEL

5249661

Unavailable

20

Panel, Tank Cover, RH, SS Gray [Incl. 27]

5436416-1245

$139.99

20

Panel, Tank Cover, RH, Black [Incl. 27]

5436416-266

$209.99

20

Panel, Tank Cover, RH, Cherry [Incl. 27]

5436416-554

$174.99

21

BUMPER, GROMMET

5413033

$4.03

22

LINER, FUEL TRAY

5412946

$32.37

23

Panel, Cover, Airbox, Black

5436418-266

Unavailable

23

Panel, Cover, Airbox, Cherry

5436418-554

$234.99

23

Panel, Cover, Airbox, SS Gray

5436418-1245

Unavailable

24

BUMPER, GROMMET

5411323

$3.17

25

CABLE, FUEL RELEASE

7081338

$28.32

26

CABLE, STORAGE RELEASE

7081337

$28.32

27

CLIP, TRIM

7081303

$1.19

27

CLIP, TRIM

7081303

$1.19
