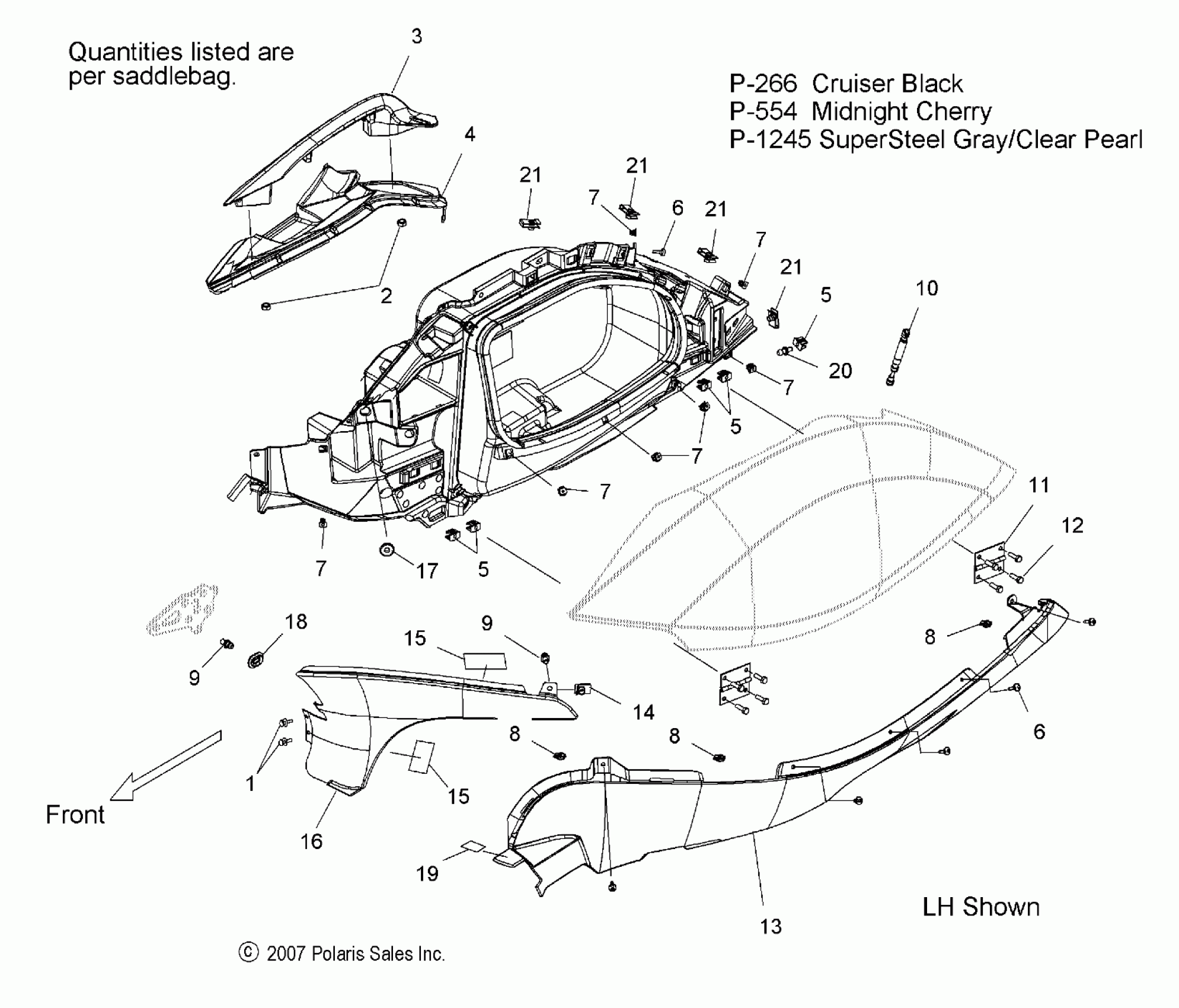

Polaris VISION ALL OPTIONS - V08SB36/SD36 BODY, SADDLEBAG ASM. - V08SB36/SD36 ALL OPTIONS (49VICSADDLEBAG08VN) Diagram

#

Description
Price

1

RIVET, PLASTIC

7661927

$1.19

2

NUT

7547076

$2.60

3

Handle, Passenger, RH, ANDZ AL

5436169-565

$71.41

3

Handle, Passenger, LH, ANDZ AL

5436168-565

$71.41

4

Panel, Closeout, Handhold, LH

5436206-554

$108.99

4

Panel, Closeout, Handhold, RH

5436207-1245

$123.99

4

Panel, Closeout, Handhold, LH

5436206-266

$123.99

4

Panel, Closeout, Handhold, LH

5436206-1245

$40.87

4

Panel, Closeout, Handhold, RH

5436207-266

$123.99

4

Panel, Closeout, Handhold, RH

5436207-554

$123.99

5

CLIP, EXPANSION

7081304

$7.14

5

CLIP, EXPANSION

7081304

$7.14

5

CLIP, EXPANSION

7081304

$7.14

6

SCREW

7518518

$1.59

6

SCREW

7518518

$1.59

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

7

NUT, PAL

7547324

$3.97

8

CLIP, TRIM

7081303

$1.19

8

CLIP, TRIM

7081303

$1.19

8

CLIP, TRIM

7081303

$1.19

9

Stud

7518602

$24.99

9

Stud

7518602

$24.99

10

Damper, Saddlebag, Lid

7043173

$48.56

11

HINGE, SADDLEBAG

2633552

Unavailable

12

SCREW

7518591

$3.79

13

Panel, Saddlebag, Lower, RH

5436211-554

$247.99

13

Panel, Saddlebag, Lower, RH

5436211-1245

$639.99

13

PANEL, SADDLEBAG, LOWER, LH

5436210-266

Unavailable

13

PANEL, SADDLEBAG, LOWER, RH

5436211-266

$639.99

13

Panel, Saddlebag, Lower, LH

5436210-1245

$216.99

13

Panel, Saddlebag, Lower, LH

5436210-554

$247.99

14

U-NUT

7547342

$10.32

15

Strip, Rubber, Side Cover

5413059

$1.35

15

Strip, Rubber, Side Cover

5413059

$1.35

16

Cover, Side, Trim, LH, BRU

5436212-411

Unavailable

16

Cover, Side, Trim, RH, BRU

5436213-411

Unavailable

17

GROMMET-ROUND

5413055

$1.59

18

GROMMET, SIDE COVER

5413037

$9.99

19

Rhino Hide, Saddlebag, Lower

5813272

$11.51

20

STUD-BALL,DAMPER

5135170

$7.14

21

CLIP-U SPEED NUT

7081305

$1.98

21

CLIP-U SPEED NUT

7081305

$1.98

21

CLIP-U SPEED NUT

7081305

$1.98

21

CLIP-U SPEED NUT

7081305

$1.98
