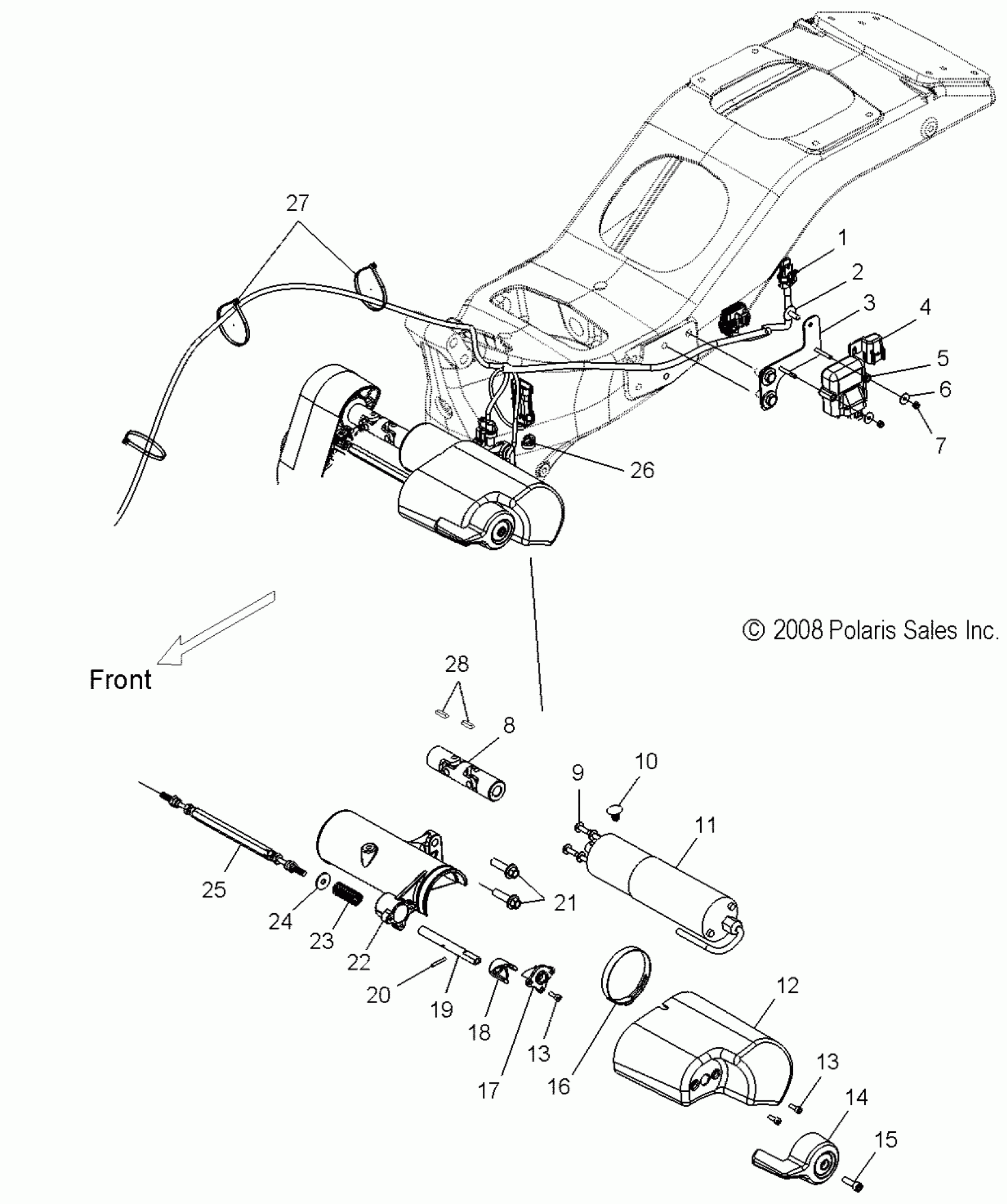

Polaris VISION ALL OPTIONS (R03) - V16SW36 DRIVE TRAIN, REVERSE DRIVE CONTROL and MOTOR (INTL) - V16SW36 (INTL) (49VICRVSDRVMOTOR09VN) Diagram

#

Description
Price

1

HARNESS, REVERSE

2410985

Unavailable

2

FASTENER, PANEL

7670076

$7.94

3

BRACKET, RDM MODULE, BLACK

1016618-067

Unavailable

4

COVER-FUSEHOLDER

4012260

$10.51

5

MODULE, REVERSE

4012018

Unavailable

6

WASHER, FLAT

7556477

Unavailable

7

NUT, NYLOK

7547126

$3.48

8

JOINT, UNIVERSAL, DBL

3234837

$279.99

9

SCREW

7518570

$3.97

10

CLIP-PLASTIC DART, NYLON

7670088

$1.59

11

MOTOR, GEAR, 12V

4012012

$1,119.99

12

COVER, REVERSE MOTOR

5437415

Unavailable

13

SCREW

7517797

$5.22

13

SCREW

7517797

$5.22

14

LEVER, REVERSE

5437416

$36.41

15

SCREW

7517305

$5.22

16

CLAMP, BAND

7081567

Unavailable

17

RAMP, RDM ACTUATOR, OUTER

5136472

$46.08

18

RAMP, RDM ACTUATOR, INNER

5136471

Unavailable

19

SHAFT, REVERSE LEVER

5138156

Unavailable

20

PIN, RDM ACTUATOR

7661954

$53.17

21

SCREW

7517696

$6.10

22

MOUNT, REVERSE MOTOR

5136289

$114.99

23

SPRING, RDM ACTUATOR

7043423

$49.99

24

WASHER

7556054

$11.33

25

ASM., REVERSE LINKAGE

1016410

$107.14

26

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

KEY

7710623

$4.84
