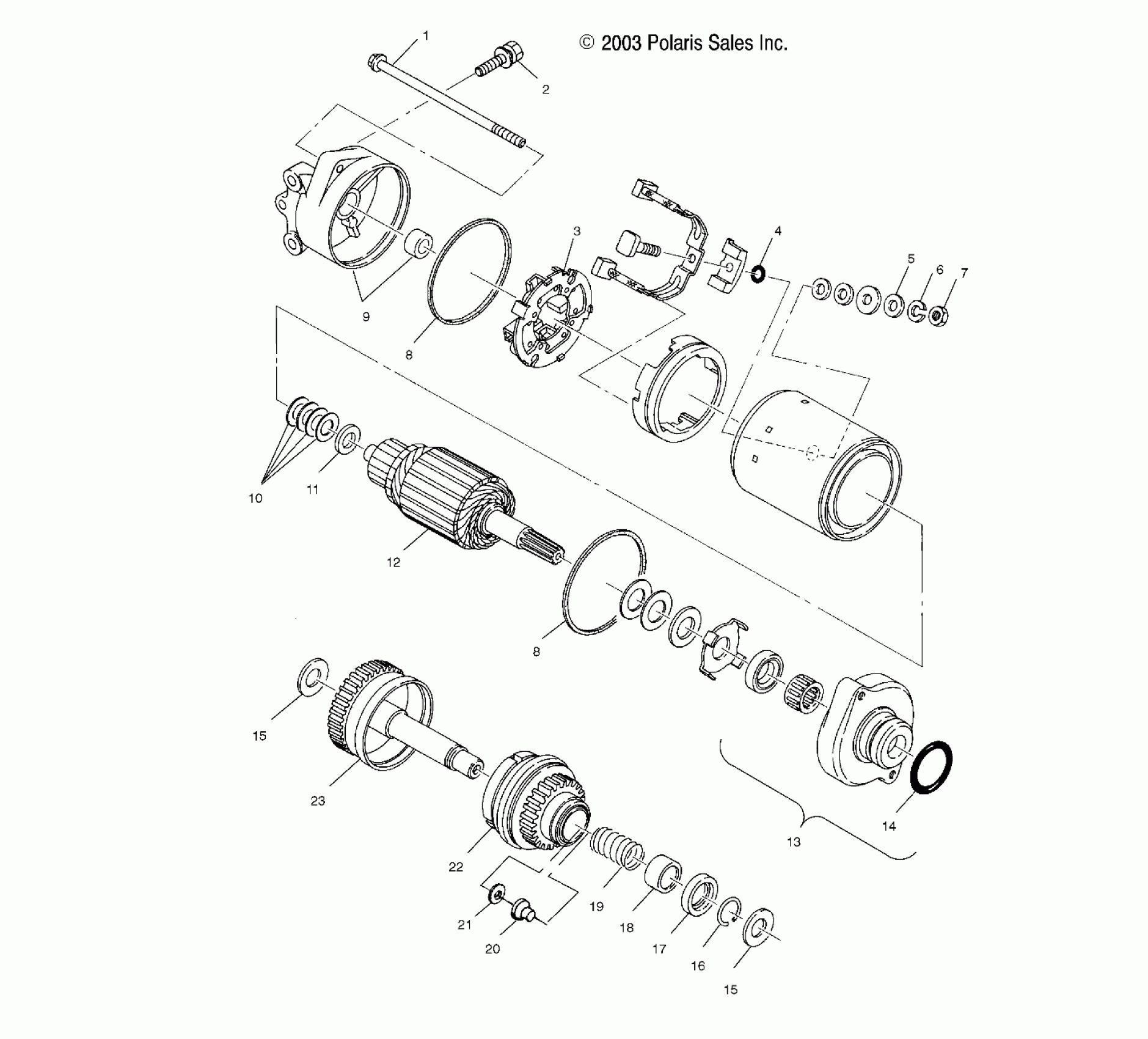

Polaris VIRAGE - W045197DA/IA STARTING MOTOR - W045197DA/IA (4990499049C09) Diagram

#

Description

Price

-

Asm., Bendix [Incl. 15-23](If built after 10/15/03)

4010418

Unavailable

-

Asm., Bendix [Incl. 15-23](If built before 10/15/03)

4060119

Unavailable

-

Asm., Brush [Incl. 3-7]

3240115

Unavailable

-

Starter, Long Stud

4010675

Unavailable

1

Bolt, Through

3240113

Unavailable

2

Screw

7516807

Unavailable

3

Spring, Brush

3240111

Unavailable

4

O-RING

3084408

Unavailable

5

Washer

3240119

Unavailable

6

Washer, Spring

3240117

Unavailable

7

Nut

3240116

Unavailable

8

RING, RUBBER

3084405

Unavailable

8

RING, RUBBER

3084405

Unavailable

9

Asm., Rear Bracket

3240207

Unavailable

10

Washer, Thrust

3240118

Unavailable

11

Washer, Thrust

3240112

Unavailable

12

Asm., Armature

3240205

Unavailable

13

Asm., Front Bracket

3240206

Unavailable

14

O-Ring

3240114

$5.59

15

Washer, Gearshaft

3083737

Unavailable

15

Washer, Gearshaft

3083737

Unavailable

16

Ring, Snap

3240126

Unavailable

17

Stopper

3240125

Unavailable

18

Cover

3240123

Unavailable

19

Spring

7041457

Unavailable

20

Bushing, Flanged

3574214

Unavailable

21

Washer, Thrust

7555908

$3.17

22

Asm., Gear

3240122

Unavailable

23

Asm., Gear [Incl. 15-22]

3240120

Unavailable
