- VIRAGE - W045197DA/IA
REVERSE - W045197DA/IA (4990499049B03)

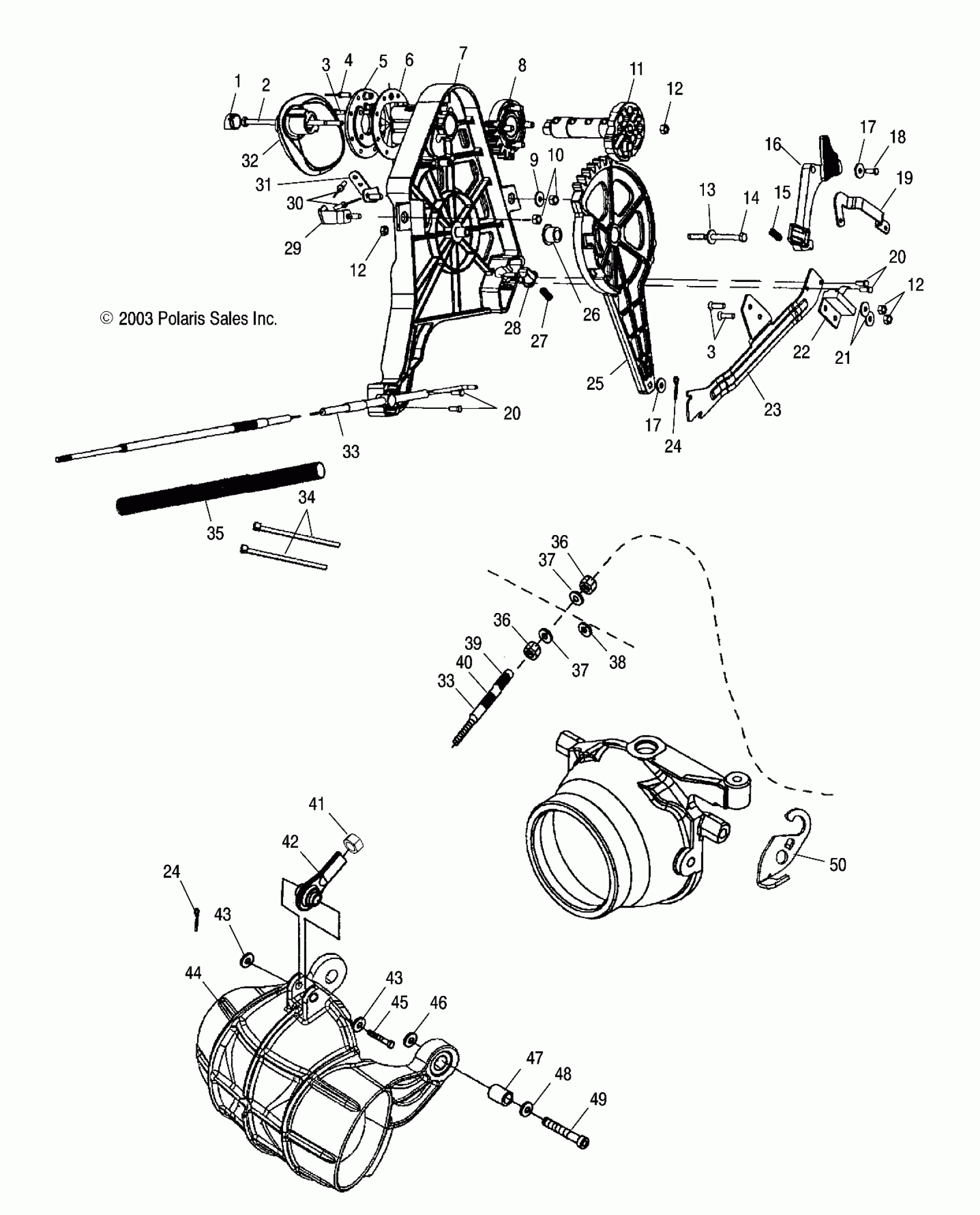

Polaris VIRAGE - W045197DA/IA REVERSE - W045197DA/IA (4990499049B03) Diagram
#
1
Cap, Reverse Handle
5433677-070
Unavailable
2
SCR-M6X1.00X145-HX/FL-SS
7516816
$23.99
3
Screw
7517669
Unavailable
4
Rivet
7661040
Unavailable
5
Flange, Base, Reverse
5434066
Unavailable
6
Gasket, Reverse
5811982
Unavailable
7
Plate, Base
5434973
Unavailable
8
Pinion, Reverse
5434067
Unavailable
9
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
10
Nut
7546705
$4.79
11
Shaft, Cam, Reverse
5433955
Unavailable
12
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
12
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
12
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
13
Washer, Flat
7555856
Unavailable
14
Screw
7516806
Unavailable
15
Spring, Compression
7041888
$13.19
16
Arm, Reverse Lock
5433676
Unavailable
17
Washer, Flat
7555837
Unavailable
17
Washer, Flat
7555837
Unavailable
18
Screw
7511882
Unavailable
19
Bracket, Arm Lock Support
5412058
Unavailable
20
Screw
7512049
Unavailable
20
Screw
7512049
Unavailable
21
Washer, Flat
7555857
Unavailable
22
Switch, Limit, Sealed
2410241
Unavailable
23
Bracket, Reverse, Support
5245180
Unavailable
24
Pin, Cotter
7661010
$1.49
24
Pin, Cotter
7661010
$1.49
25
Arm, Reverse
5433871
Unavailable
26
Bushing
5433647
Unavailable
27
Spring, Compression
7041995
Unavailable
28
Plunger, Detent, Reverse
5433673
Unavailable
29
Bracket, Reverse Plate, Rear w/Stud
5245634
Unavailable
30
Rivet
7661041
Unavailable
31
Bracket, Reverse Plate, Forward w/Stud
5245635
Unavailable
32
Handle, Reverse
5433605-070
Unavailable
33
Cable, Reverse
7081090
Unavailable
33
Cable, Reverse
7081090
Unavailable
34
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
35
Conduit, Convoluted
4010051-100
$13.75
36
Nut, Jam
7542528
Unavailable
36
Nut, Jam
7542528
Unavailable
37
Washer, Flat
7556232
Unavailable
37
Washer, Flat
7556232
Unavailable
38
Washer, Lock
7571625
Unavailable
39
Seal, Rod
5411818
Unavailable
40
Seal, Rod
5412206
Unavailable
41
Nut
7542150
Unavailable
42
Rod End
7061062
Unavailable
43
Washer, Flat
7555839
Unavailable
43
Washer, Flat
7555839
Unavailable
44
Gate, Reverse, Directional (If built before 11/10/03)
5434049
Unavailable
44
Gate, Reverse, Directional, w/Stop (If built after 11/10/03)
5435313
Unavailable
45
Pin, Clevis
7661117
Unavailable
46
Washer
7555866
Unavailable
47
Collar
5020683
Unavailable
48
Washer, Flat
7555874
$2.39
49
Screw
7515368
Unavailable
50
Bracket, Reverse Stop
5434272
Unavailable
